FENDT IDEAL Series Workshop Service Manual

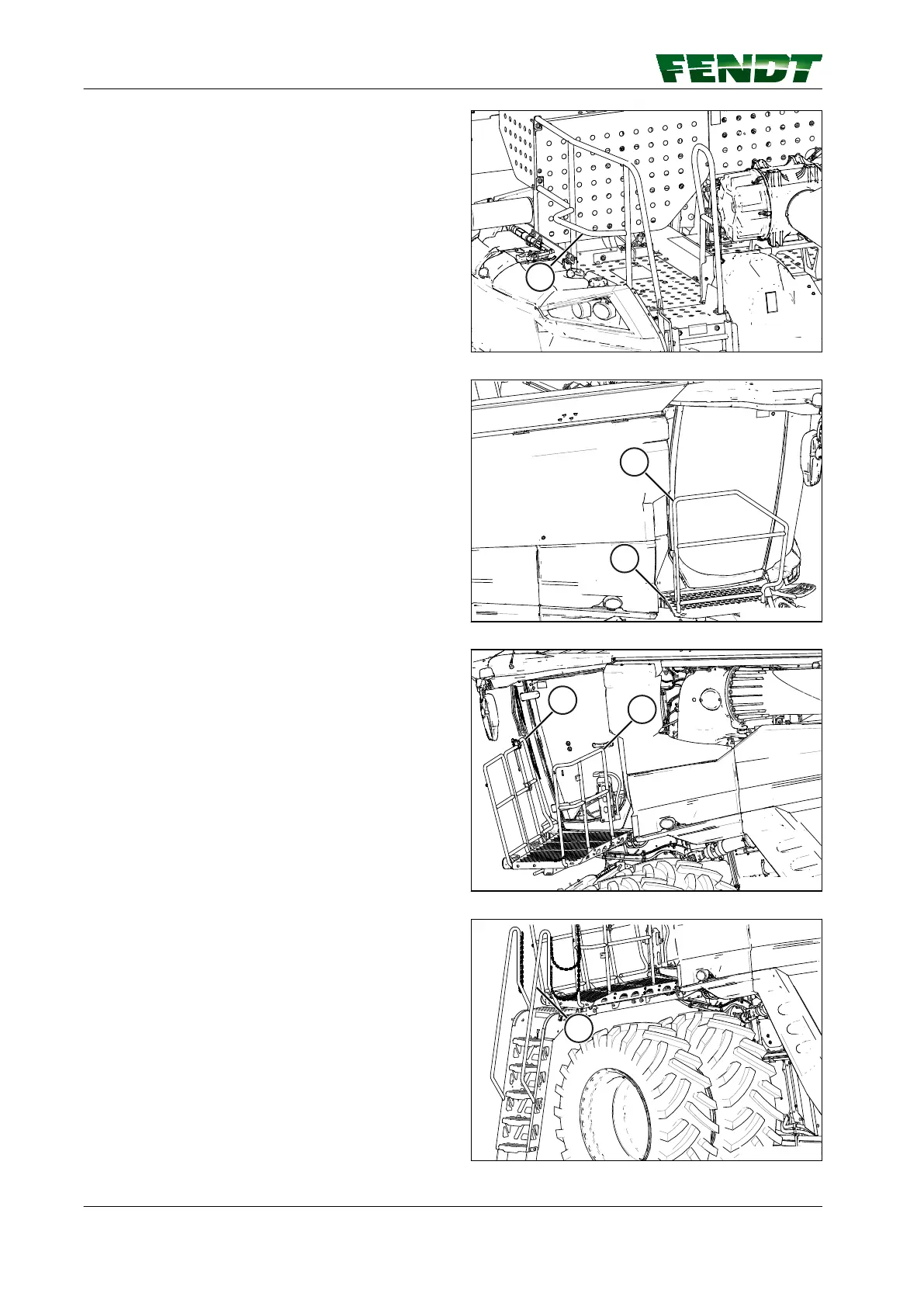

A fixed fall protection rail (1) is found at the rear of
the machine.
1
HVJHE0110180701
Original art: /s/Creo Illustrate/Images/Chris/Opus/IDEAL/IDEAL fall protection rails rear rail.svg
GUID-4FC62767-F3AC-4D05-BBF2-8DEE7F4C86BB-low.svg [Low]
Fig. 70
The right side of the cab has a fixed fall protection
rail (1) attached to the platform (2).
1
2
HVJHE0110180801
Original art: /s/Creo Illustrate/Images/Chris/Opus/IDEAL/IDEAL fall protection rails right side cab platform rail.svg
GUID-103FD1D8-307E-4125-8CD4-F12BC3221DEE-low.svg [Low]
Fig. 71
The left side of the cab has a fixed fall protection
rail (1) attached to the platform.
To access the windscreen, there is a rail (2) that
moves.
Lift the top of the rail and push toward the front of
the machine. The gate will automatically lock at
90°. To put the rail in its original position, lift up and
move it toward the cab.
1
2
HVJHE0110180901
Original art: /s/Creo Illustrate/Images/Chris/Opus/IDEAL/IDEAL fall protection rails cab entry platform rail.svg
GUID-B0AFF213-A373-4D8E-8832-DC9A8468B1A5-low.svg [Low]
Fig. 72
There are fall protection rails (1) on each side of
the ladder.
1
HVJHE0110181001
Original art: /s/Creo Illustrate/Images/Chris/Opus/IDEAL/IDEAL fall protection rails ladder.svg
GUID-52F79676-84A4-4FB2-B75F-C420975BD133-low.svg [Low]
Fig. 73
1. General
1-52 IDEAL Series Combine
79037318C
