Sensor Designation
Tcol temperature-collector
Tcol2 temperature-collector 2
Tstb temperature-store 1 base
Tst2b temperature-store 2 base
Tst3b temperature-store 3 base
Tst4b temperature-store 4 base
T-HE temperature-heat exchanger
Tby temperature-bypass
HSE temperature-protection against legionella
Th 1-10 temperature-thermostat 1-10
T1-DT5-9 temperature- DT5-9 high
T2-DT5-9 temperature- DT5-9 low
T1-AH-HC temperature-afterheating-heating circuit
T2-AH-HC temperature-afterheating-heating circuit
HC T-FL temperature- heating cicruit flow
HC T-outdoor temperature- heating circuit outdoor
HC RTA11 heating circuit remote control
T1WMZ temperature- flow
heat quantity measurement
T2WMZ temperature- return
heat quantity measurement
WMZ flowmeter
Digital input message input
Abbreviations - sensors
Relay allocation
Sensor allocation

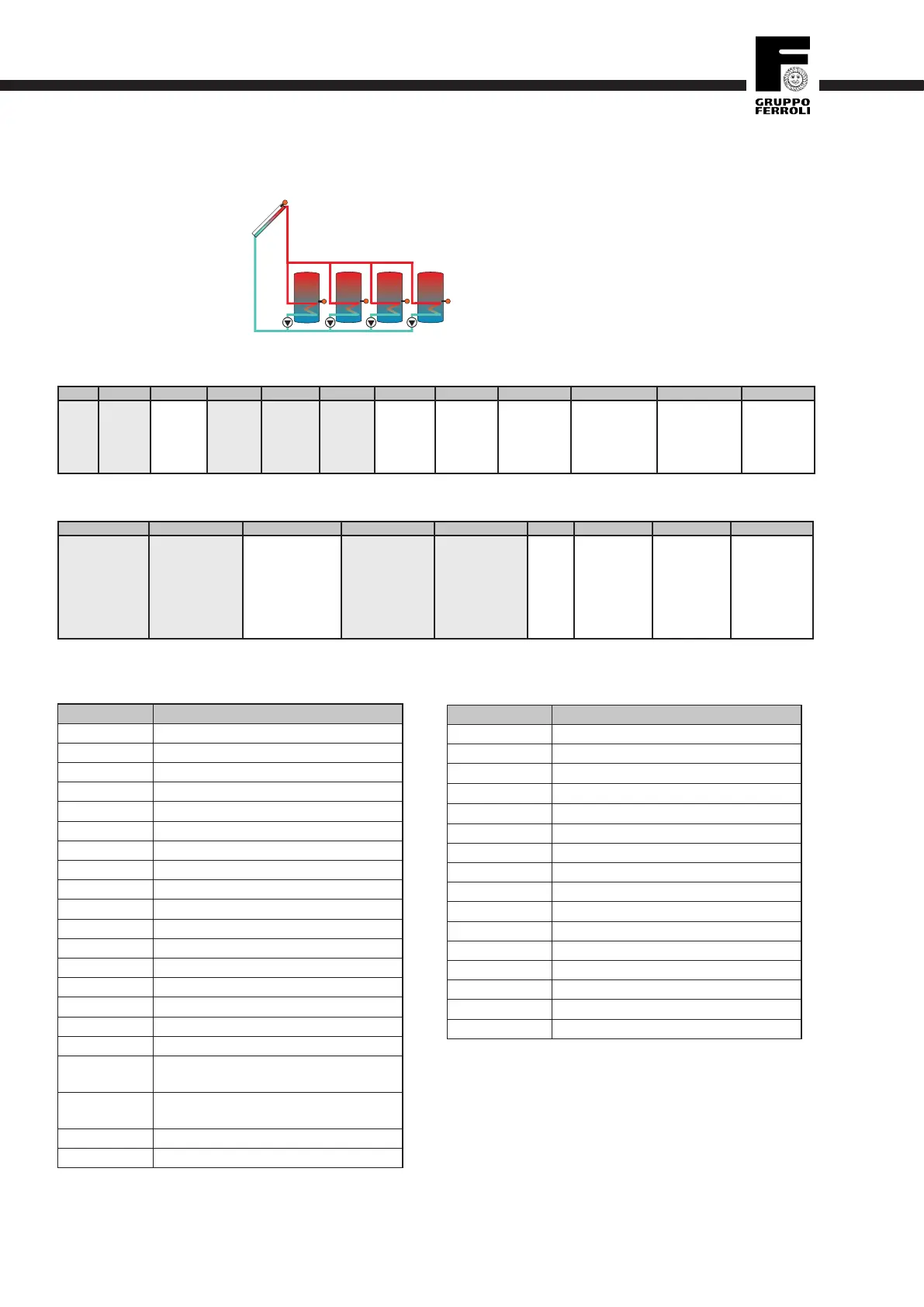

System 7 variant 2
S1
S5
S2
S4
R2
R4
S6
R1
R5
sen.1 sen.2 sen.3 sen.4 sen.5 sen.6 sen.7 sen.8 sen.9 sen.10 sen.11 sen.12
Tcol
Tstb
HSE
Th 1
T1-DT5
Tby
T-HE
Tst2b
Th 2
T2-DT5
Tst3b Tst4b
Th 5
T1-DT7
Th 6
T2-DT7
HC Tst2
Th 7
T1-DT8
T1WMZ1
HC T-FL
Th 8
T2-DT8
T2WMZ1
HC RTA11
Th 9
T1-DT9
T1WMZ2
HC T-outdoor
Th 10
T2-DT9
T2WMZ2
HC Tst1
relay 1 relay 2 relay 3 relay 4 relay 5 relay 6 relay 7 relay 8 relay 9
solar pump st.1 solar pump st.2
func.bl. 1
HSE
bypass
par. relay
ext. HE
HC-afterheat.
(HC-pump)
solar pump st.3 solar pump st.4 ---
func.bl. 3
HC-Mi open
func.bl. 4
HC-Mi closed
func.bl. 5
message rel.
AH suppress.
HC-pump
(HC-afterheat.)
Relay Designation
solar pump 1-2 solar pump collector field 1-2
2-PV st 1-4 2-port valve store 1-4
3-PV st 1-2 3-port valve store 1-2
func.bl. 1-5
function block 1-5
HSE protection against legionella
bypass bypass-control
cooling func. cooling function
store load. store loading
par. relay parallel relay
ext. WT external heat exchanger
message rel. message relay
AH suppress. afterheating suppression
HC-afterheat. heating circuit afterheating
HC-pump heating circuit pump
HC-Mi open heating circuit mixer open
HC-Mi closed heating circuit mixer closed
Abbreviations - relays
