3. Commissioning
The controller is partially freely programmable. For special
applications, the relays and the corresponding sensors are
assigned in steps.
7 basic systems with different hydraulic variants each are
pre-programmed.
1. Adjust the basic system; sensors and relays will be allo-
cated automatically (see 3.2 and 4.1).
2. Activate the internal heating circuit module if needed (see
4.2.1). If the corresponding relays are intended for other
purposes,connecttheexternalheatingmoduleHKM.
3. Activate further options (bypass, external heat exchanger
etc. see 4.1 and 4.2.)
4. Select free function blocks for further applications (re-
turn preheating, use of further heat sources; see 3.3 and
4.2.)
5. Finally, after every step, carry out special adjustments
(switching conditions and limits; see 4.1 and 4.2).
6. Up to 2 heat quantity measurement functions (see 4.3)
and other functions such as reports or chimney sweeper
can be activated.
The controller can be adjusted in steps (see 3.4.) All func-
tions, options and menu items are described in detail in
chapter 4.
3.1 Commissioning the controller
3.2 Basic systems and hydraulic variants
The controller is preprogrammed for 7 basic systems. The
selection depends on the number of heat sources (collec-
tor fields) and heat sinks (stores, pool). Factory setting is
system 1.
A solar system with a store charging in layers is implemen-
ted as a 2-store system
(store top = store 1; store bottom = store 2).

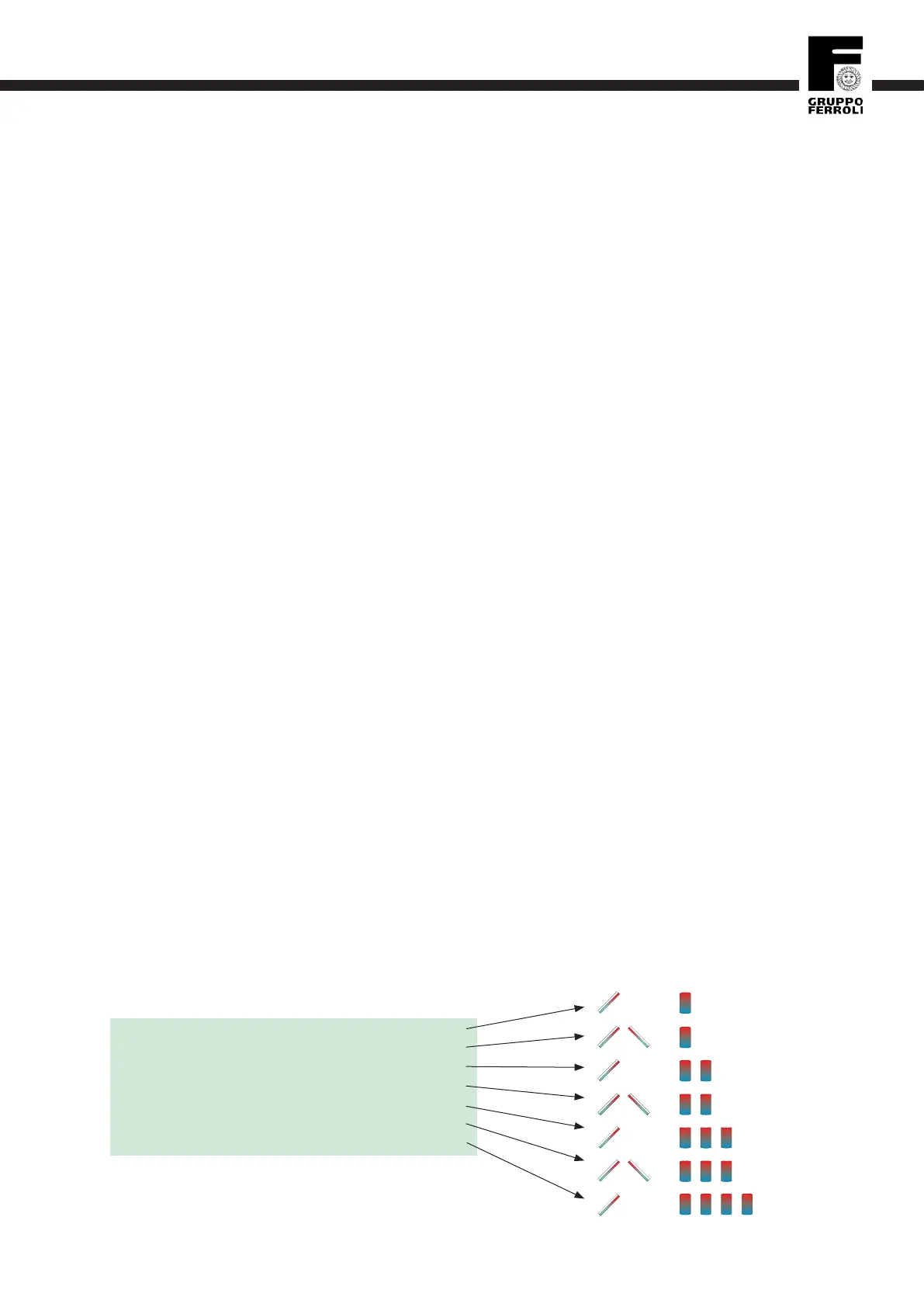

System 1: 1 collector field - 1 store
System 2: east/west collectors - 1 store
System 3: 1 collector field - 2 stores
System 4: east/west collectors - 2 stores
System 5: 1 collector field - 3 stores
System 6: east/west collectors - 3 stores
System 7: 1 collector - 4 stores
