DGP(L)−...−B
Festo DGP(L)−...−B 0609g English
26
Work loads with their own guide (only DGP−... as cylinder; see chptr Application):
1. Make sure that there is a gap between the
slide and the work load.
Driver type FKP−... can be used for this
purpose.
2. Fasten driver type FKP to the driver of the
DGP−...:
for DGP−8/12/18−... as per Fig.9.
for DGP−80−... as per
Fig.10 and Fig.11.
for DGP−25/32/40/50/63 as per Fig.12.

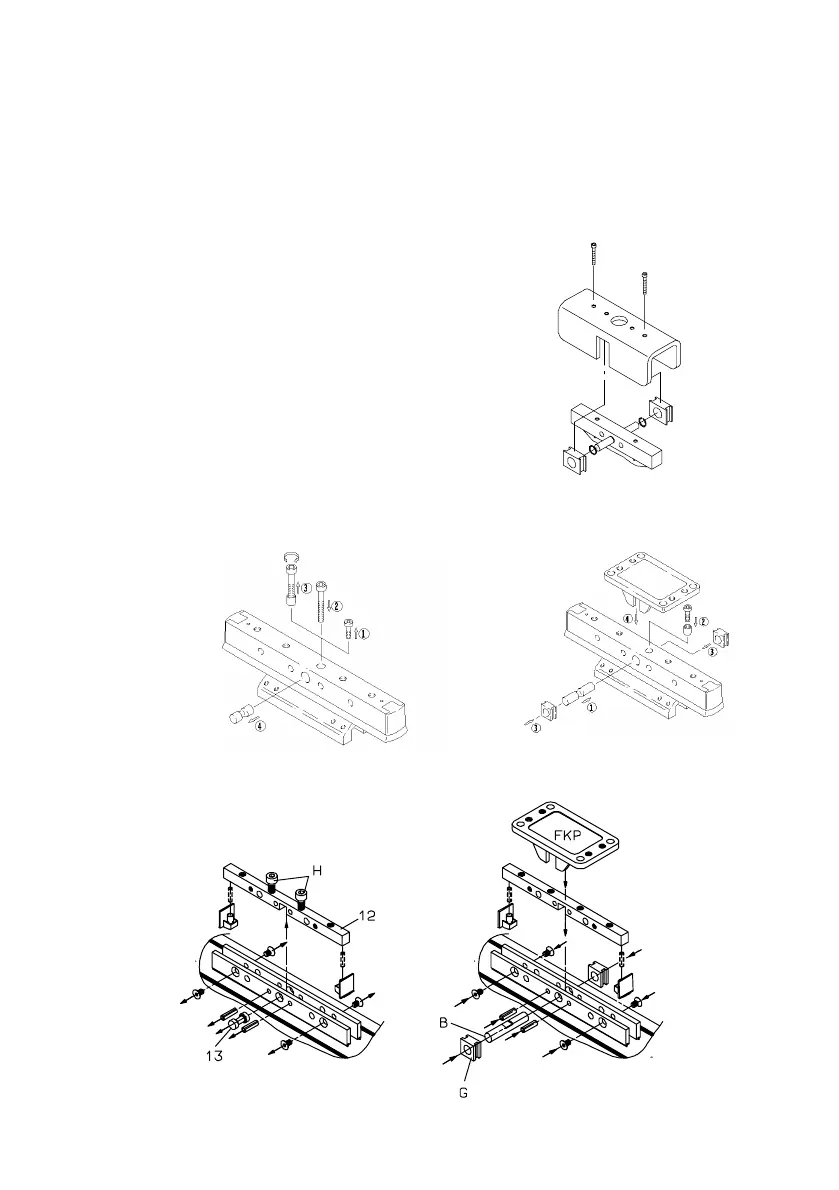

Fig.9: DGP−8/12/18
Fig.10: DGP−80 (1) Fig.11: DGP−80 (2)
FKP
Fig.12: DGP−25...63
DGP−25/32: 4 Nm
DGP−40/50/63: 8 Nm
