5. Maintenance and conversion
5−8
Festo P.BE−MPA−EN en 0910d

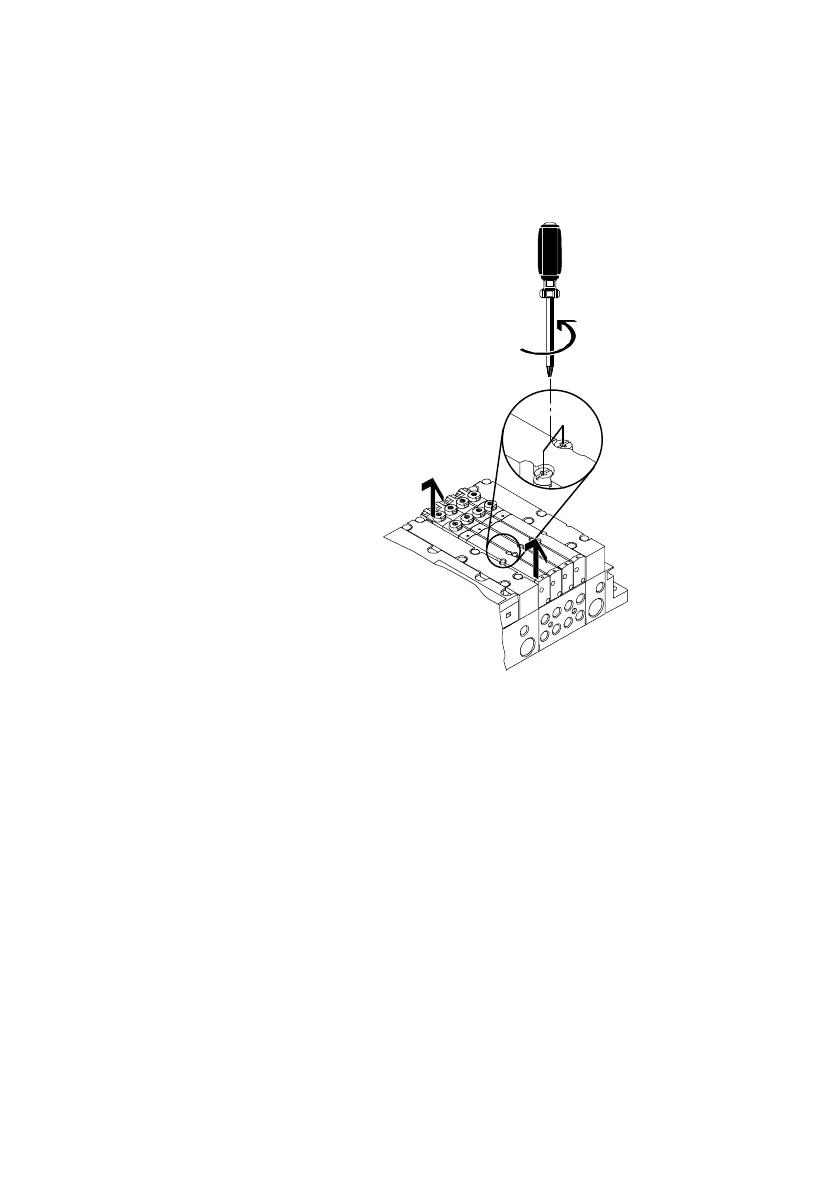

Fig.5/1: Removing valves or blanking plates
Mounting Proceed as follows:
1. Make sure the seal is not damaged.
2. Replace seals if they are damaged.
3. Make sure that the cord seal between the sub−base and
components is in the correct position: The cord seal must
sit in the component cut−outs.
