5. Maintenance and conversion
5−9
Festo P.BE−MPA−EN en 0910d
1 Fastening screws
of the valve or
blanking plate
2 Valve or blanking
plate
3 Cord seal
4 Electronics
module
5 Sub−base
1
2
3
4
5

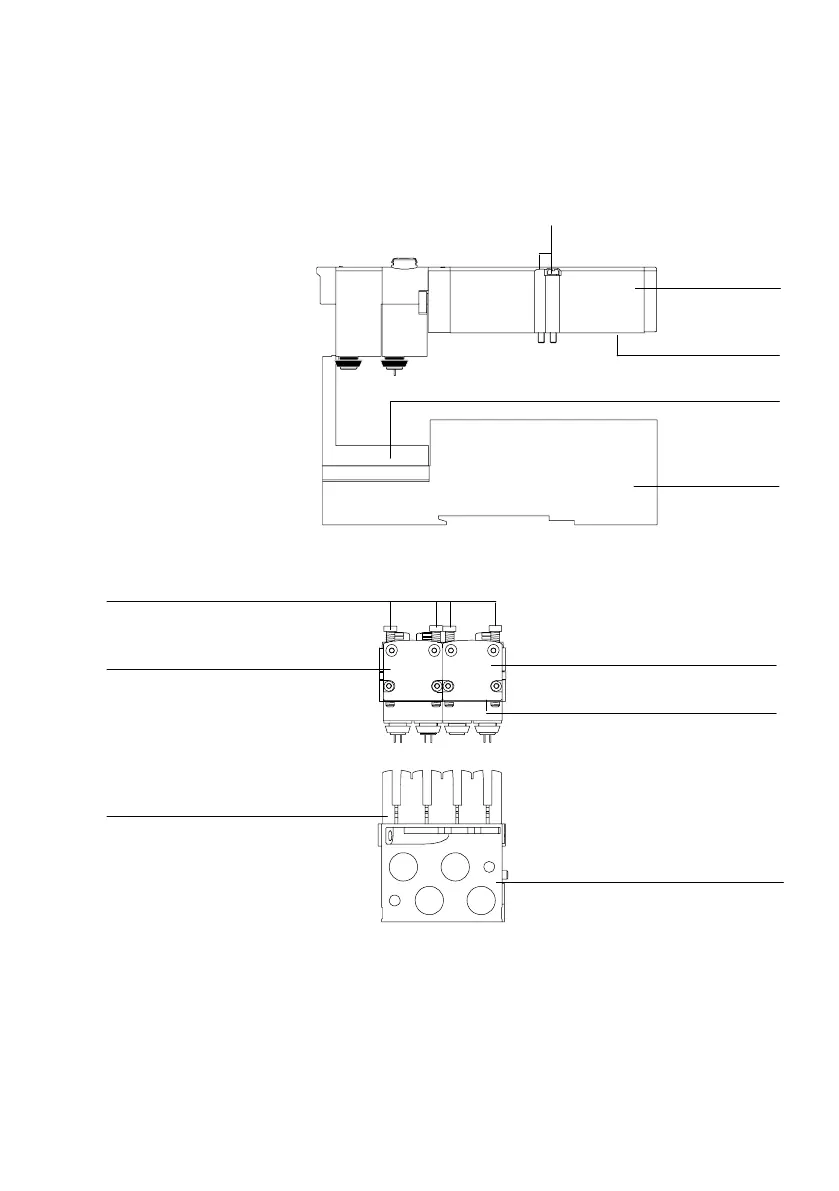

Fig.5/2: Mounting valve or blanking plate (MPA1)
2
1
2
3
4
5
1 Fastening screws of the component
2 Valve or blanking plate
3 Cord seal
4 Sub−base
5 Electronics module
Fig.5/3: Mounting valves or blanking plates (MPA2)
