5. Maintenance and conversion
5−15
Festo P.BE−MPA−EN en 0910d
The following electronics modules are available:
Type
Description of the electronics module
VMPA1−FB−EMG−8 4 valve positions / 8 outputs
with separate circuits
VMPA1−FB−EMG−D2−8 4 valve positions / 8 outputs
with separate circuits
with diagnostic functions D2
VMPA1−FB...
VMPA1−FB−EMS−8 4 valve positions / 8 outputs
with common circuit
VMPA1−FB−EMS−D2−8 4 valve positions / 8 outputs
with common circuit
with diagnostic functions D2
VMPA2−FB−EMG−4 2 valve positions / 4 outputs
with separate circuits
VMPA2−FB−EMG−D2−4 2 valve positions / 4 outputs
with separate circuits
with diagnostic functions D2
VMPA2−FB...
VMPA2−FB−EMS−4 2 valve positions / 4 outputs
with common circuit
VMPA2−FB−EMS−D2−4 2 valve positions / 4 outputs
with common circuit
with diagnostic functions D2
Outputs correspond to solenoid coils

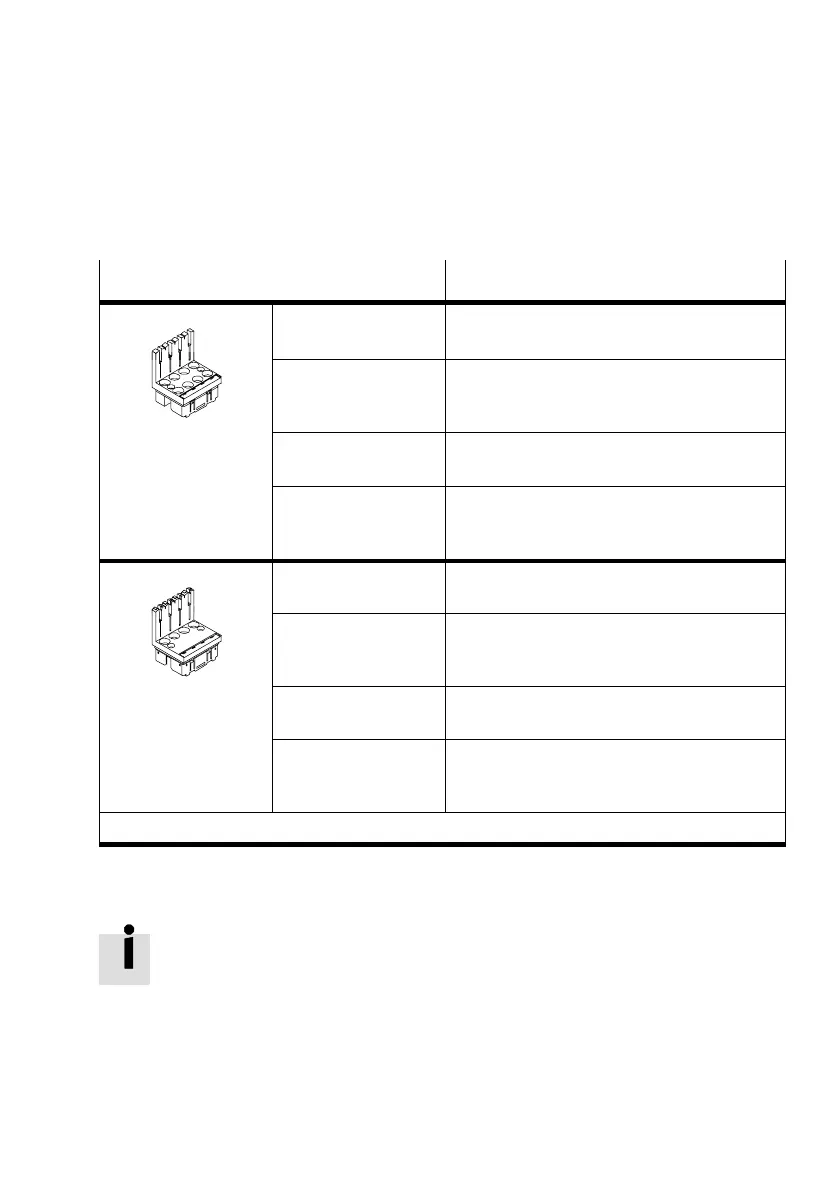

Tab.5/3: Electronics modules for MPA−S valve terminal with CPX terminal
Additional information on MPA electronics modules can be
found in the package insert and in the corresponding MPA−...
electronics description.
