A. Technical appendix
A−9
Festo P.BE−MPA−EN en 0910d
1 Pressure of the
external pilot air
supply at pilot
connection
(12/14) [bar]
2 Work range for
valves with
external pilot air
supply
3 Operating
pressure at port
(1) [bar]

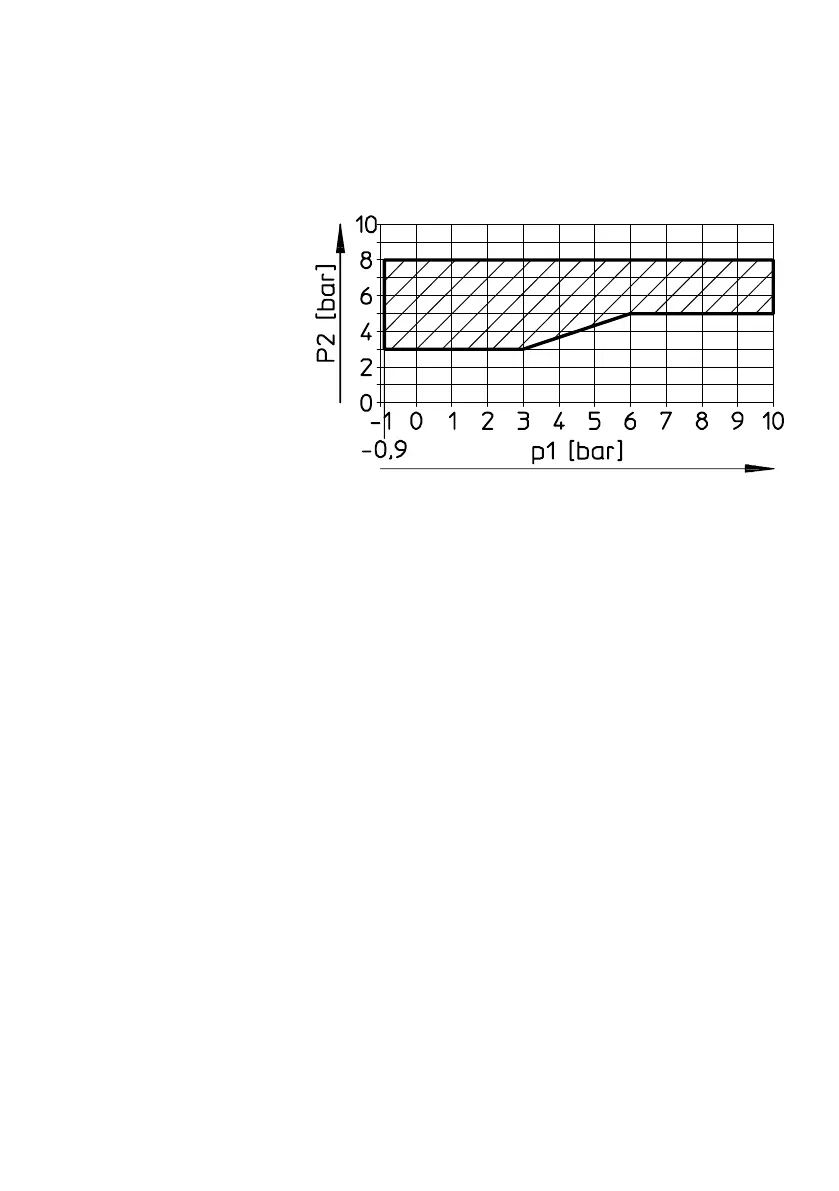

Fig.A/3: Diagram: Required pilot pressure relate d to the operating pressure with external
pilot air supply and using valve sub−ba s e s with ident. codes M, J, B, E, G, W and X
