Festo MPA Series - Page 182

A. Technical appendix
A−8
Festo P.BE−MPA−EN en 0910d
1 Pressure of the
external pilot air
supply at pilot
connection
(12/14) [bar]
2 Work range for
valves with
external pilot air
supply
3 Operating
pressure at port
(1) [bar]

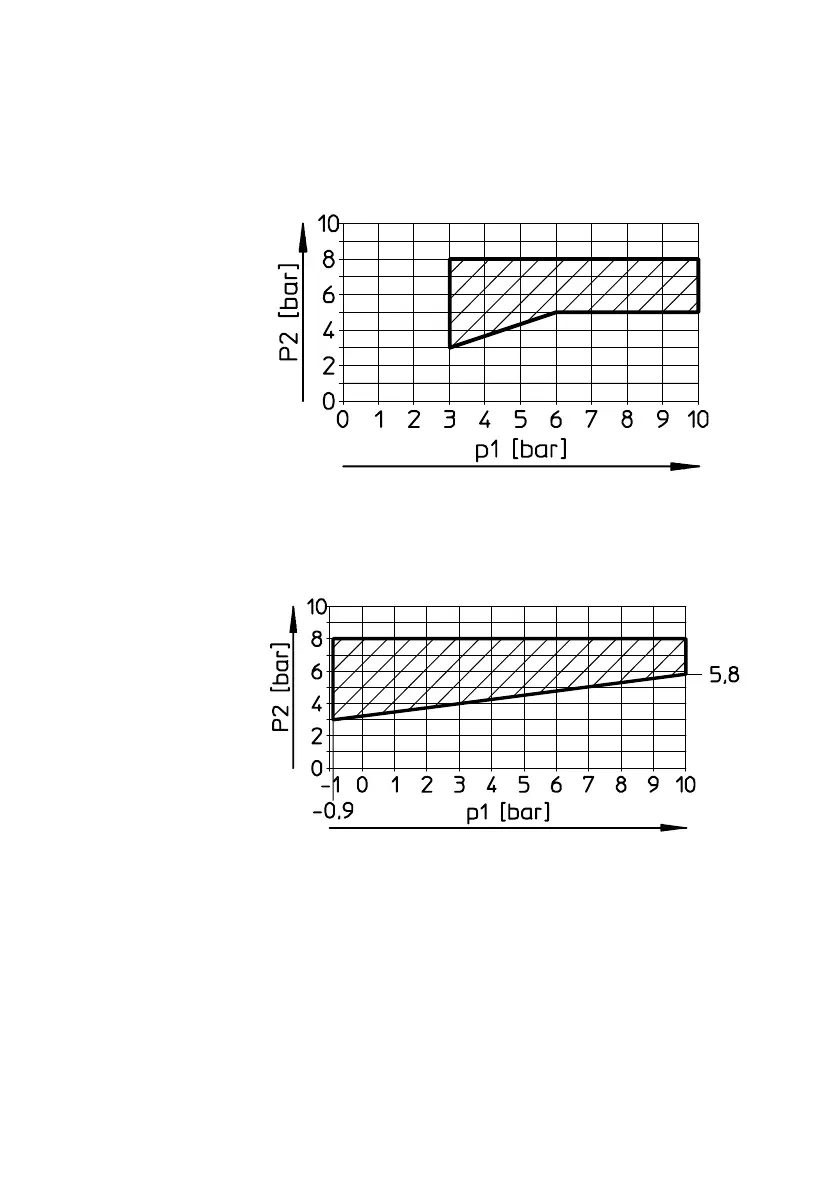

Fig.A/1: Diagram: Required pilot pressure relate d to the operating pressure with external
pilot air supply and use of valve sub− ba s e s with ident. codes D, H, I, K and N
1 Pressure of the
external pilot air
supply at pilot
connection
(12/14) [bar]
2 Work range for
valves with
external pilot air
supply
3 Operating
pressure at port
(1) [bar]
Fig.A/2: Diagram: Required pilot pressure relative to operating pressure with external
pilot air supply and using valve sub−bases with ident. codes DS, HS, KS and NS
