Pressure regulator plates
2
4
14
51 312

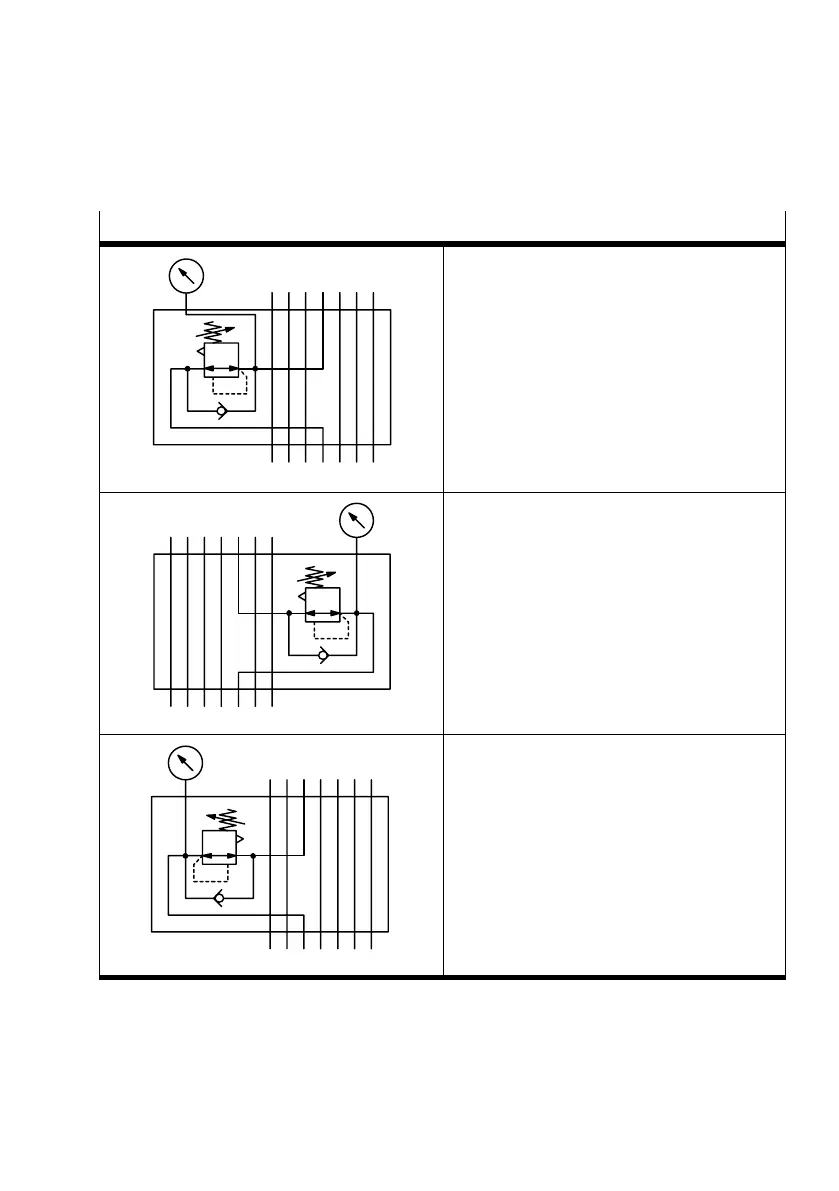

Pressure regulator plate for port (1) (P regulator)
Ident. code: PF or PA
Function:
 Regulates the operating pressure in duct (1)
upstream of the directional control valve
2
4
14
51312
Pressure regulator plate for port 2 (B regulator)
Ident. code: PH or PC
Function:
 Regulates the operating pressure in
channel(2) downstream of the directional
control valve.
2
4
14
51312
Pressure regulator plate for port 4 (A regulator)
Ident. code: PG or PB
Function:
 Regulates the operating pressure in
channel(4) downstream of the directional
control valve.
