B. Supplementary component summary
B−10
Festo P.BE−MPA−EN en 0910d

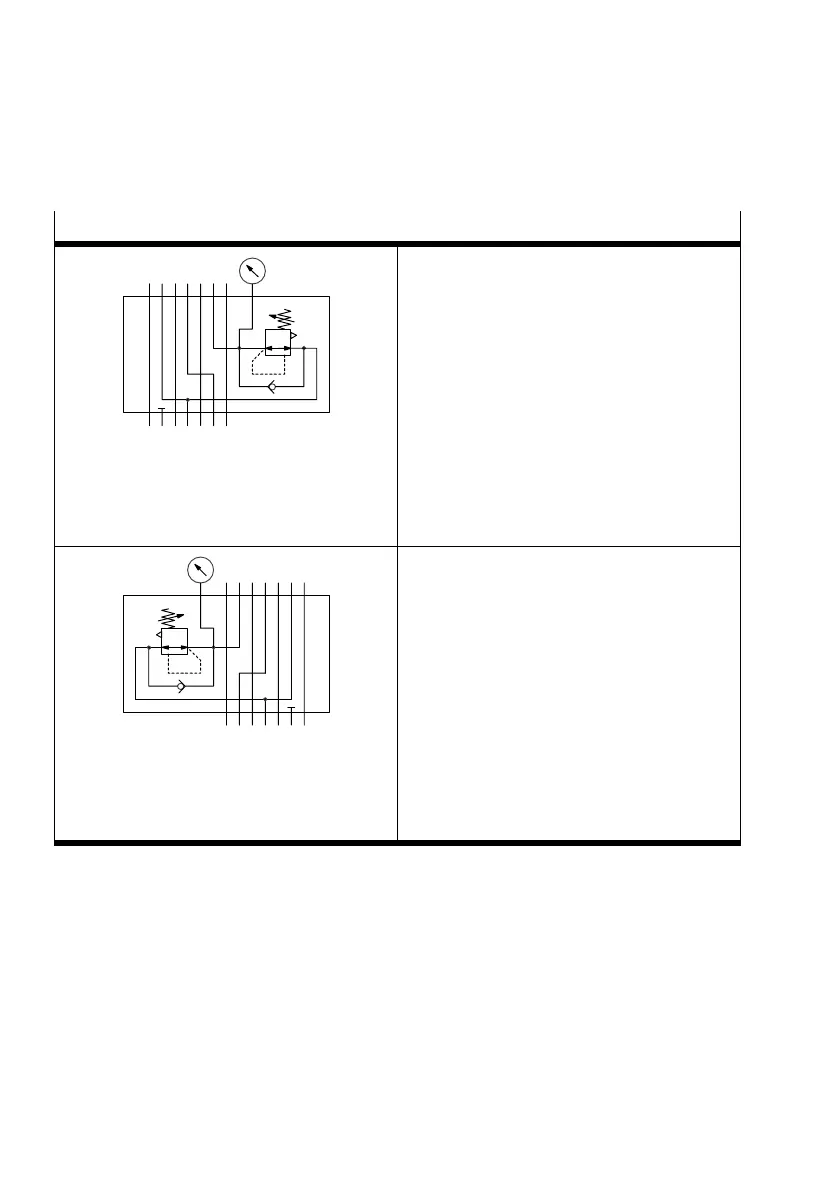

Pressure regulator plates
2
4
14
51312
Pressure regulator plate for port (2), reversible
(B regulator)
Ident. code: PN or PL
Function:
 Channels the operating pressure upstream of
the directional control valve from channel (1)
to channels (3) and (5)
 Regulates the pressure in chanel (3)
upstream of the directional control valve.
 Conducts the exhaust from channel 1 to
channel (3) after the directional control valve
Note:
Combinations with 2x2/2−way valves
(Ident.codes D and I) and 2x3/2−way valves
(ident. codes H, K and N) are not permitted.
2
4
14
51312
Pressure regulator plate for port (4), reversible
(A regulator)
Ident. code: PM or PK
Function:
 Conducts the operating pressure from
channel1 to channels (5) and (3)
 Regulates the pressure in channel (3)
upstream of the directional control valve.
 Channels the exhaust air downstream of the
directional control valve from
channel(1)tochannel (5)
Note:
Combinations with 2x2/2−way valves
(Ident.codes D and I) and 2x3/2−way valves
(ident. codes H, K and N) are not permitted.
Tab.B/5: Pressure regulator plates for regulating outputs (1), (2) and (4)
