B. Supplementary component summary
B−14
Festo P.BE−MPA−EN en 0910d
Mounting Proceed as follows:
1. Make sure the seals are not damaged. Replace the seals if
they are damaged.
2. Place the seal onto the guide pins of the pneumatic
interface.
1 Guide pins
2 Pneumatic
manifold blocks
3 Seal
4 Pneumatic
interface
1
234 1

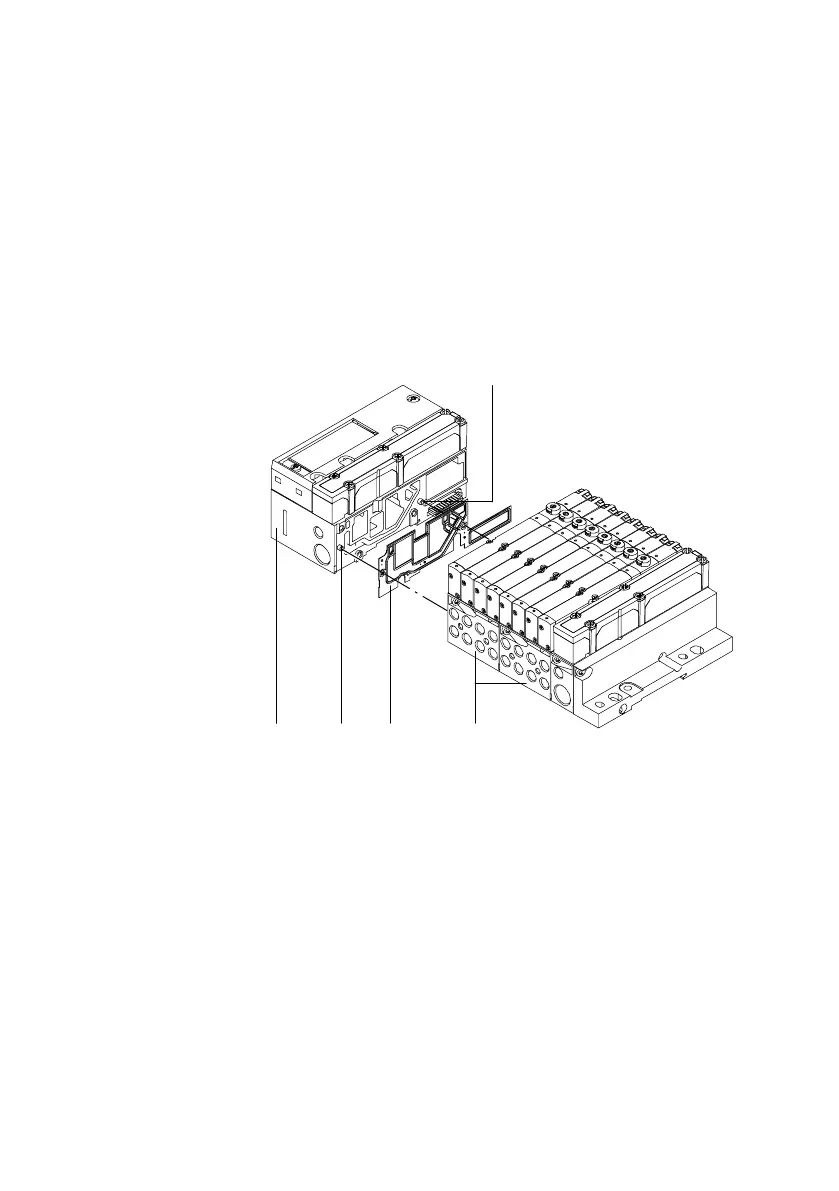

Fig.B/3: Mounting the MPA−S valve terminal to the pneumatic interface
3. Push the pneumatic interface together with the pneumatic
manifold blocks. Make sure that the seal and the
components are correctly positioned.
