4. Insert the retaining screws in the appropriate holes.
Tighten the screws in the sequence 1 2 3
(seefollowing diagram) at first slightly and then
with1.8Nm (±10%).
2
1
3

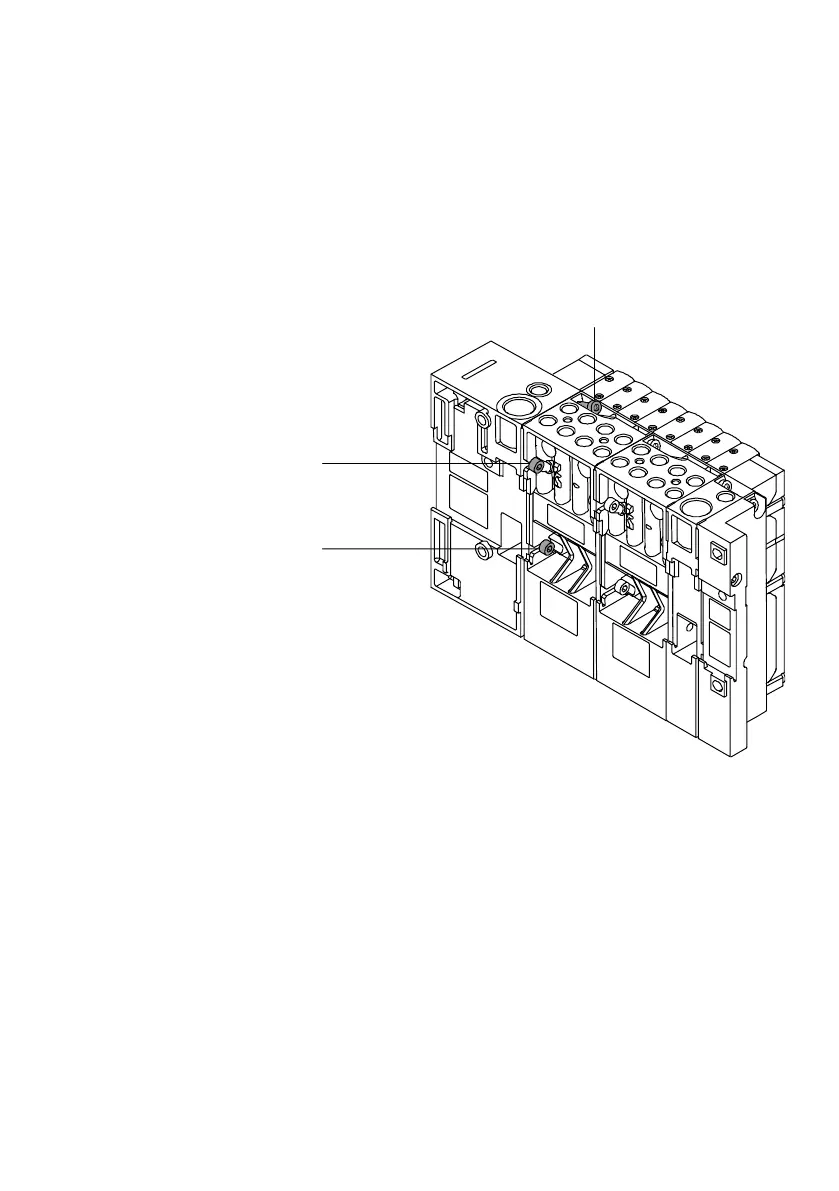

Fig.B/4: Fastening the MPA−S valve terminal to the
pneumatic interface
5. Fasten the MPA−S valve terminal onto the fastening
surface (see CPX system manual).
6. Complete the electrical and pneumatic connections of the
MPA−S valve terminal with CPX terminal. Information on
this can be found,
in the electrical section of the CPX system description
in the pneumatics section in chapter 3 of this
description
