MPA−S valve terminal with AS interface ... Numbe r of valve positions
1)
... with 4 inputs and 4 outputs of type VPMA−A SI−...−4E4A−Z
2)
... with 8 inputs and 8 outputs of type VPMA−ASI−...−8E8A−Z
3)
MPA1
4
4, 8
MPA2
2, 4
2, 4, 6 ... 8
1)
The maximum number of valve positions which can be controlled depends on the electronic module:
 VMPA1−MPM−EMM−8 and VMPA2−MPM−EMM−4 occupy 2 addresses per valve position
 VMPA1−MPM−EMM−4 and VMPA2−MPM−EMM−2 occupy 1 address per valve position
2)
A max. of 4 solenoid coils can be supplied.
3)
A max. of 8 solenoid coils can be supplied.
Tab.1/4: Number of valve locations on the MPA−S valve terminal with AS interface

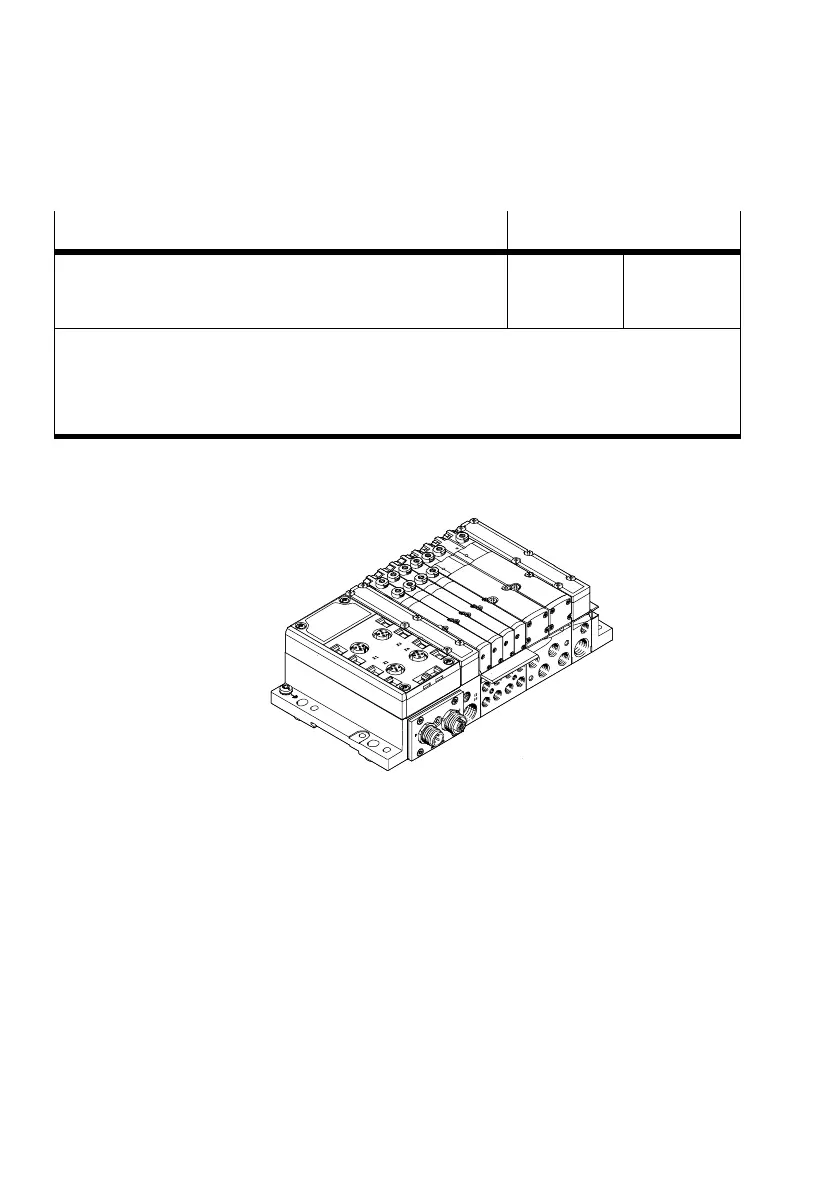

Fig.1/4: MPA−S valve terminal with AS interface
