1. Summary of components
1−34
Festo P.BE−MPA−EN en 0910d
Information on the electric connecting and display elements
of the CPX bus node can be found in the relevant electronics
manual (see system manual for your CPX terminal,
tableDescriptions of the CPX terminal").
Information on the electric connecting and display elements
of the CPI module can be found in the leaflet supplied with
the product.
Additional information on the LEDs of the electronic module
VMPA...−FB−EM...−... is provided in the MPA−... electronics
description.
Pressure sensor plate

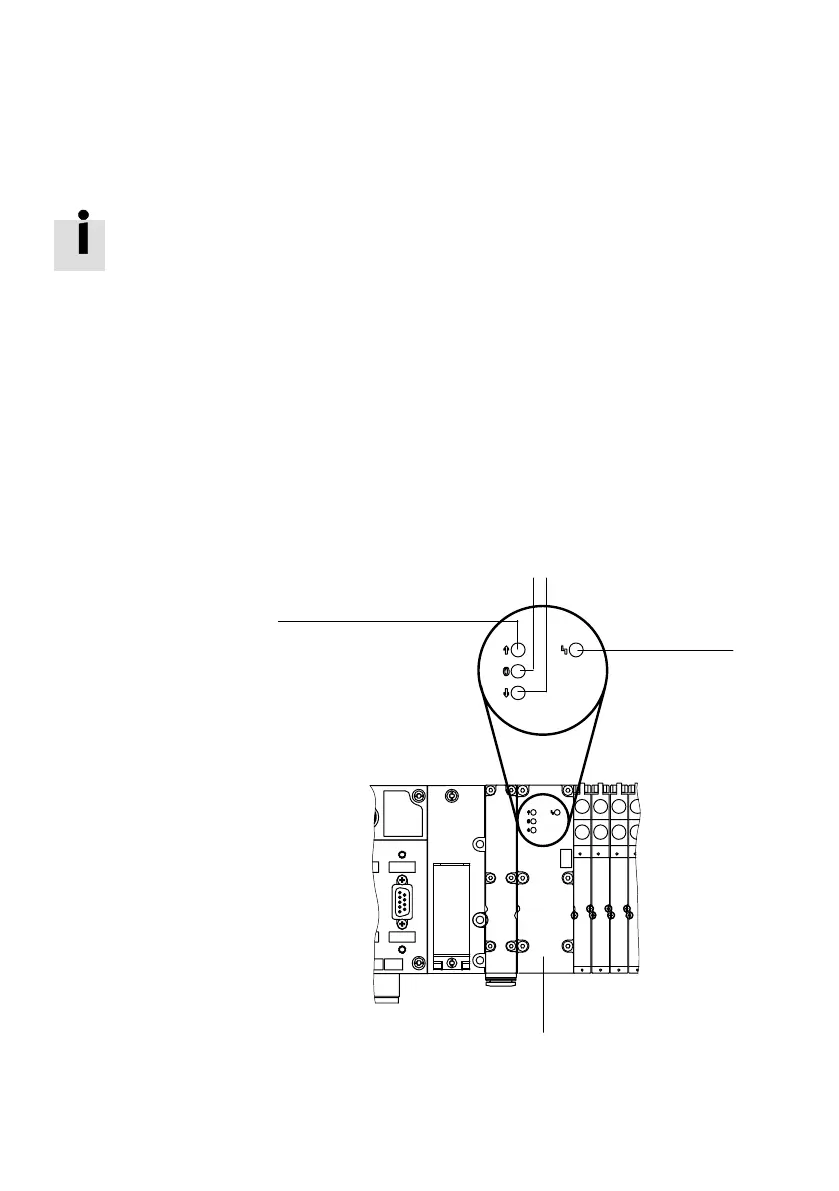

The pressure sensor plate has the following display elements:
1 Pressure sensor
plate
2 Red LED:
Pressure
exceeded
3 green LED:
Pressure
complies
4 Red LED:
Pressure
too low
5 Red LED:
Common error
display
1
2
3
4
5
Fig.1/16: Display elements of the pressure sensor plate
