2. Fitting
2−12
Festo P.BE−MPA−EN en 0910d

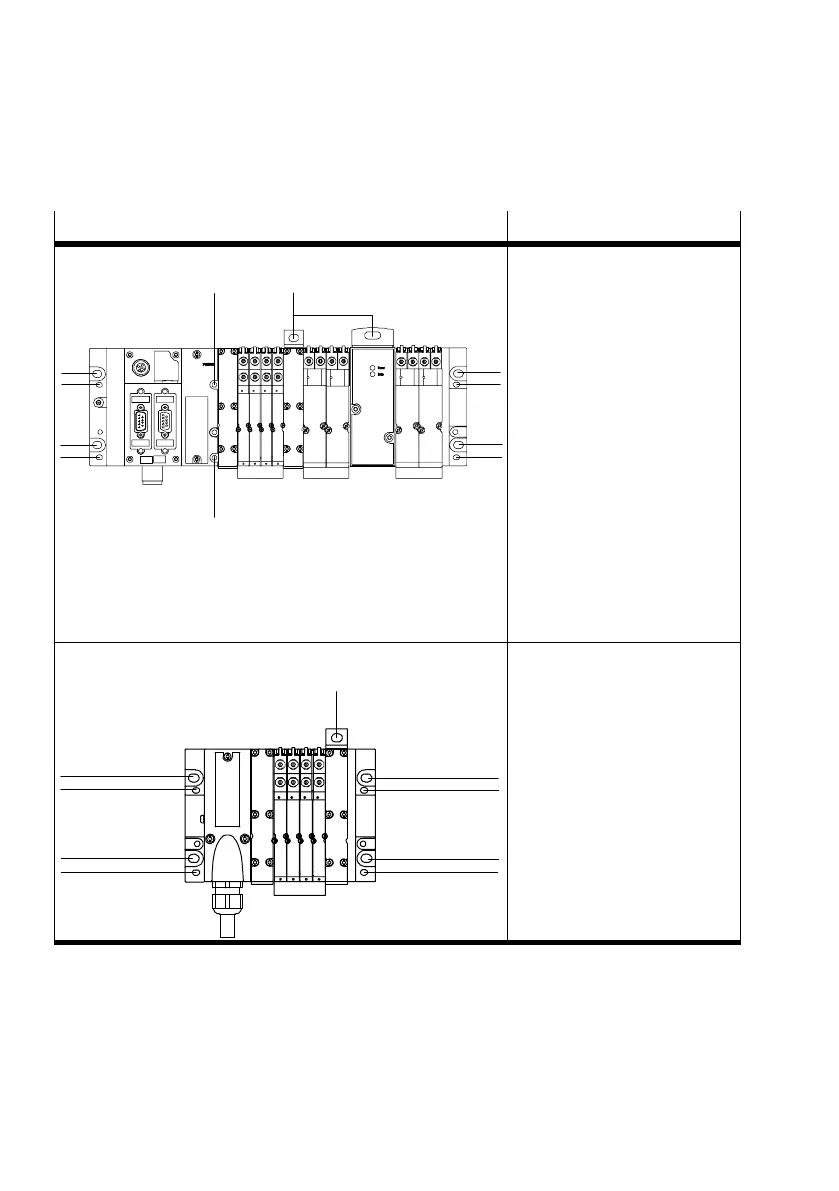

Variant Fastening points
11
2
2
1
1
2
1
MPA−S valve terminal with CPX terminal
1
2
3
Required mounting:
 End plates:
two M4 1 or M6 screws 2
each
 Pneumatic interface:
two M4 screws 1
 Per fastening bracket to the
pneumatic supply plate or the
proportional pressure
regulator (see also Notes in
Appendix A, Tab.A/2):
one M6 screw 3
Note:
If your MPA−S valve terminal is
equipped with four or more CPX
sub−bases, fastening clips type
CPXBG−RW−... must be used as
additional fastenings
(seesystem manual for the
CPXterminal)
1
1
1
1
2
2
2
2
MPA−S valve terminal with multi−pin plug connection
3
Required mounting:
 Multiple connector plate:
two M4− 1 or M6 screws 2
each
 Right end plate:
two M4− 1 or M6 screws 2
each
 Per fastening bracket to the
pneumatic supply plate (see
also instructions in Appendix
A, Tab.A/2):
one M6 screw 3
Tab.2/3: Methods of fastening the MPA−S valve terminal
