Assembly

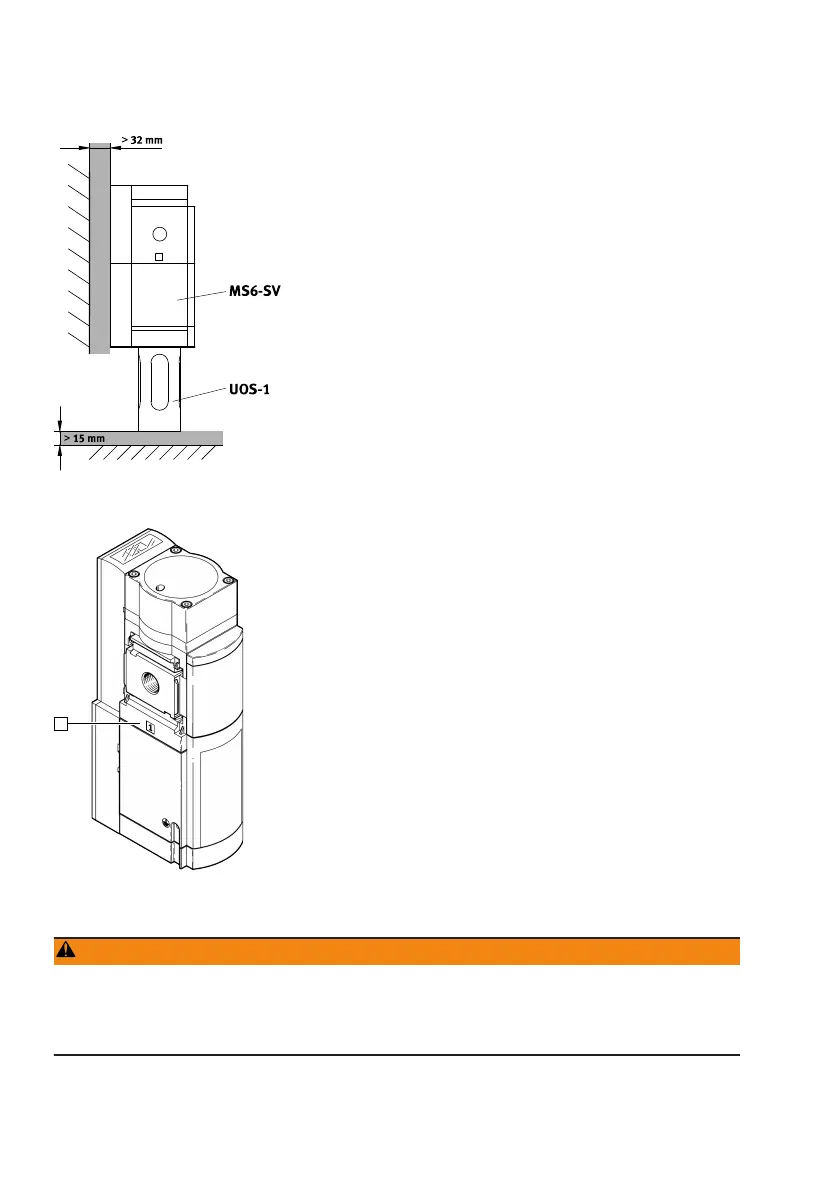

Fig. 13: Mounting
– Observe the flow direction 1 to 2. The numerals 1 on the product housing serve as orientation.
1
Fig. 14: Flow direction
5.3
Assembly with MS-series service unit components
WARNING
Loss of the safety function
If devices that impair the exhaust are placed behind the pneumatic connection 2 of the soft start/quick
exhaust valve, this can result in loss of the safety function.
• Only place devices that do not impair the exhaust downstream of pneumatic connection 2.
