Festo — MS6(N)-SV-...-E-10V24 — 2021-11e
9.2 Cleaning
1.
Switch off energy sources:
– Operating voltage
– Compressed air
2. Clean the outside of the product as required. Approved cleaning agents are soap solutions (max.
+50 °C), petroleum ether and all non-abrasive cleaning agents.
10 Malfunctions
10.1 Diagnostics
LED display
Operating statuses and errors are indicated by flashing light-emitting diodes.
Power LED (green) Error LED (red) Meaning
Off Off Operating voltage not applied
lights for approx. 6 s after
switch on
lights for approx. 6 s after
switch on
Product runs through all tests
during start-up
flashes once a second Off Product is in exhausted status
continuously on Off Product is in pressurised status
Product is waiting for the signal
(S34) with monitored start
4x briefly flashes once a second error code
Tab. 7: LED display
Display of error codes
The error code is displayed by 4 short flash pulses of the Power LED (green). Then the Error LED (red)
displays the error code (number of flash pulses = error code). The flash pulses for both LEDs repeat
continuously. The LEDs only stop flashing when the operating voltage is switched off in order to clear
the error.
Overview of error codes:

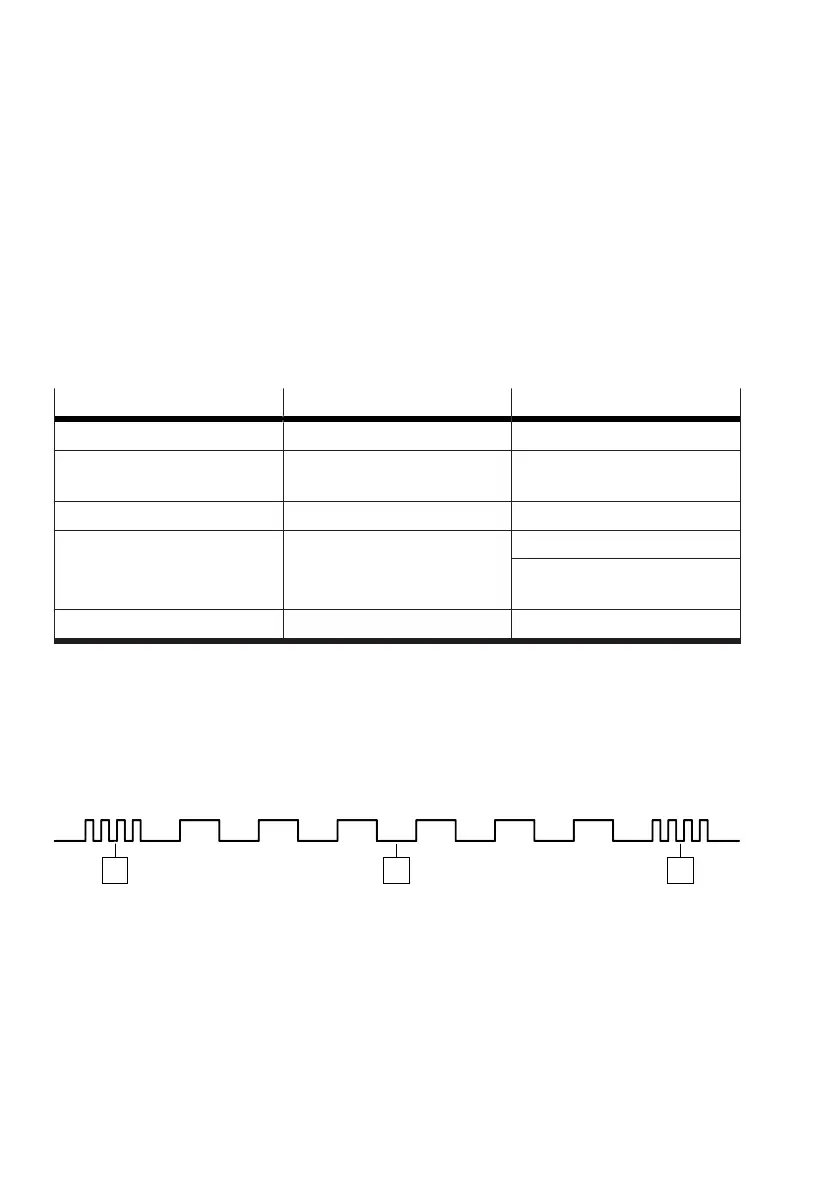

Fig. 18:
Example of error code
After 4 short flash pulses of the Power LED 1, there are 6 long flash pulses of the Error LED 2.
This indicates error code 6 (pneumatic fault). A pneumatic fault occurs, for example, if the operating
pressure is below the required minimum pressure or there is no pressure at all.
10.2 Fault clearance
– Check compressed air supply
–
Check power supply
– Check installation of the signal lines
