Festo MS6 SV E 10V24 Series Operating Instructions

6
Festo — MS6(N)-SV-...-E-10V24 — 2021-11e
Product overview
4 Product overview
4.1 Configuration
The product corresponds to category 4 with a maximum achievable performance level e in accordance
with EN ISO 13849-1.
1
2
3
4
5
6
7
8
9

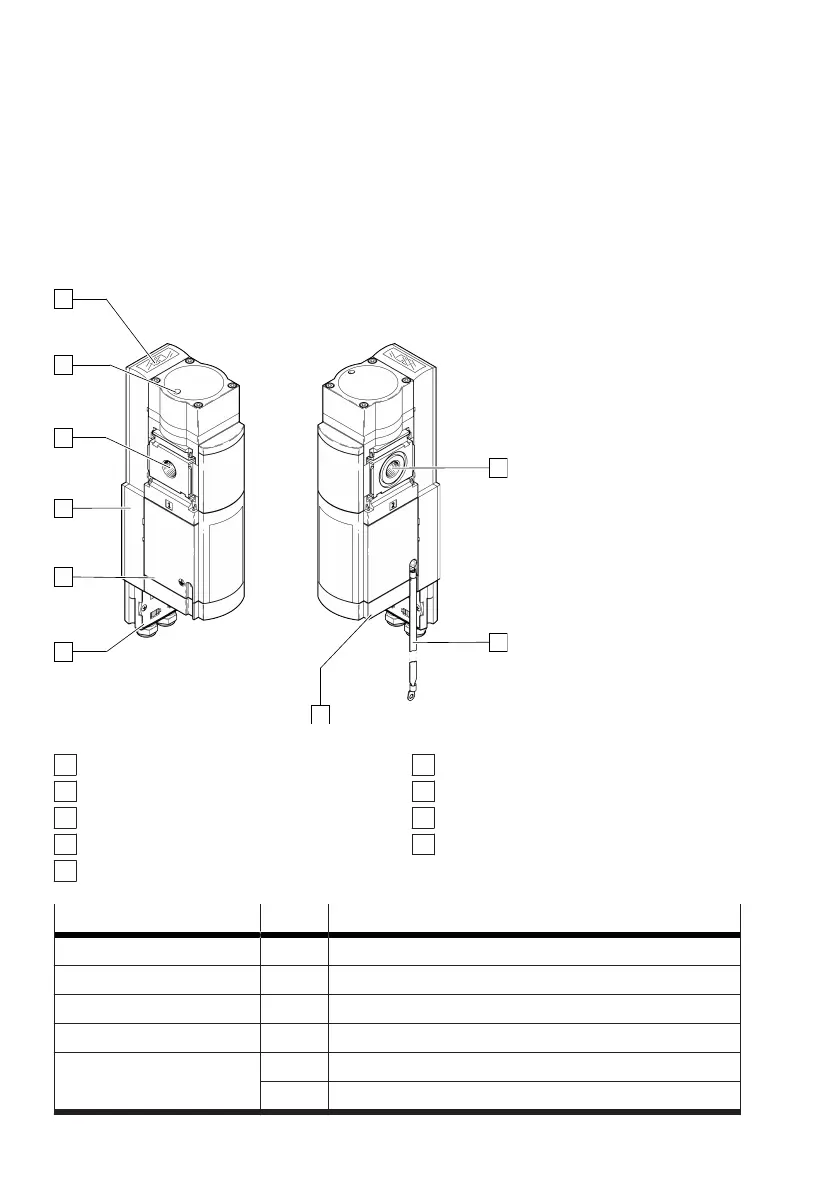

Fig. 1: Product design
1
LED display (Power LED and Error LED)
2
pneumatic port 2 (compressed air outlet)
3
pre-assembled earthing strap
4
pneumatic port 3 (exhaust)
5
multi-pin plug socket NECA (accessories)
6
valve block
7
electronic insert
8
pneumatic port 1 (compressed air input)
9
flow control screw for soft start function
Feature Code Type
Series M Modular
Performance class S Default
Size 6 Housing width 62 mm
Function – SV Soft-start/quick exhaust valve, electric
Port size – 1/2 G1/2
– AGB G1/4
