Installation
–
Use only suitable silencers
è
www.festo.com/catalogue.
–
Screw the silencer into pneumatic port 3.
–
Make sure exhaust has no obstacles: do not block silencer or port 3.
6.2
Electrical installation
WARNING
Risk of injury due to electric shock.
• For the electric power supply, use only PELV circuits that ensure a reliable electric disconnection
from the mains network.
• Observe IEC 60204-1/EN 60204-1.
Connecting earthing strap
•
Connect the pre-assembled earth strap to the earth potential with low impedance (short cable
with large cross-section).
This prevents malfunctions due to electromagnetic interference and ensures electromagnetic compati-
bility in accordance with the EMC Directives.

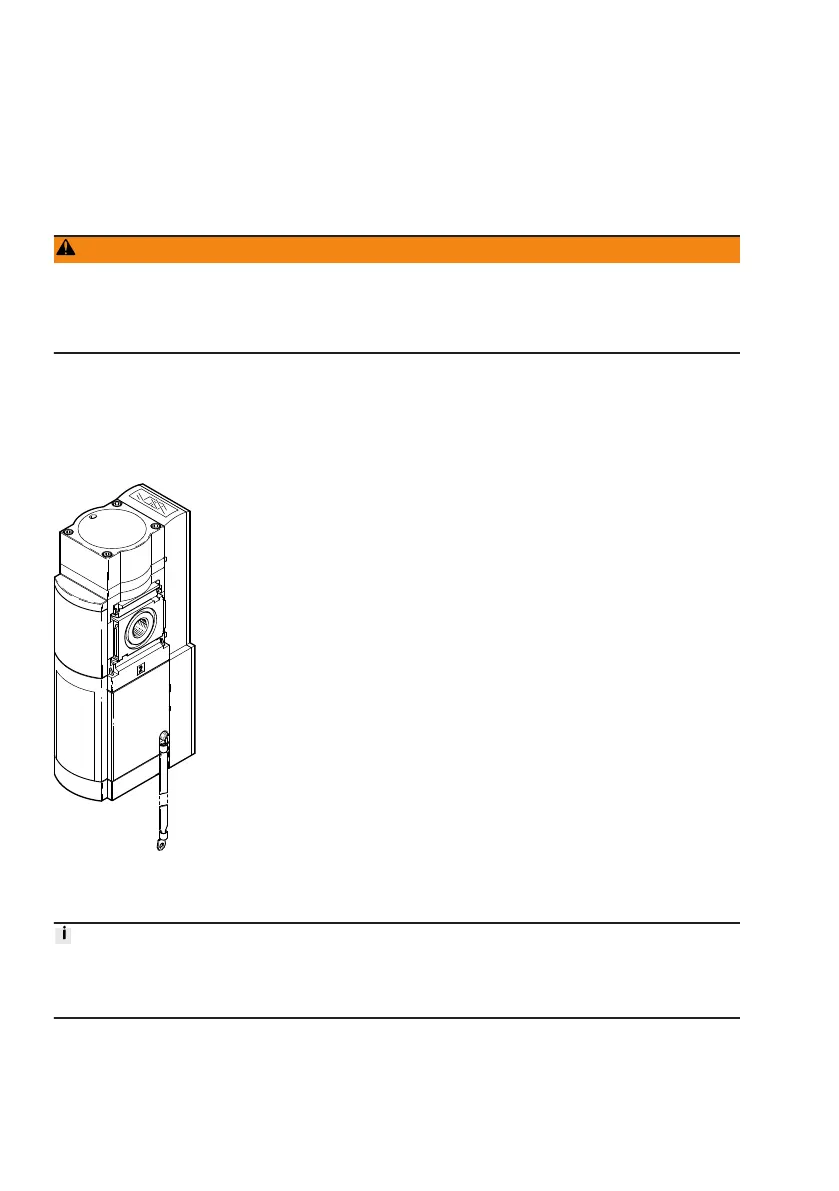

Fig. 16: Earth cable connection
Connecting multi-pin plug socket NECA
The product may only be used with the approved NECA multi-pin plug sockets NECA-....
Information on terminal connections can be found in the assembly instructions enclosed with the
multi-pin plug socket.
