Festo MS6 SV E 10V24 Series Operating Instructions

Festo — MS6(N)-SV-...-E-10V24 — 2021-11e
Product overview
9

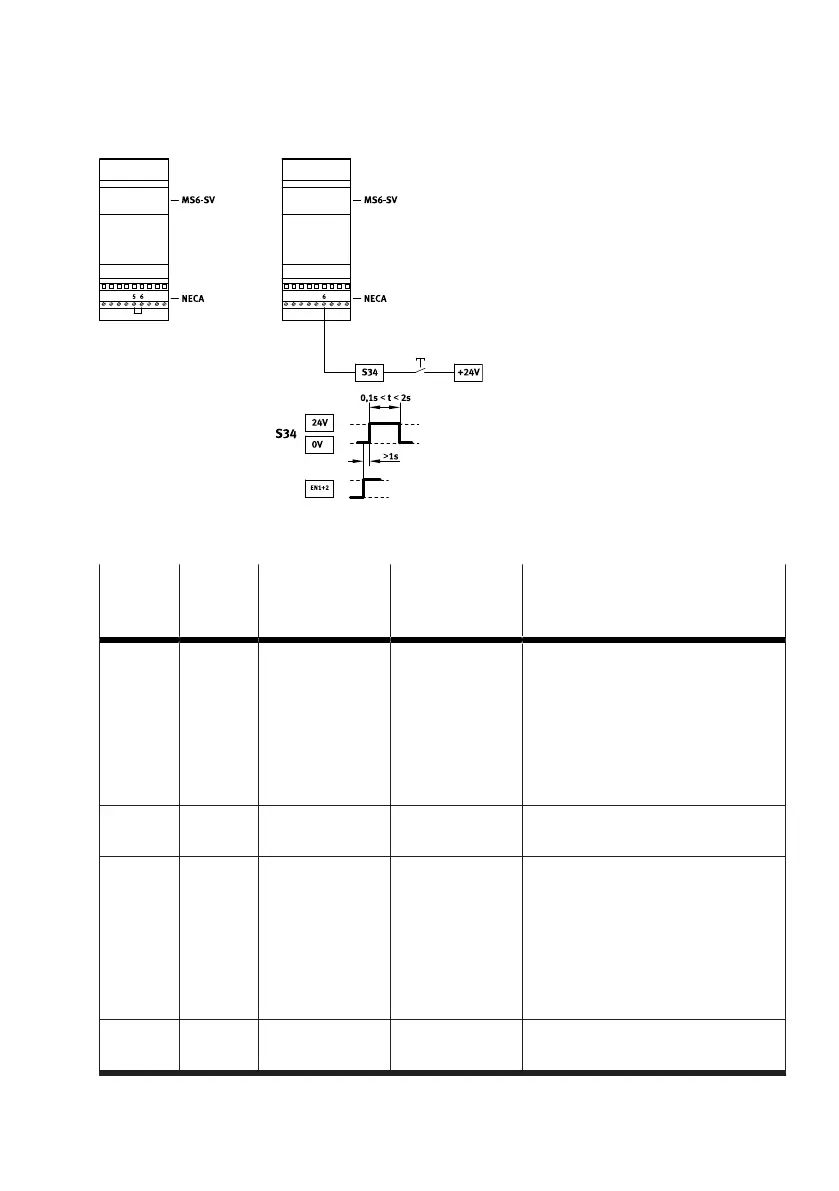

Automatic start (delivery status) and monitored start
Fig. 2: Operating modes
Operational principle of the multi-pin plug sockets NECA-…-MP1, -MP3 und -MP5
Status of
EN1
Status of
EN2
Status of valve
with NECA-…-
MP1
Status of valve
with NECA-…-
MP3
Status of valve with NECA-…-MP5
0 V 0 V Unpressurised Valve switches to
fault mode
Valve does not switch to fault mode,
but remains in the safe, unpressur-
ised status
Note:
Detection of shorts across contacts
and error detection and evaluation
via external controller is required
0 V 24 V Valve switches to
fault mode
Pressurised Pressurised
24 V 24 V Pressurised Valve switches to
fault mode
Valve does not switch to fault mode,
but remains in the safe, unpressur-
ised status
Note:
Detection of shorts across contacts
and error detection and evaluation
via external controller is required
24 V 0 V Valve switches to
fault mode
Unpressurised Unpressurised
Tab. 3: Operational principle of the multi-pin plug sockets NECA
