3 Application Interface
3.1 M.2 Interface
The FM350 module applies standard M.2 Key-B interface, with a total of 75 pins.
Pin Map

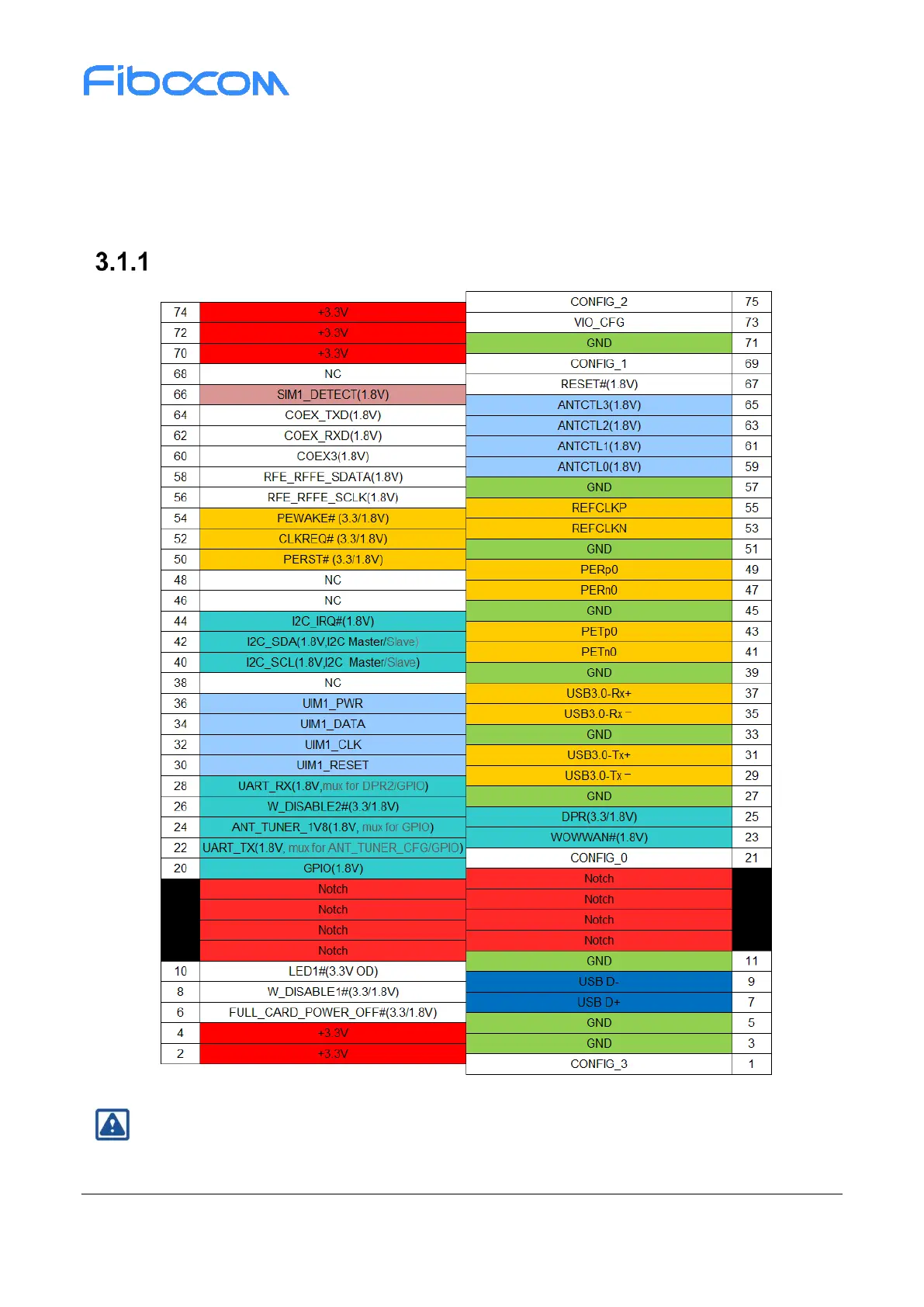

Figure 3-1 Pin Map
Note:
Pin “Notch” represents the gap of the gold fingers.
