Mid-mount Connection with Single-Sided Module

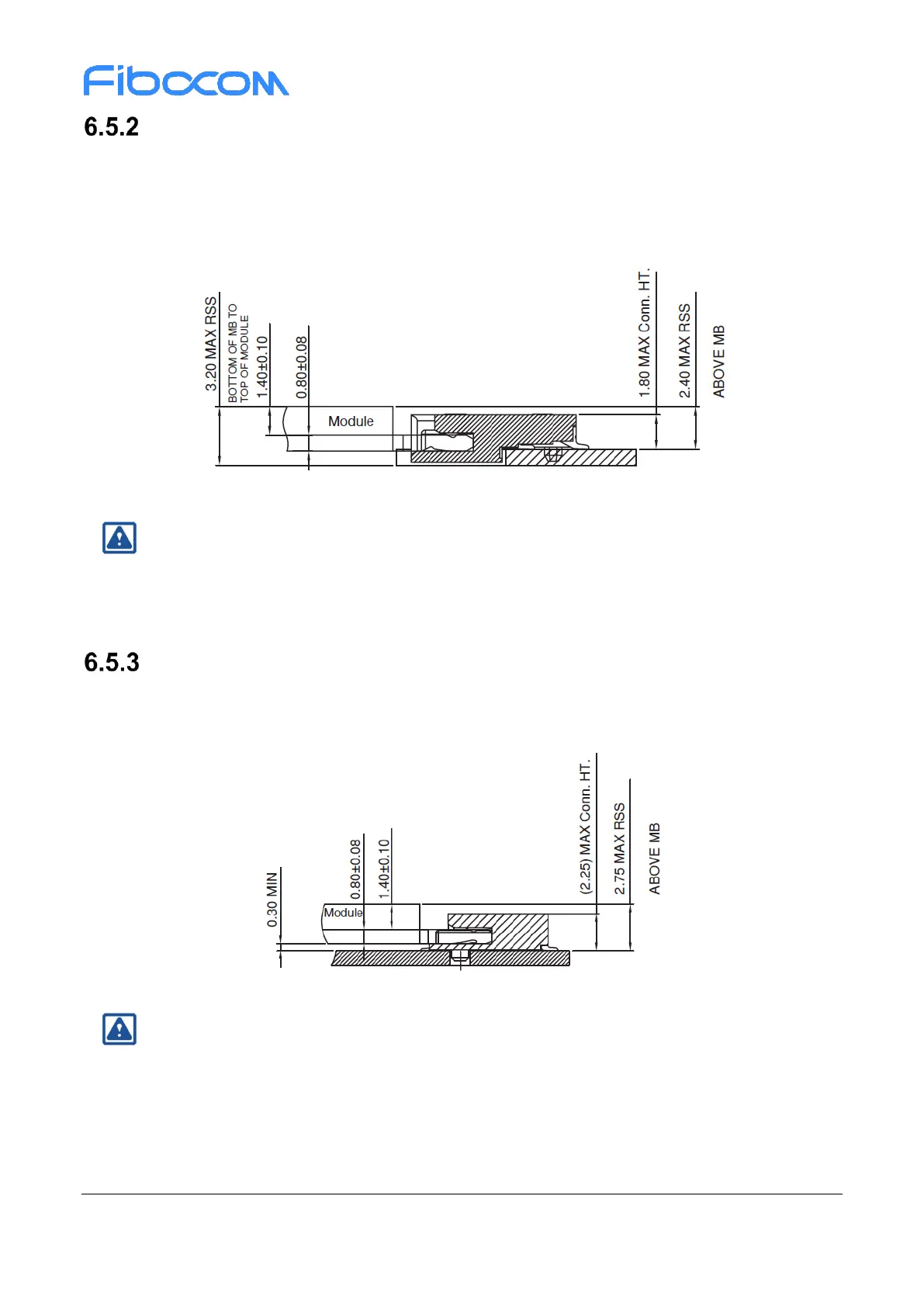

Stack-up Mid-mount (In-line) single-sided module is shown in Figure 6-8. The maximum height of
components is 1.5mm.
Figure 6-8 Stack-up mid-mount single-sided module
Note：
2.4mm maximum above mother board
Suggest to cut the area of mother board under M.2 module
Top-mount Connection with Single-Sided Module
Stack-up top-mount single-sided module is shown in Figure 6-9. The maximum height of components is
1.5mm.
Figure 6-9 Stack-up top-mount single-sided module
Note：
2.75mm maximum above mother board
Full keep out area 30×42mm below module, which means don’t place any components and
routings below M.2 module
Add thermal pad between M.2 module and mother board for thermal dissipation.
