Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
FM350-GL Hardware Guide Page 63 of 67
6.5 M.2 Card Assembly
Card Insertion
Angled insertion is allowable and preferred; intent is to minimize the insertion and extraction force. The
minimum angle of insertion is 5°. For APCI0144-P001A, the maximum angle of insertion is 5°. For
APCI0026-P001A, the maximum angle of insertion is 20°. PLS refer to Figure 6-6 and Figure 6-7 to
insert and extract the module.

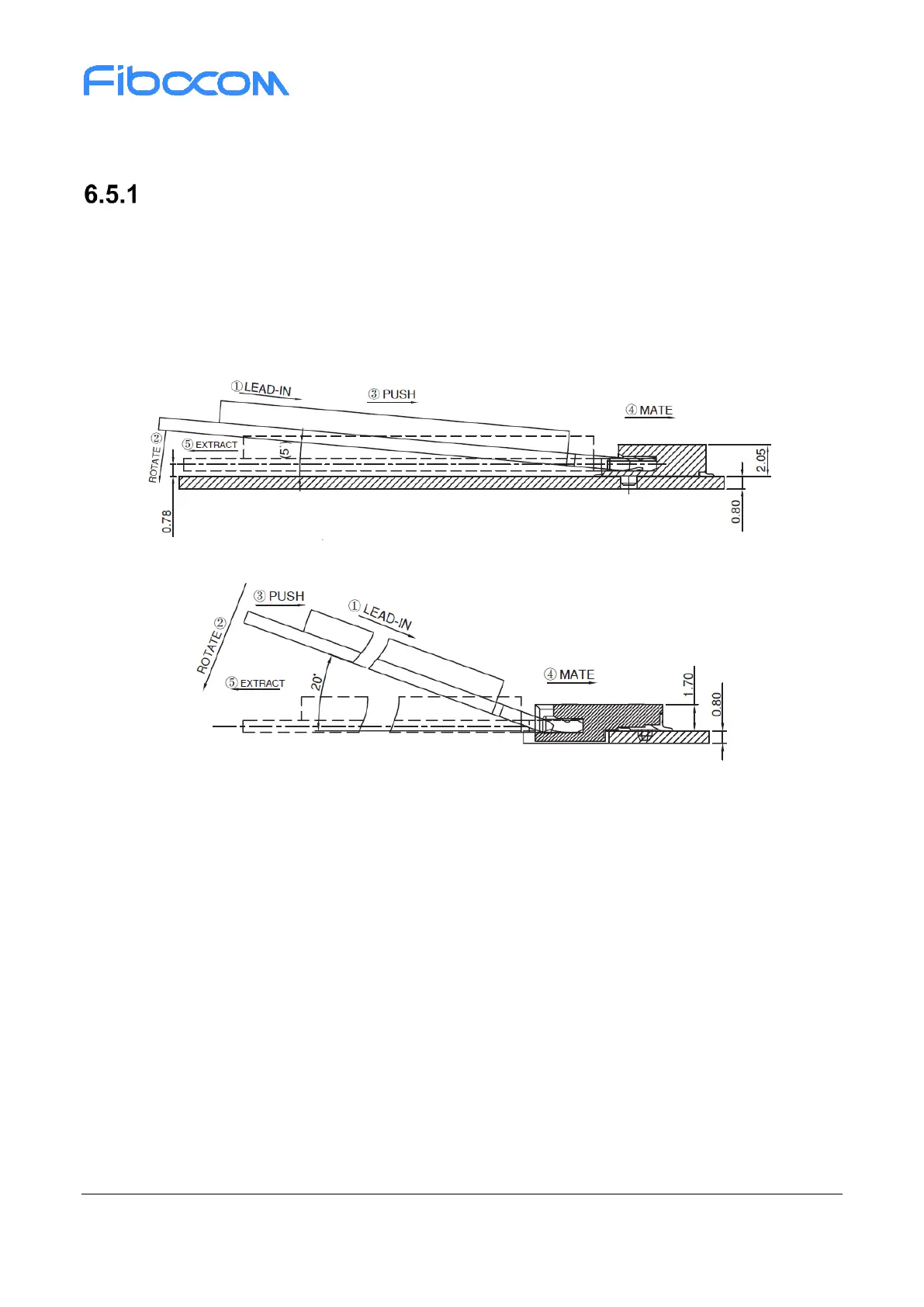

Figure 6-6 Angle of insertion for APCI0144-P001A
Figure 6-7 Angle of insertion for APCI0026-P001A
