3.6 Status Indicator
The FM350 module provides two signals to indicate the operating status of the module, and the status
indicator pins is shown in the following table:
Pin
Pin Name
I/O
Reset Value
Pin Description
Level
10
LED1#
O
T
System status LED, drain output.
3.3V
23
WOWWAN#
O
PD
Wake up host, Reserved
1.8V
LED#1 Signal
The LED#1 signal is used to indicate the operating status of the module, and the detailed description is
shown in the following table:
Module Status
LED1# Signal
RF function ON
Low level (LED On)
RF function OFF
High level (LED Off)

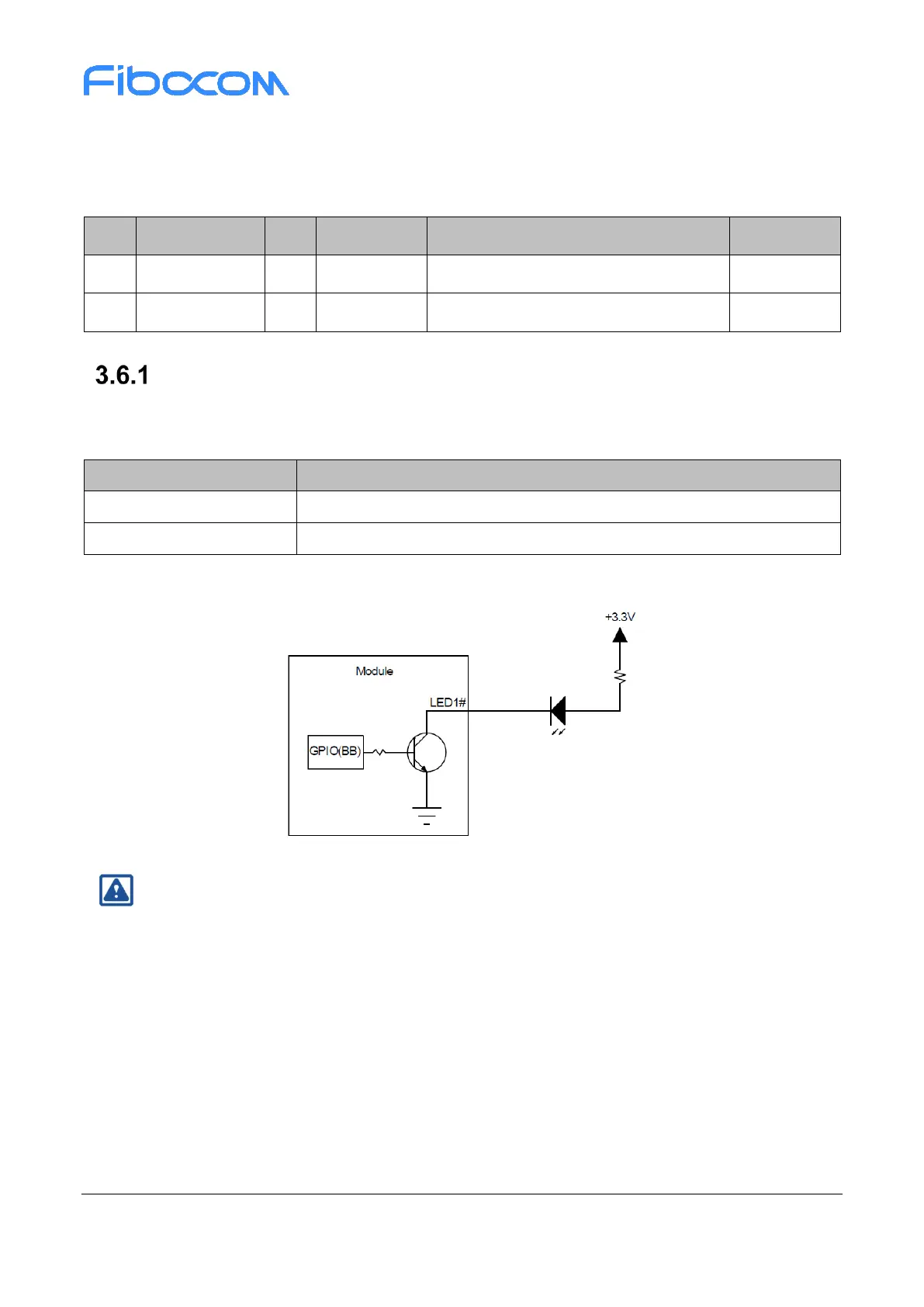

The LED driving circuit is shown in figure 3-18:
Figure 3-18 LED driving circuit
Note:
The resistance of LED current-limiting resistor is selected according to the driving voltage and
the driving current.
