Aligning the Bulged Lid Sensor

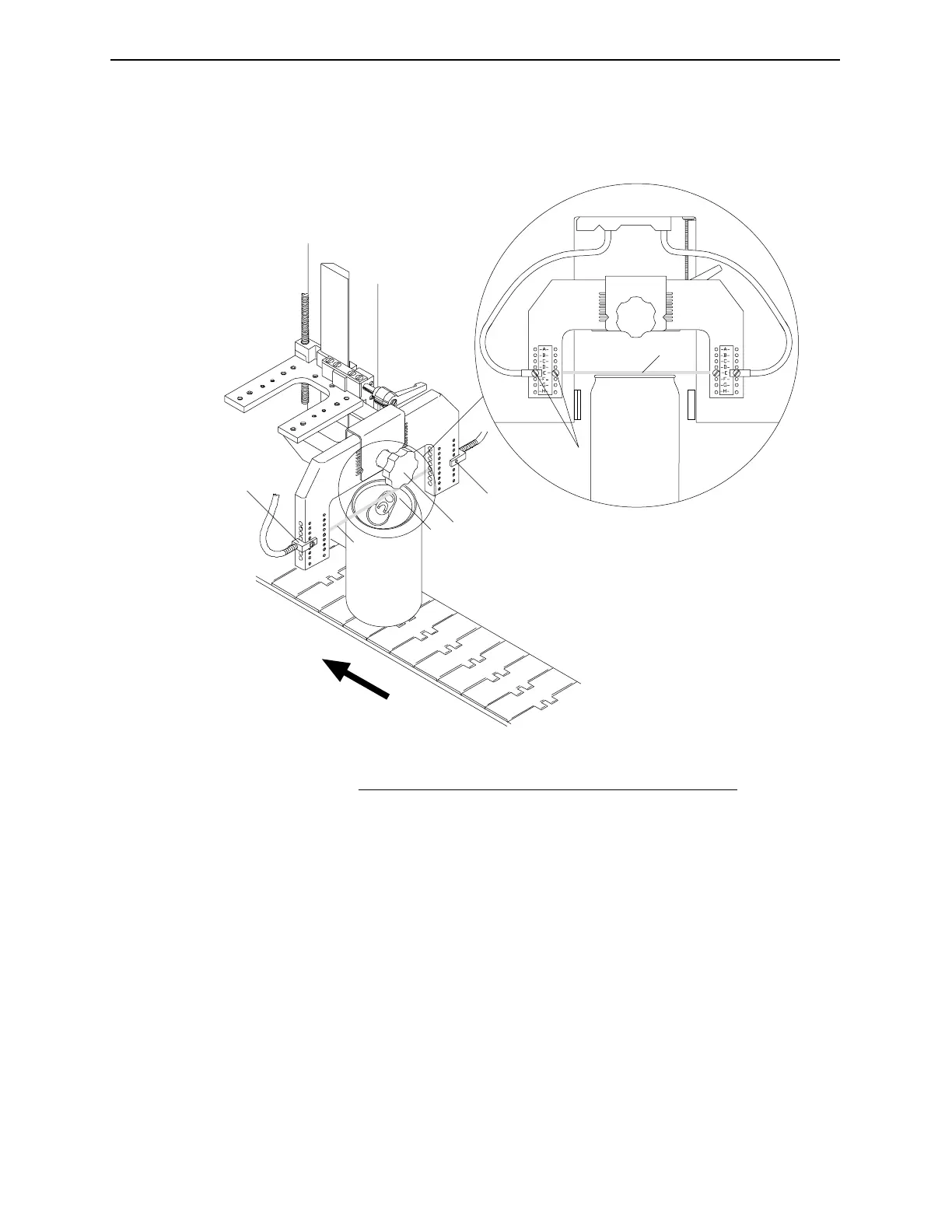

Figure 2-9. Aligning the Bulged Lid Sensor
6
1
2
3
4
5
8
7
No. Description
1 Sensor Emitter
2 Height Adjustment Lock
3 Container Lid
4 Sensor Beam
5 Sensor Receiver
6 Container Travel
7 Distance between Container Lid and Sensor Beam
8 Secondary Sensor Height Adjustment
