Chapter 2: Operating Your FT-70/75
2-13
Aligning the Smashed Bottle Sensor

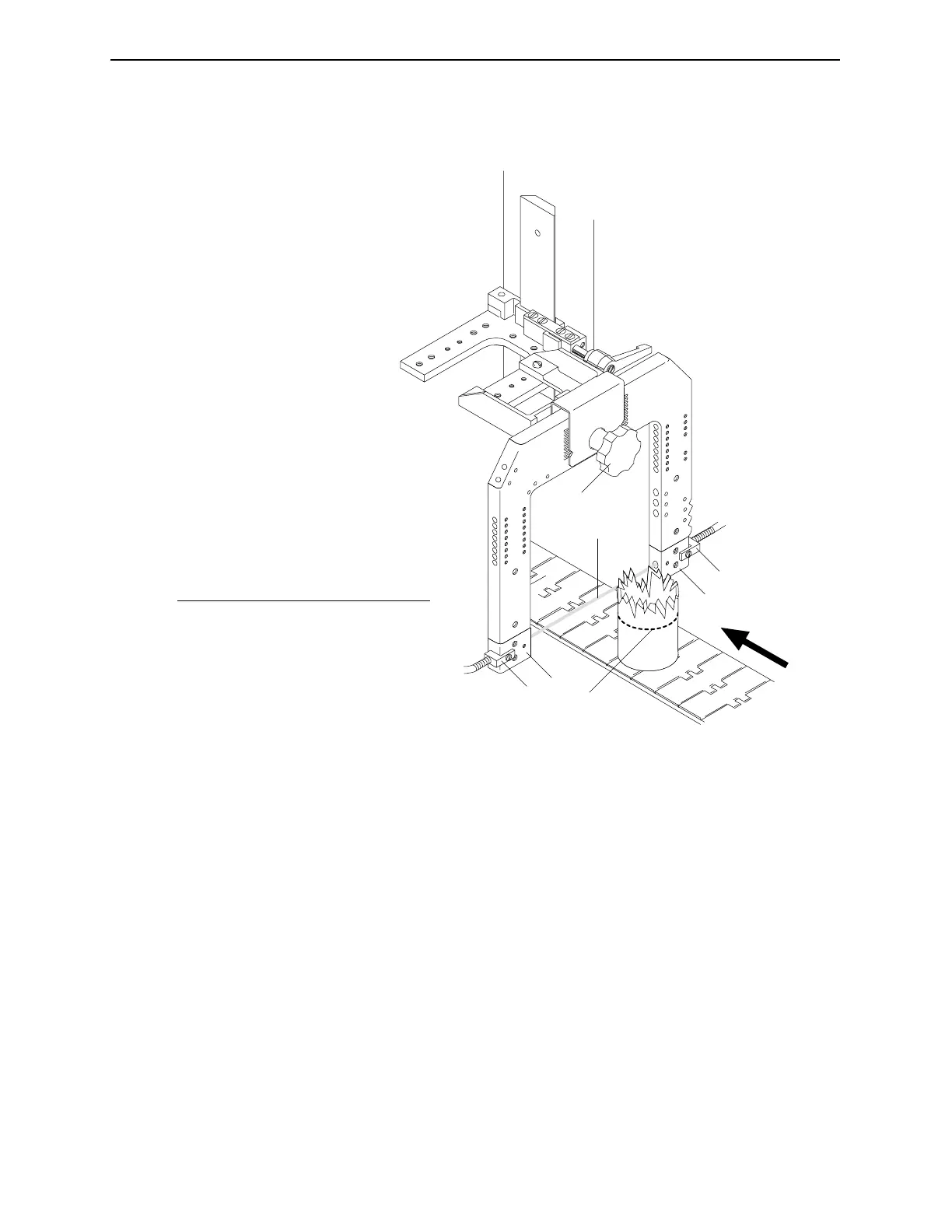

Figure 2-6. Aligning the Smashed Bottle Sensor.
The Smashed Bottle Sensor is mounted on a upstream offset
bracket attached to the Centerline Trigger Bracket. Therefore
before you align High Cap Sensor, be certain the Centerline Trigger
Bracket is aligned properly. For more information see “Adjusting
the Centerline Trigger Bracket Height” on page 2-7.
1. Turn off the Safety Interlock Switch. For more information see
“The Safety Interlock Switch” on page 2-4.
2. Center a typical smashed production container under the
upstream sensor mounting bracket.
7
3
5
2
4
4
1
6
No. Description
1 Height Adjustment Lock
2 Sensor beam
3 Sensor Emitter
4 Bracket Extension
5 Sensor Receiver
6 Sensor Trigger Alignment Point
7 Container Travel
Industrial Dynamics Company, Ltd. Document 40274-0600
