EN
116

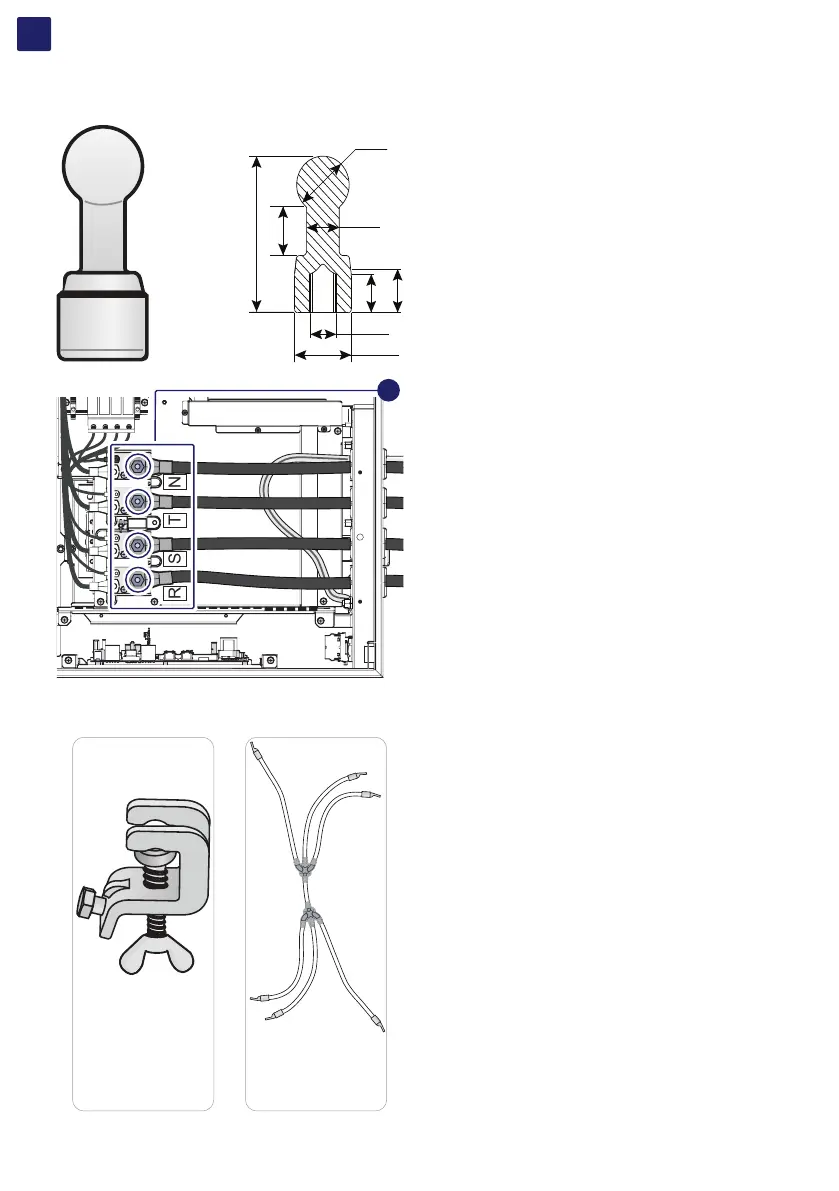

• Install 4 Fixed Ball Points in the AC phase R-S-T and neutral N on
the AC connection busbars (21).
59
15
18
20
Ø11
M10
SW24
Ø20
21
• Install the earth connecting elements to the earthing and short-
circuiting cable.
Earth connecting
elements
Earthing and
short-circuiting cable
• Connect the earthing cable to the ground.
• Connect the earth connecting elements on the fixed ball points,
to put in short circuit and to ground the the phase R-S-T and N
neutral.
