3.6 Efficiency curves

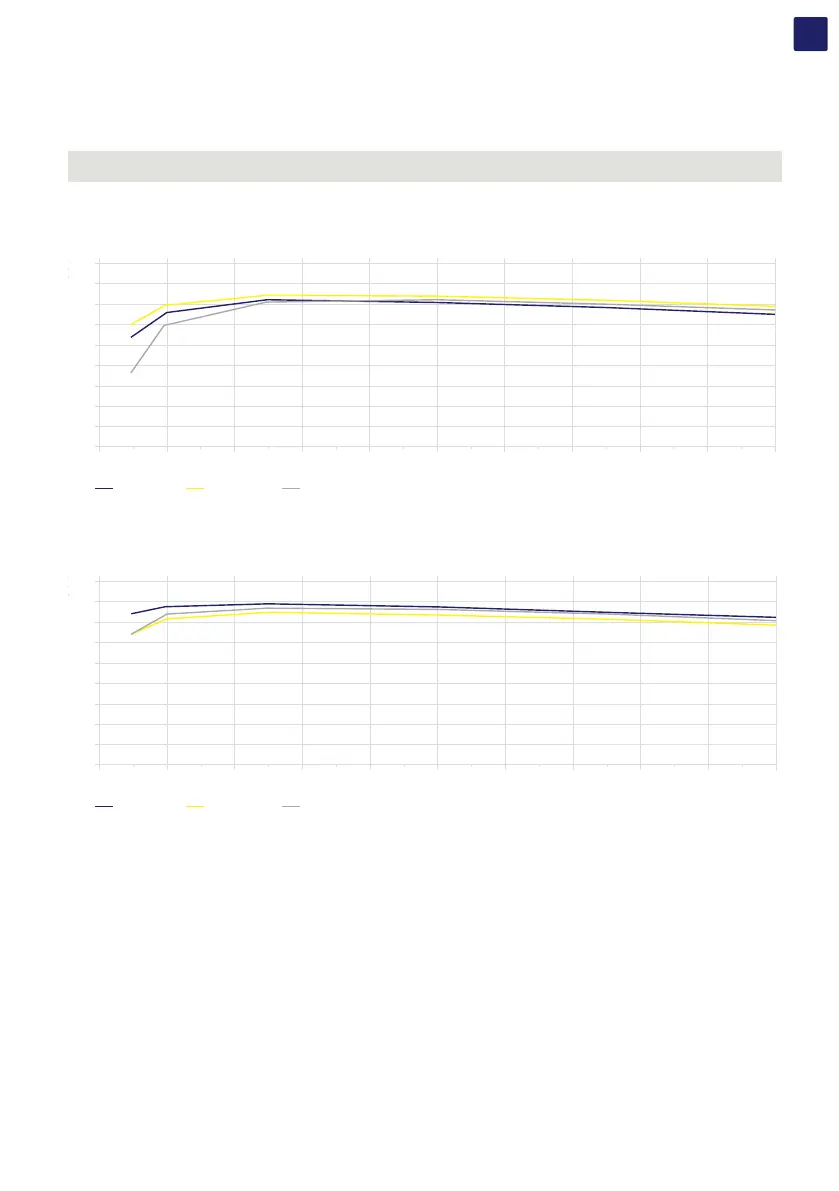

Graphs of the efficiency curves of all inverter models described in this manual are shown below.
NOTE – D The efficiency curves are linked to technical parameters that are continually being developed and improved and should
therefore be considered approximate.
PVS-100-TL
0 10 20 30 40 50 60 70 80 90
100
92
91
93
94
95
96
97
98
99
100
480 Vdc 620 Vdc
Rated Output Power (%)
Efficiency (%)
800 Vdc
PVS-120-TL
0 10 20 30 40 50 60 70 80 90
100
92
91
93
94
95
96
97
98
99
100
720 Vdc 570 Vdc
Rated Output Power (%)
Efficiency (%)
800 Vdc
