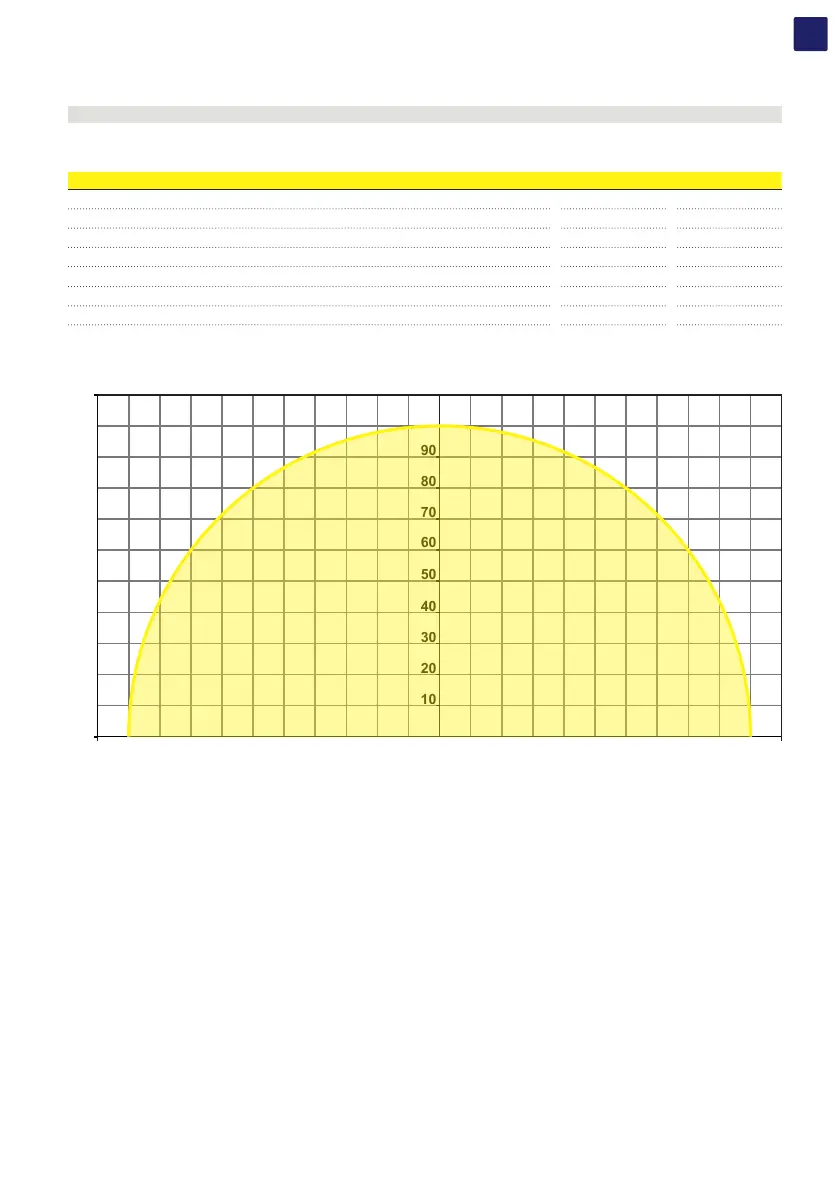

3.7.3 P-Q Capability
ATTENTION – A P-Q capability may be reduced to match the specific grid code requirements applicable in your country.
The following represents the maximum P-Q capability of the unit under the specified operating conditions.
Component Nm
Ambient temperature *40 °C *40 °C
Rated output voltage (Un)
400 Vac 480 Vac
Nominal Active Power (Pn) 100 kW 120 kW
Nominal Apparent Power (Sn) 100 kVA 120 kVA
Nominal Reactive Power (Qn)
100 kVAR 120 kVAR
Cosphi @ Smax -0 ... 1 ... 0+ -0 ... 1 ... 0+
Capability with grid voltage 1.0 x Un 1.0 x Un
(*): Thermal derating could be occured if input voltage is over 800V.
