Fimer PVS-100-TL - Page 68

EN
68

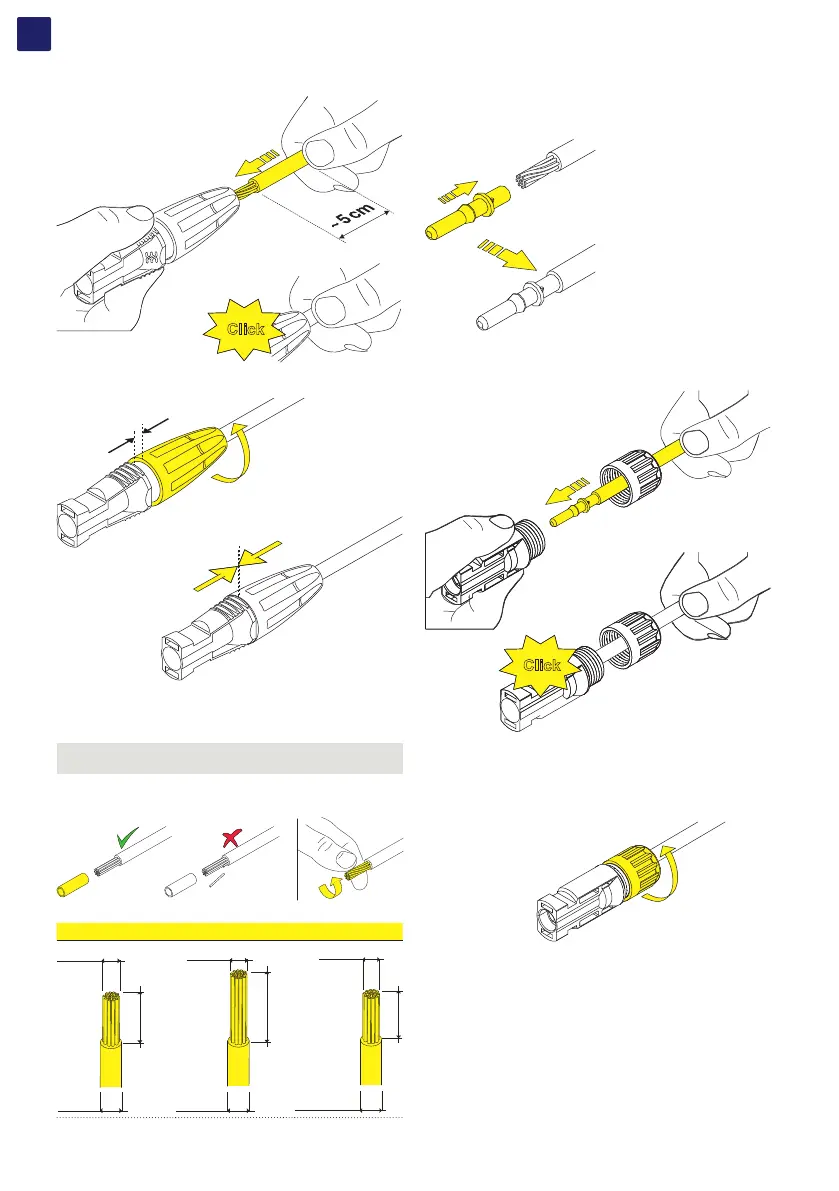

• Insert the wire into the connector until you hear a locking “click”
Click
• Tighten the knurled ring nut for optimal clamping.
3 ... 4 Nm
0 !
Installation of Weidmüller WM4, MultiContact MC4,
Amphenol H4 quick-fit connectors:
ATTENTION – A Installation of WM4, MC4 and H4 connectors
requires crimping to be carried out with suitable equipment.
• Strip the cable to which you want to apply the connector (after
verifying that it complies with the connector limits).
Weidmüller WM4 MultiContact MC4 Amphenol H4.
7.0mm
4...6mm
6...7mm
2
12.0mm
4...6mm
5.5...9mm
2
7.0mm
4...6mm
7.6...9.3mm
2
• Apply the terminal to the conductor using the designated pliers:
WEIDMÜLLER CTF PV WM4 - 1222870000
MULTI-CONTACT - 32.6020-19100
AMPHENOL H4TC0002
• Insert the cable with the terminal into the interior of the connector,
until you hear the click indicating that the terminal is locked inside
the connector
Click
• Firmly tighten the cable gland with a torque of:
- 2.5Nm using the relevant tool WEIDMÜLLER - 1217280000
- 2.5Nm using the relevant tool MULTI-CONTACT - 32.6024
- 2.6-2.9Nm using the relevant tool AMPHENOL H4TW0001.
Click
