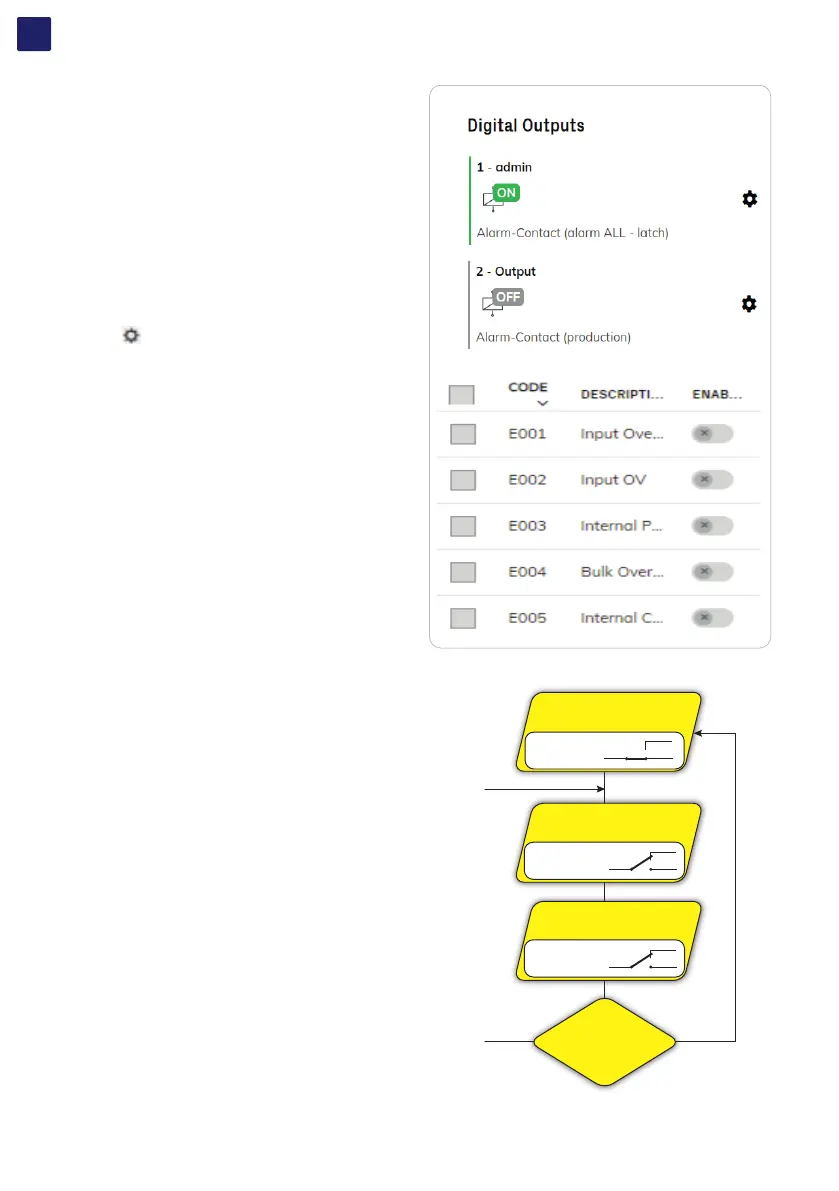

DIGITAL OUTPUTS
In the Digital Outputs menu it’s possible to set the activation status
and to configure customized alarm conditions of the two configurable
relays related to “ALARM and AUX” terminal block (33) (refer to
“Configurable Relay connection (ALARM and AUX)” paragraph to
know how to connect to these terminal block).
This
contact can be used, for example, to activate a siren or a visual alarm,
control the disconnect device of an external transformer, or control
an external device.
Relay switching can be set in different modes by clicking on the
setting icon
: With “Output active filter” you can select the list of
events for which the relays switch.
The available operating mode are:
• Production
The relay is activated (status: switched) whenever the inverter connects to the
grid; as soon as the inverter is disconnected from the grid (for whatever reason
that caused disconnection), the relay is in its resting position.
INVERTER RUN
- PRODUCTION -
GRID DISCONNECTION
- NO PRODUCTION -
GRID RECONNECTION
t=based on Country Standard
DISCONNECTION
CAUSE IS STILL
PRESENT
Yes No
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
Relay State: Idle
Relay State: Idle
Relay State: Switched
