POWERVIEW (CONTINUED)
Stored Fault Codes
The PowerView Display will store any fault codes generated by the engine and display them
along with a text description. To access these fault codes:
1. Touch the Menu Key to display the Main Menu.
2. Using the Right Arrow Key, toggle down the list until Stored
Fault Codes is highlighted. See Figure 11.
3. Touch the Enter Key to view any stored fault codes. The
display will respond by presenting a Requesting Fault
Codes message while the system retrieves the codes.
See Figure 12.
4. Once the stored fault codes have been retrieved, the initial
code will be displayed along with a text description.
See Figure 13.
5. If the word MORE appears at the bottom of the display, this
indicates that there are additional fault codes being stored.
Use the Right Arrow key to advance to the next code.
6. As long as the arrow appears to the right of the word
MORE as you advance through the fault codes, this means
there are more codes available for viewing. When the arrow
shifts to the left of the word MORE, this is an indication that
you have accessed the final fault code being stored. At this
point, you can touch the Left Arrow Key to review the fault
codes or touch the Menu Key to return to the Main Menu.

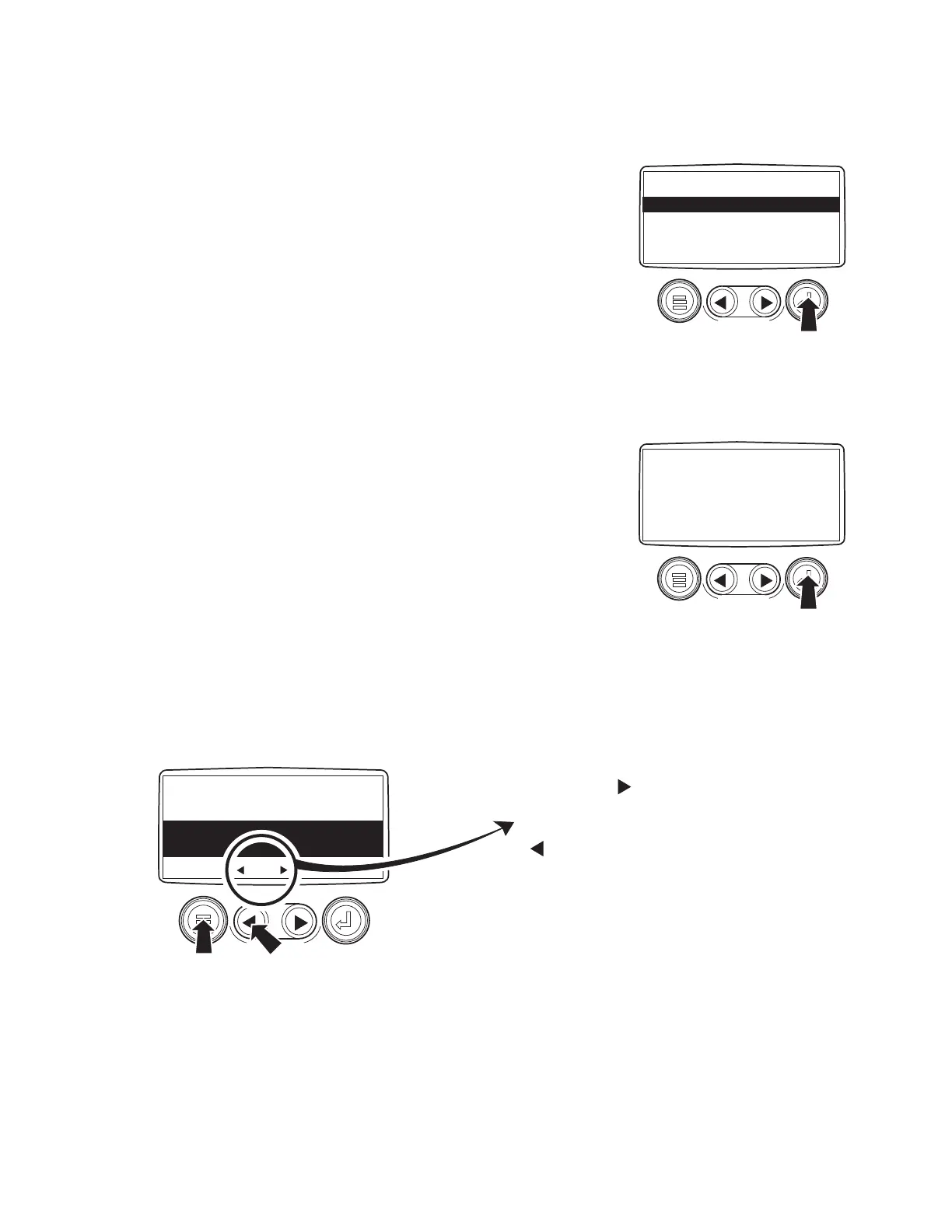

Figure 11 – Main Menu
GO TO 4-UP DISPLAY
ENGINE CONFGURATION
STORED FAULT CODES
ADJUST BACKLIGHT
ADJUST CONTRAST
SELECT UNITS
SETUP 1-UP DISPLAY
ENTER
KEY
Figure 12 – Access Stored
Fault Codes
ENTER
KEY
REQUESTING
FAULT CODES
Figure 13 – Stored Fault Codes
SHUTDOWN
WARNING
SPN110 FMI10
HIGH COOLANT TEMP
MORE HIDE
MORE
MORE
This Means There Are
More Stored Fault Codes
This Means There Are No
More Stored Fault Codes
MENU
KEY
TO REVIEW STORED
FAULT CODES
