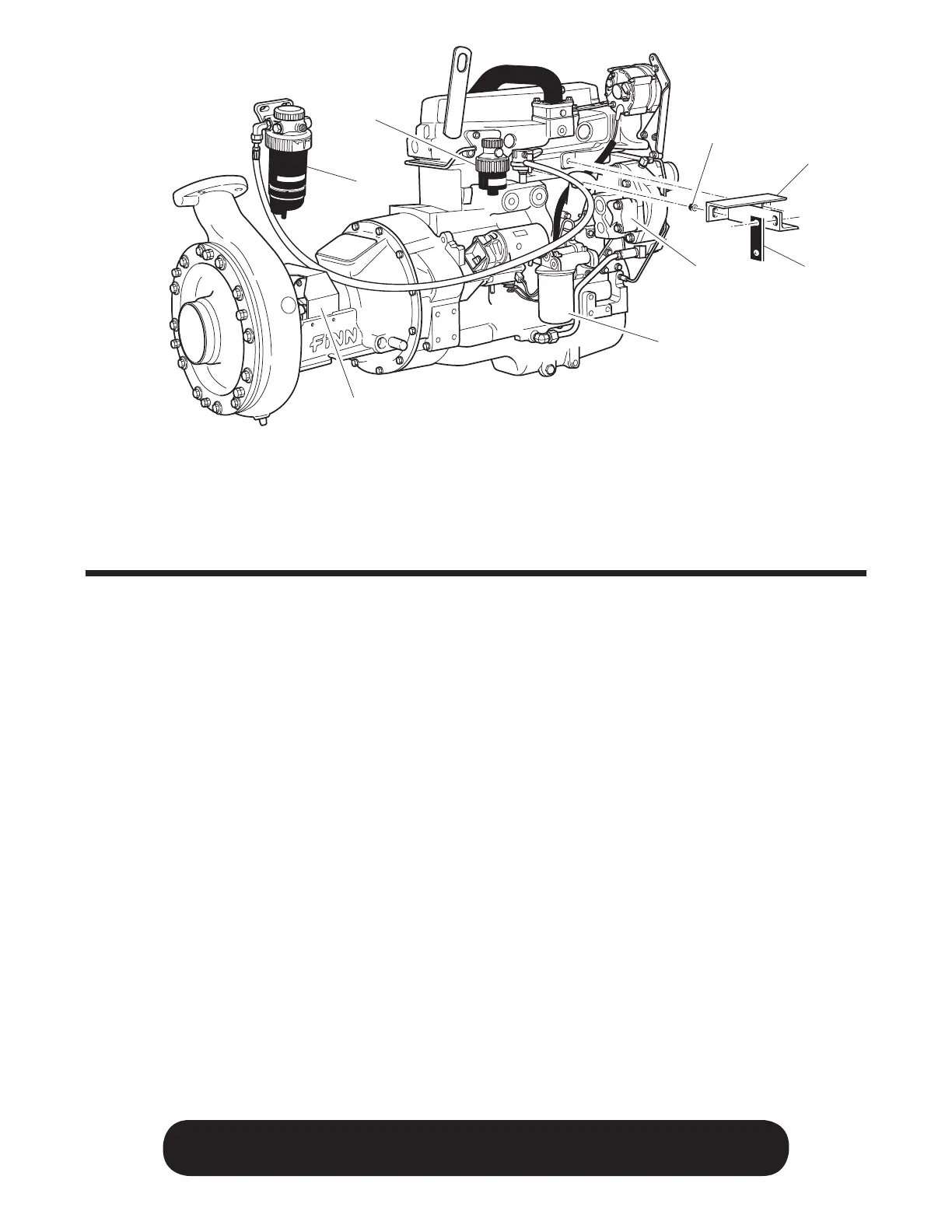

ENGINE AND RADIATOR
Ref. No. Part Number Description No. Required
1 023916 John Deere 4045T Tier 3 Engine Assembly 1
2 JDR524005 Fan Belt 1
3 JDSD443 Fan Spacer 1
4 JDAT24834 Pusher Fan 1
5 F330-0135 Radiator Arm Support Bracket 1
6 023438 Rubber Shock Mount 3
7 F330-0131 Radiator Support Bracket 1
8 JDSD284 Fan Guard 1
9 JD50-0532 Radiator 1
10 023807 Radiator Cap 1
11 F330-0130 Radiator Mount 1
12 012831-04 Spacer 1
13 012831 Hydraulic Pump Support 1
14 012831-03 Support Stop 1
15 011922 Hydraulic Pump 1
16 022452 Drain Cock 1
17 JDRE541420 Oil Filter 1
18 005470 Pump Shaft Guard 1
19 JDRE522878 Secondary Fuel Filter 1
20 JDRE529643 Primary Fuel Filter 1
