Finn HydroSeeder T280 - Ground Level Controls

T280 / T330 / T400
MMA2017 Rev. D
83
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE

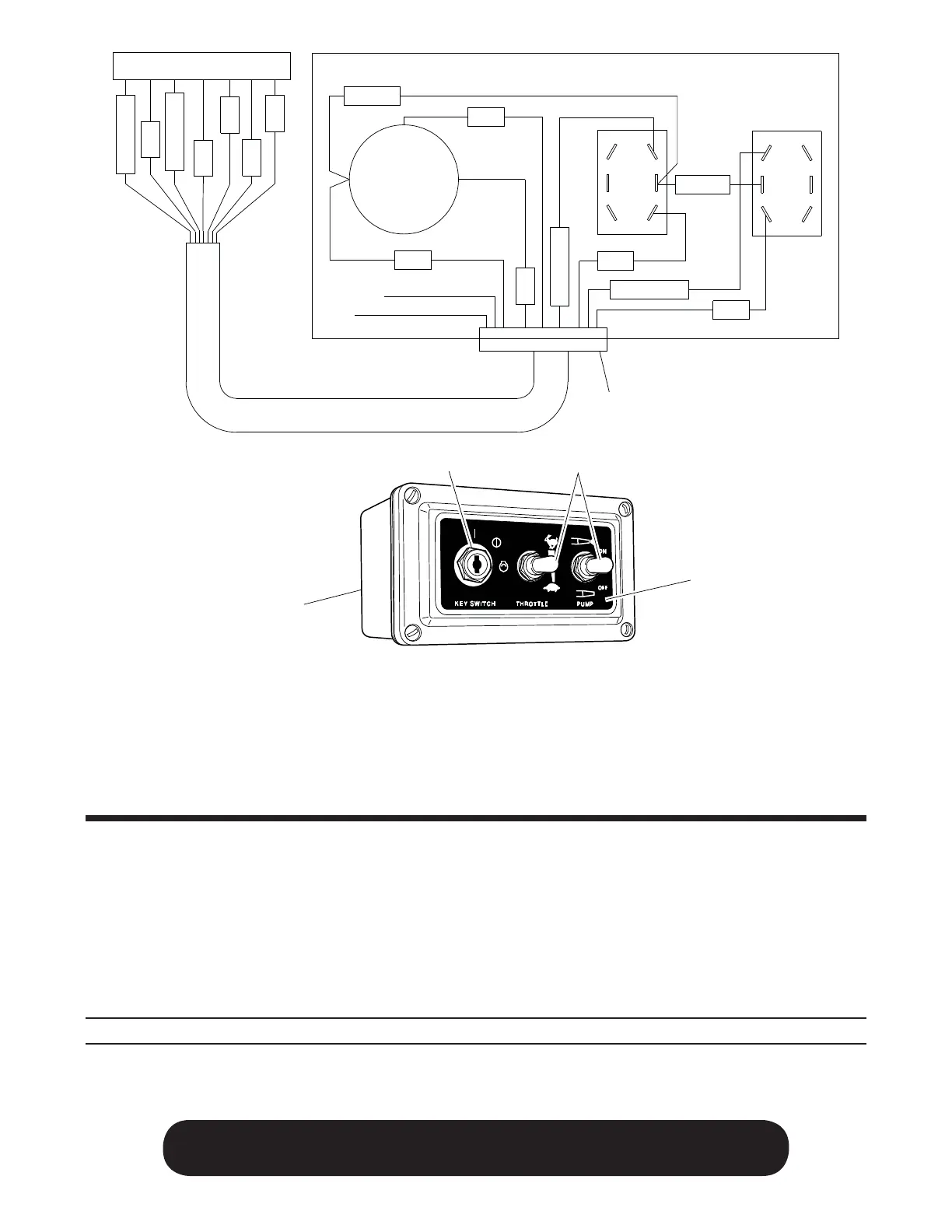

GROUND LEVEL CONTROLS
Ref. No. Part Number Description No. Required
1 012779 Ground Level Control Box 1
2 052076 Ignition Switch 1
3 023076 Key For Ignition Switch 1
4 FW71555 Toggle Switch 2
5 012759-02 Ground Level Control Box Decal 1
6 080304 Liquid Tight Fitting 1
7 080526 Switch Boot 2
NOT SHOWN
012775 Ground Level Controls Wiring 1
KEY SWITCH
THROTTLE SWITCH
PUMP
SWITCH
B
A
D
C G
E
F
ORG/BLK
ORG
RED/BLK
BLK
BLU
RED
YEL
BLU 3
YEL
GRN 3
I
S
B
BLU
Not Used:
BLU/BLK
BRN
RED
RED/BLK
BLK
ORG/BLK
ORG
1
3
2
7
4
5
6
