Finn HydroSeeder T280 - Structure and Railing

T280 / T330 / T400
MMA2017 Rev. D
55
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE
STRUCTURE AND RAILING
Ref. No. Part Number Description No. Required
1 013149 Swing Gate 1
2 013122 Spring Hinge 1
3 F330-0095 Control Box Mount 1
4 F330-0081 Boom Hold Down 1
5 F330-0125 Main Tank Top 1
6 190047 Foam Gasket A/R (Ft)
7 F330-0085 Left Rear Toe Rail 1
8 012706 Left Rear Guard Rail 1
005613 Square Tubing Plug 25
9 F400-0009-03 Narrow Top Support 1 (280) / 4 (330) / 6 (400)
9A F400-0009-04 Wide Top Support 4 (280) / 4 (330) / 6 (400)
10 F330-0126 Small Tank Top 1
11 012703 Slide Gate 2
12 SE0200-04 T400 Front Side Guard Rail 2
012704 T330 Front Side Guard Rail 2
012737 T280 Front Side Guard Rail 2
13 SE0200-05 T400 Front Side Toe Rail 2
F330-0083 T330 Front Side Toe Rail 2
F280-0005 T280 Front Side Toe Rail 2
14 F330-0127 Front Tank Top 0 (280) / 1 (330) / 1 (400)
14A F400-0052 Tank Top Extension 0 (280) / 0 (330) / 1 (400)
15 005714-01 Vent Port 1
16 F330-0082 Front Toe Rail 1
17 012705 Front Guard Rail 1
18 012708 Hatch Guard Rail 2
19 012702 Right Rear Guard Rail 1
20 F330-0086 Right Rear Toe Rail 1
47
48
46

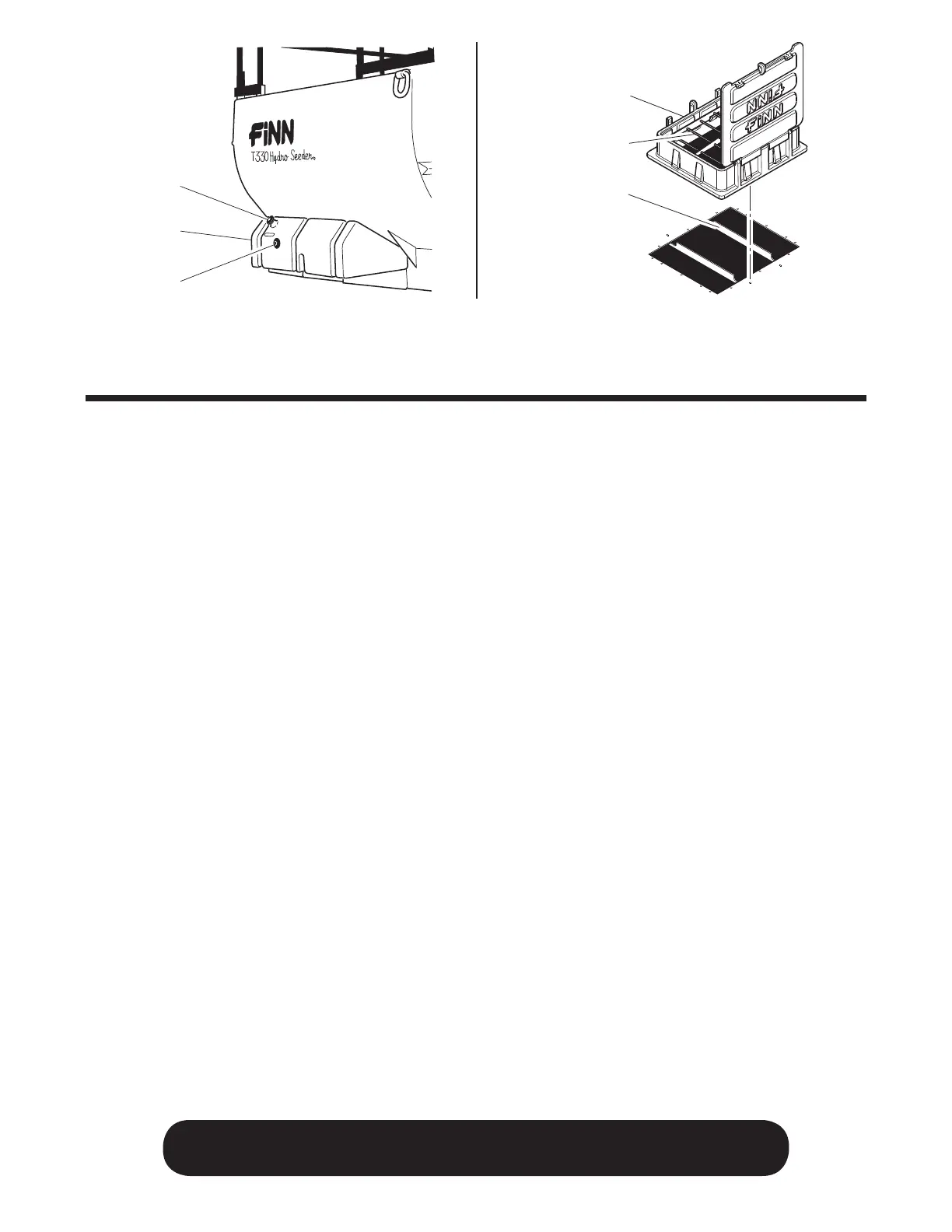

FUEL TANK
DETAIL
POLY HATCH
DETAIL
50
49
51
Continued . . .
