T280 / T330 / T400
MMA2017 Rev. D
76
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE
2 in. AGITATOR SHAFT
THROUGH BACK SIDE
APPLY (1) SOLID,
CONTINUOUS BEAD OF
SILICONE ADHESIVE
AROUND OUTER EDGE
ON THE INSIDE FACE OF
THE CLAMPING RING
BEFORE INSTALLATION.
NOTE:
TO TIGHTEN, TURN THE NUT – NOT THE BOLT.
TORQUE TO 25 lb–ft (34 N•m) – DO NOT OVER TORQUE.

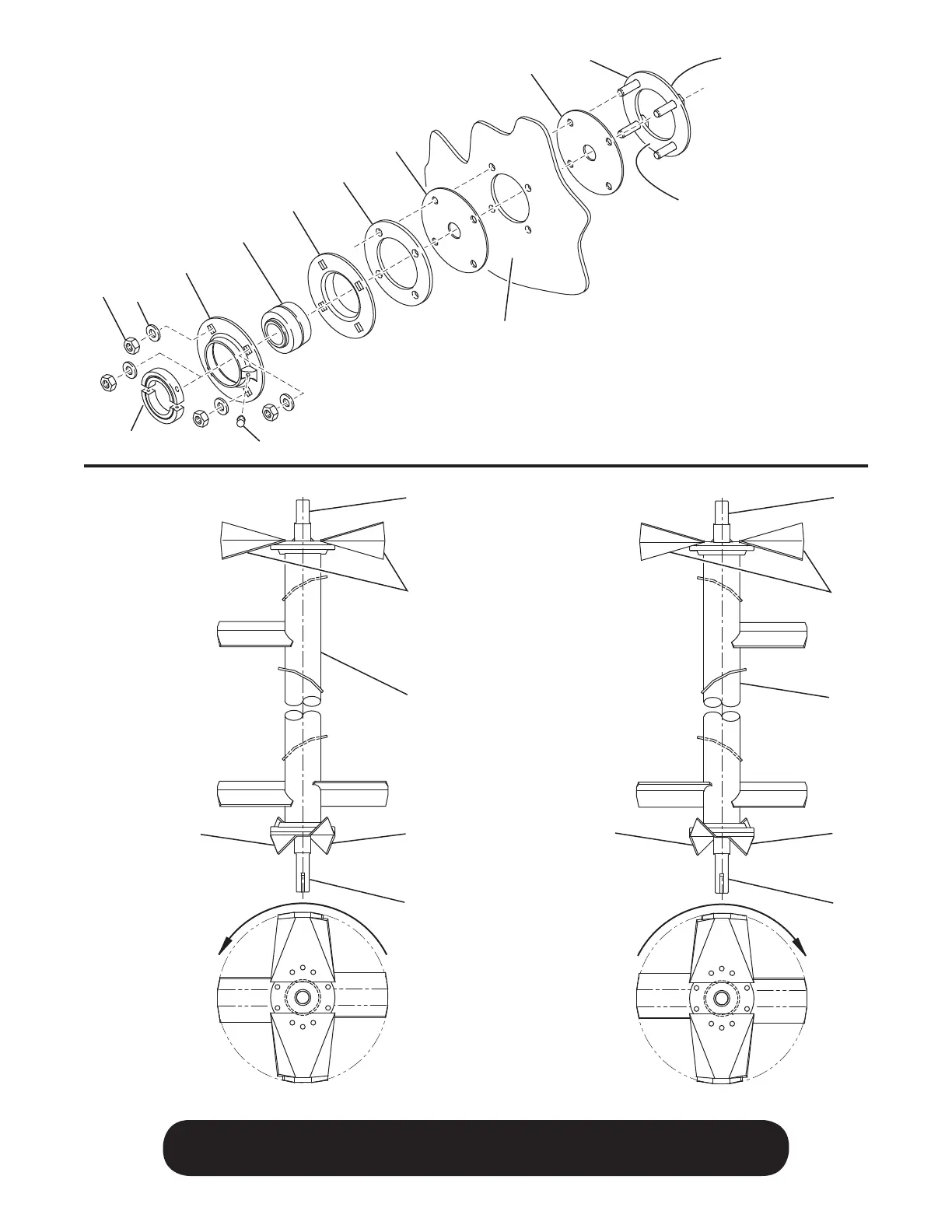

BEARING AND SEAL ASSEMBLY
NOTE:
ITEM #1 (BEARING AND SEAL ASSEMBLY)
INLUDES ITEMS #2 - 9.
AGITATOR ASSEMBLY
DRIVE END
LEFT-HAND AGITATOR RIGHT-HAND AGITATOR
NOTE:
ITEM #12 (LEFT-HAND
AGITATOR ASSEMBLY)
INLUDES ITEMS #13 - 17.
NOTE:
ITEM #18 (RIGHT-HAND
AGITATOR ASSEMBLY)
INLUDES ITEMS #19 - 23.
OUTSIDE
OF TANK
13
14
15
16
16
17
19
20
21
22
22
23
2
3
4
5
6
7
8
9
10
11
3
