Programmed Activation by FACP MS-9600, MS-9200UDLS and MS-9200UD
Message Assignment - Zone Specific
The FACP can be programmed to allow a specific addressable input device to generate one of five
messages over any speaker circuit. Any one of the five messages can be programmed to each of the
available zones (Zone 1 through Zone 99). In the following examples, assume that Zone 5 is pro-
grammed to Message 1, Zone 7 is programmed to Message 2, Zone 8 is programmed to Message 3,
and Zone 35 is not programmed to a message.
• if two devices are being programmed and the first addressable input device is programmed to
Zone 7 and Zone 35, and a second addressable input device is programmed to Zone 5 and Zone
35, activation of the first addressable input device (address 12 in the example below) will
cause Message 2 to be generated over speaker circuit 3. (Table D.5 on page 109). If the sec-
ond addressable device (address 20 in the example below) is also activated, Message 1 will
now be transmitted over speaker circuit 3 since Message 1 has a higher priority then Message
2.
Programming is accomplished in the same manner as previously described.
To Program one of five messages to a speaker zone, press the ENTER key at the FACP. The
following screen will be displayed:

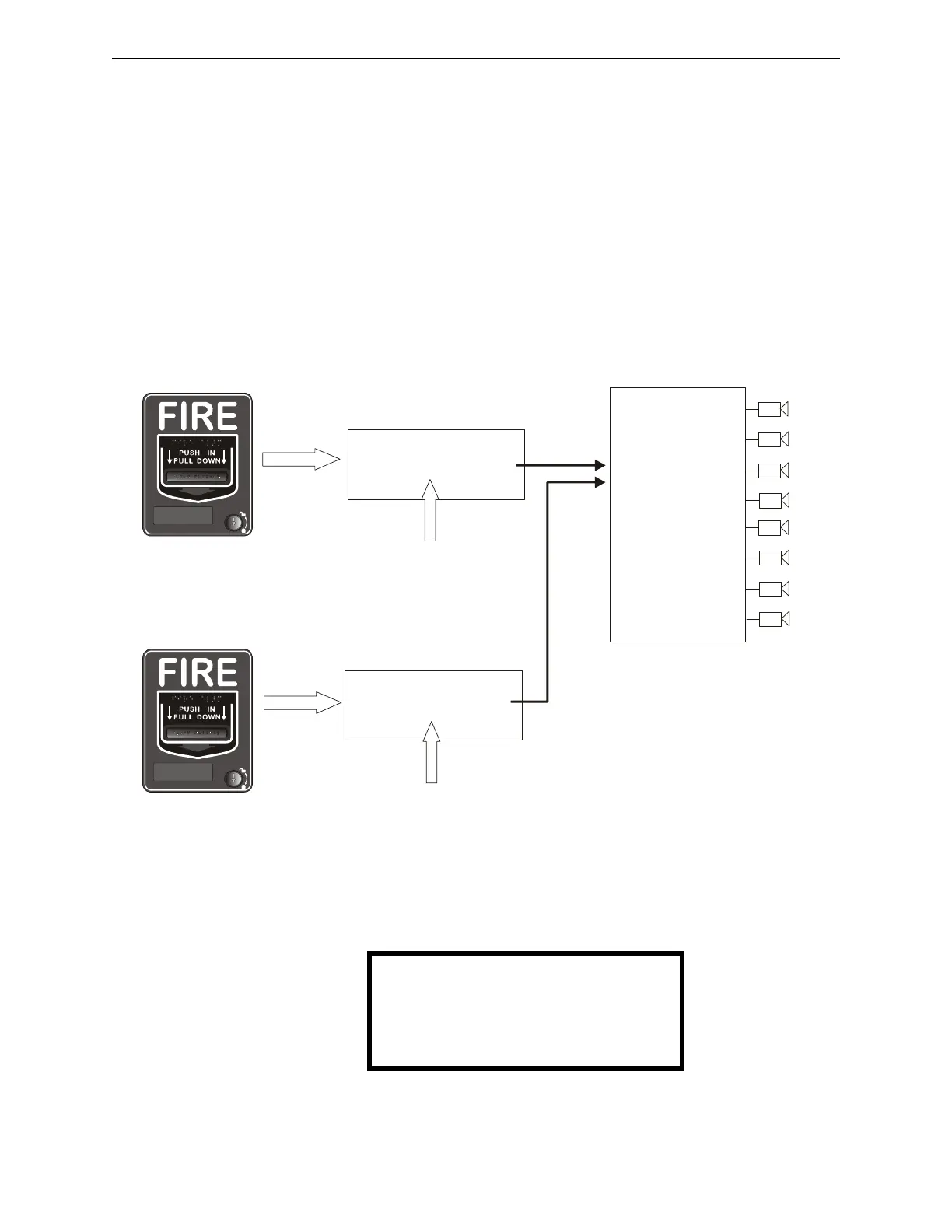

Zone 5 and Zone 35
Zone 7 and Zone 35
Addressable Pull Station
(address 12)
Message 1
(highest priority of the three )
programmed to
activate
Speaker Circuit 3
Addressable Pull Station
(address 20)
programmed to
Message 2
(2nd highest priority of the three)
activate
1=READ STATUS MODE
2=PROGRAMMING MODE
3=MANUAL DIAL MODE
To Next Page
