Programmed Activation by FACP MS-9200(E)
D.3.3 Wiring From ACC-25/50ZS or ACC-25/50ZST to MS-9200(E)
The MS-9200(E) FACP communicates with the ACC-25/50ZS or ACC-25/50ZST over the ACS
annunciator link. Wiring must be connected between the ACS Terminal TB5 on the MS-9200(E)
and ACS Terminal TB1 on the ACC-ZPMK Zone Page Module installed on the ACC-25/50ZS/T
panel.

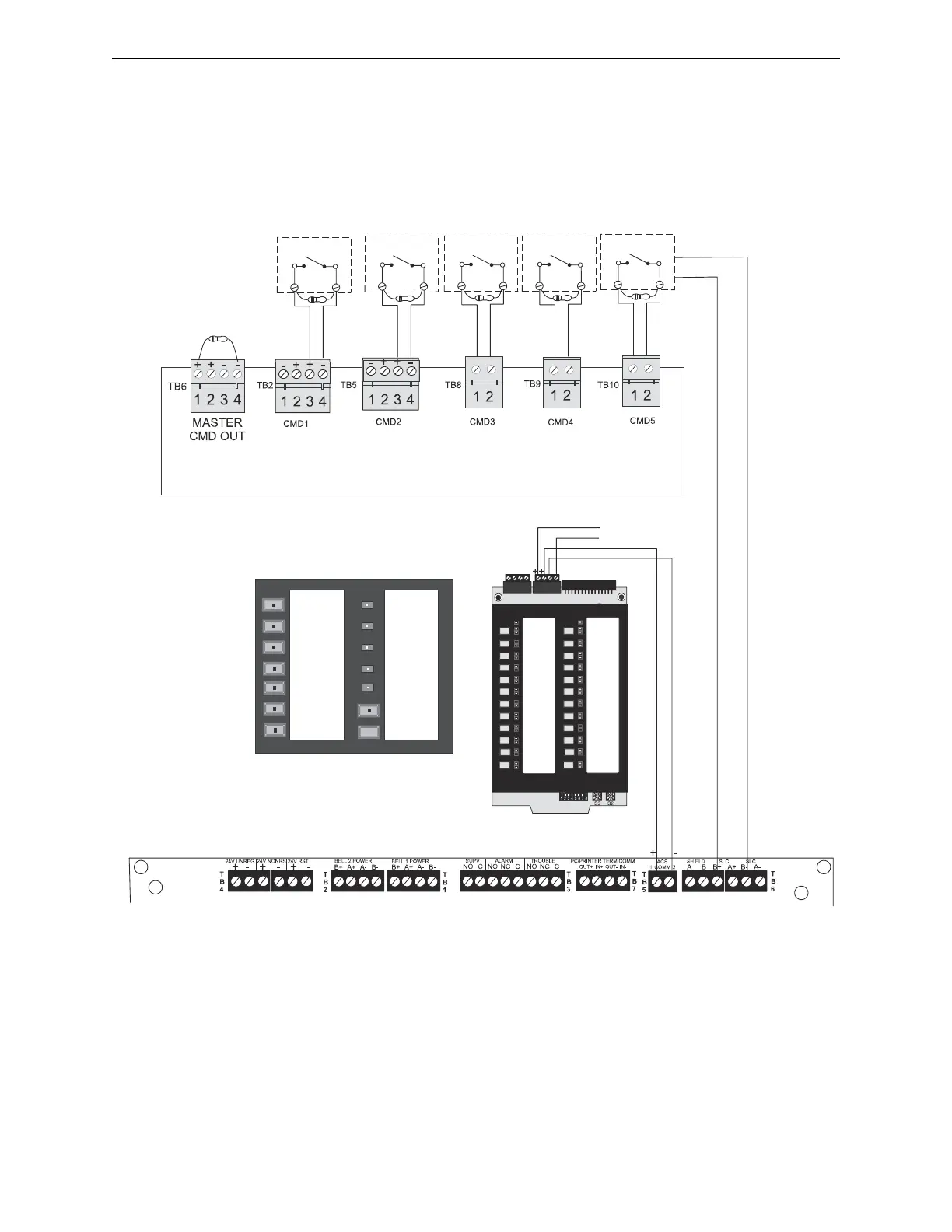

Figure D.5 ACS Connection for MS-9200(E) to ACC-ZPMK
to other ACS devices
located down stream
ACC-ZPMK
MS-9200(E)
ACC-25/50ZS/T
main circuit board
SLC Loop
TB5
ACS
Addressable Control Modules or Multimodule
Address 01
Set S2=1
Set S3=0
