16 Theater Cineplex Utilizing ACC-25/50ZS With ACC-25/50DAZS Application Examples
5.7 16 Theater Cineplex Utilizing ACC-25/50ZS With ACC-
25/50DAZS
In this application, the Fire Protection System consists of one ACC-25/50ZS with one ACC-
25/50DAZS, 16 zones and an addressable FACP. Each one of the 16 movie theaters is wired and
assigned as a speaker circuit. The FACP is programmed for Software Zone 33 for Theater 1
through Software Zone 49 for Theater 16. Software Zone 32 is programmed to activate all speaker
circuits (All-Call). In addition, the Fire Evacuation Message (Message #1) is entered into Software
Zones 32 - 49.
Automatic control by the FACP is provided through the ACS link to the ACC-25/50ZS. Manual
control is possible via the keypad in the ACC-25/50ZS. Control of Audio Zones 9 - 16 is sent
through the ACC Control Serial Link to the ACC-25/50DAZS. Alarm and Paging audio from the
ACC-25/50ZS is delivered to Audio Zones 9 - 16 (ACC-25/50DAZS) by way of the Audio Riser.
ACC-25/50ZS
ACC-25/50DAZS
25W Amp 25W Amp
6.25W
6.25W
6.25W6.25W6.25W6.25W6.25W6.25W
6.25W
6.25W6.25W
6.25W6.25W
6.25W
6.25W
6.25W
Audio Riser
SLC
To Detectors and/or Strobes
FACP
Splitter
25W Amp 25W Amp
Splitter
ACS or ANN Link
ACC Control Serial Link
(Zone 2)
Theatre #2
(Zone 3)
Theatre #3
(Zone 4)
Theatre #4
(Zone 5)
Theatre #5
(Zone 6)
Theatre #6
(Zone 7)
Theatre #7
(Zone 8)
Theatre #8
(Zone 16)
Theatre #16
(Zone 15)
Theatre #15
(Zone 14)
Theatre #14
(Zone 13)
Theatre #13
(Zone 12)
Theatre #12
(Zone 11)
Theatre #11
(Zone 10)
Theatre #10
(Zone 9)
Theatre #9
acc25dacineplex.wmf

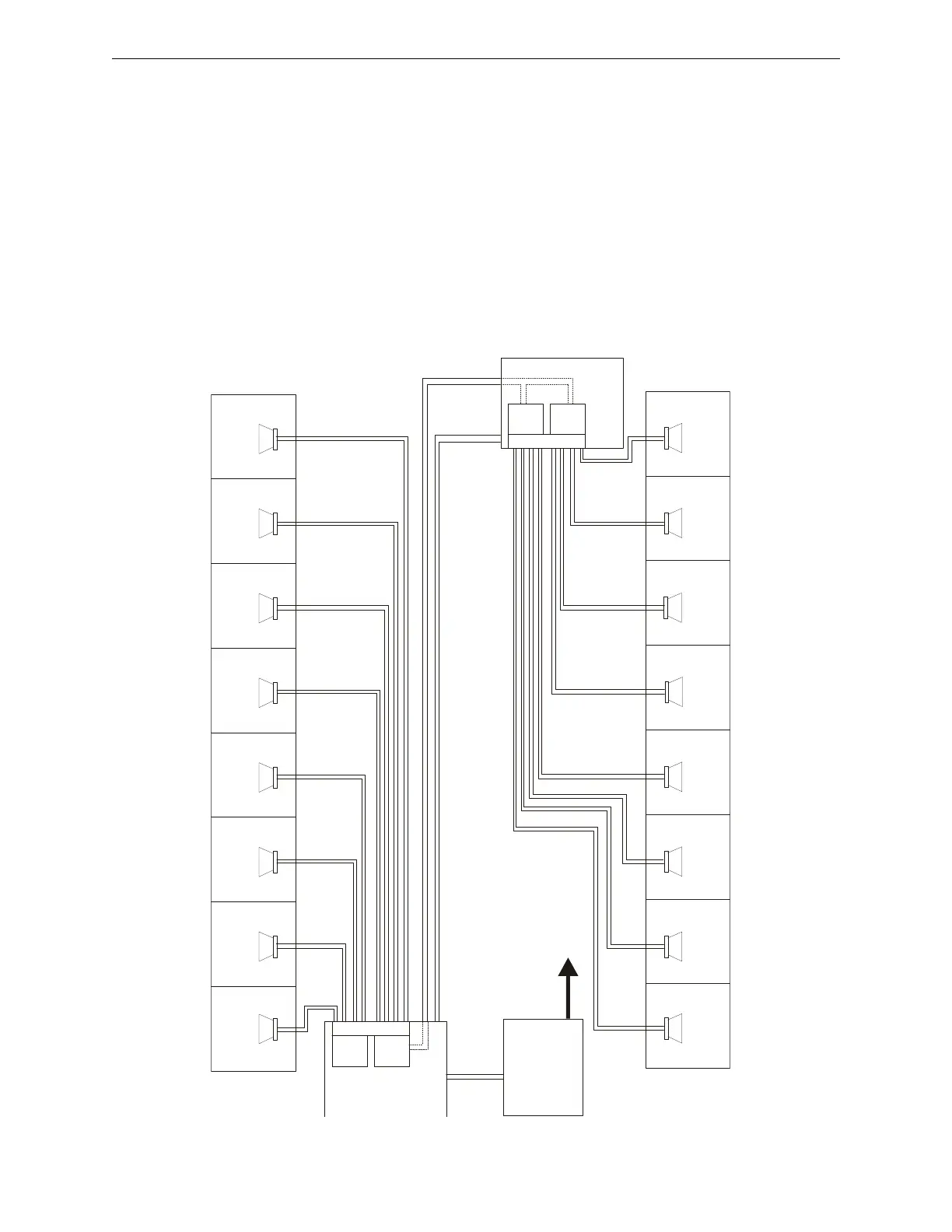

Figure 5.9 16 Theatre Cineplex
6.25W
(Zone 1)
Theatre #1
