Fire-Lite ACC-25 - D.4.4: Wiring from ACC-25;50 ZS or ACC-25;50 ZST to FACP

Audio Command Center Series Manual — P/N 51889:E1 6/8/2010 129
MS-5UD-3/7 and MS-10UD-3/7 Programmed Activation by FACP
D.4.4 Wiring From ACC-25/50ZS or ACC-25/50ZST to FACP
The FACP communicates with the ACC-25/50ZS/T over the ACS or ANN-BUS annunciator link.
Wiring must be connected between Terminal TB6 on the FACP and Terminal TB1 on the
ACC-ZPMK Zone Page Module installed on the ACC-25/50ZS/T panel.

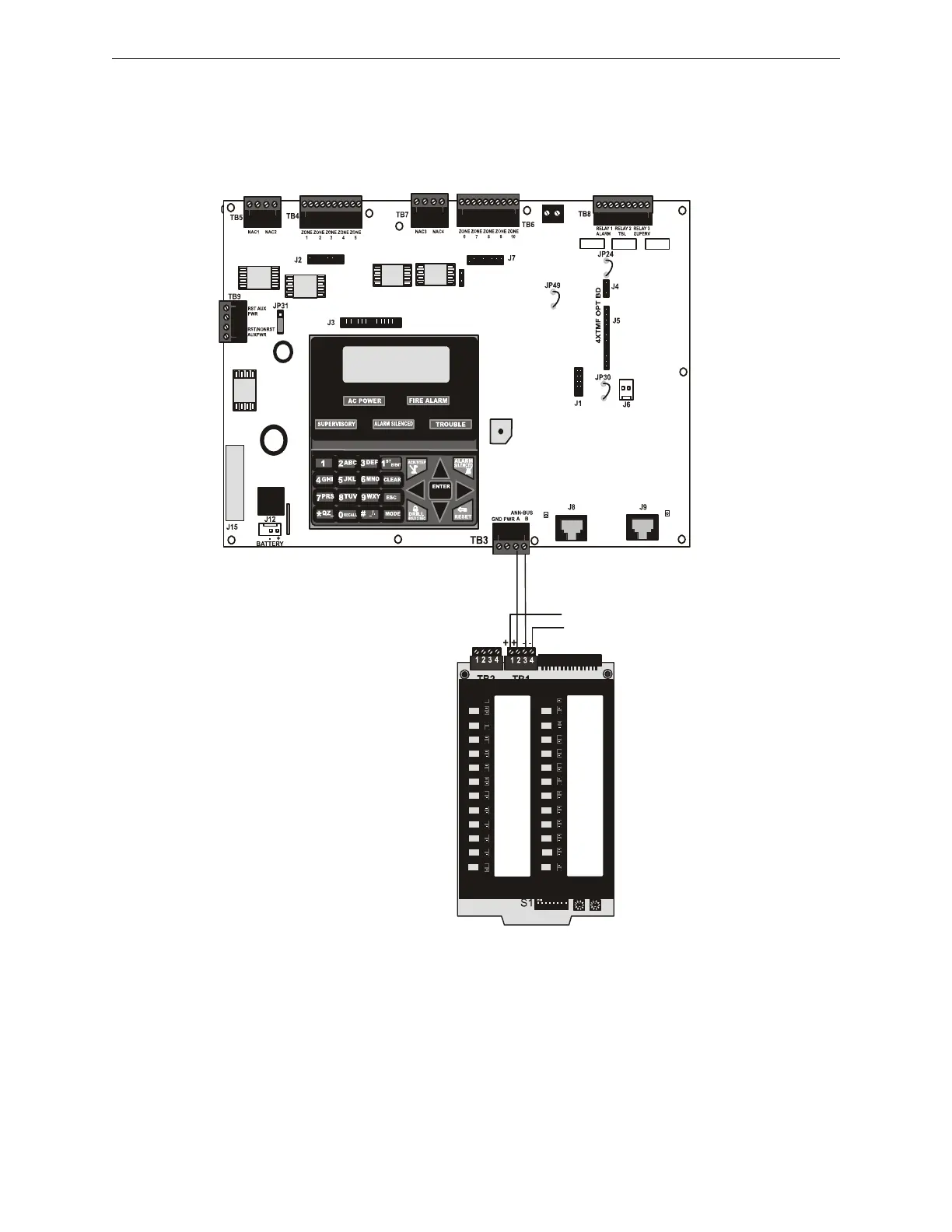

Figure D.6 Connection for MS-5UD-3/7 and MS-10UD-3/7 to ACC-ZPMK
FACP
ACC-ZPMK
