Section 7. RELAY OUTPUTS

Relay Device Basics

Relays are programmable switches that can be used to perform many different

functions. They can be used to turn lights on and off, control sounders, or for

status indications. In this system, each relay must be programmed as to how

to act (ACTION), when to activate (START), and when to deactivate (STOP).

Each of these is described below, and in the programming procedure for

✱

and

✱

81 interactive modes that are provided at the end of this section.

The control supports the following relay modules:

4204 Relay Module (4 relays).

4229 Zone Expander/Relay Module (2 relays).

The 4204 and 4229 relays provide Form C (normally open and normally

closed) contacts.

A 4204 cannot be used if a 4219 or 4229 is already being used.

✱

80 and

✱

81 interactive modes, a series of keypad prompts will request

entries for programming of the Relay outputs used in the system. Refer also to

“OUTPUT RELAYS WORKSHEET FOR FIELDS

✱

80 AND

✱

81” in the blank

programming form provided in the separate Programming Guide manual.

4204 and 4229 Relay Modules

4204/4229 Setup

1 2 3 4 5

OFF ON

@@@@@@@@e?

@@h?

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e

@@@@@@@@

?@@

?@@@@@@@@

?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@

@@g

@@@@@@@@

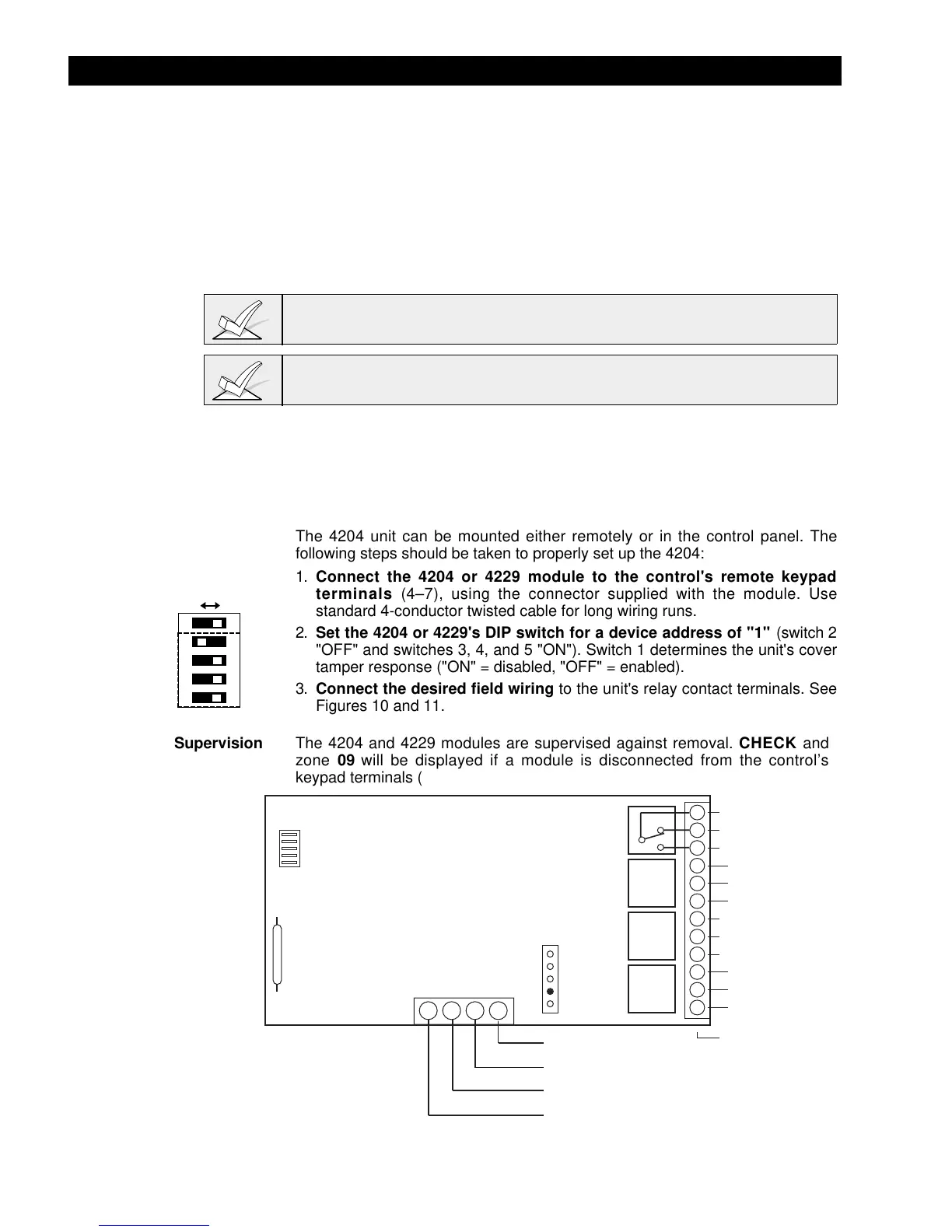

The 4204 unit can be mounted either remotely or in the control panel. The

following steps should be taken to properly set up the 4204:

1. Connect the 4204 or 4229 module to the control's remote keypad

terminals (4–7), using the connector supplied with the module. Use

standard 4-conductor twisted cable for long wiring runs.

2. Set the 4204 or 4229's DIP switch for a device address of "1" (switch 2

"OFF" and switches 3, 4, and 5 "ON"). Switch 1 determines the unit's cover

tamper response ("ON" = disabled, "OFF" = enabled).

3. Connect the desired field wiring to the unit's relay contact terminals. See

Figures 10 and 11.

Supervision The 4204 and 4229 modules are supervised against removal. CHECK and

zone 09 will be displayed if a module is disconnected from the control’s

keypad terminals (4, 5, 6, & 7).

13 14 15 16

DIP SWITCH

FOR SETTING DEVICE ADDRESS

AND ENABLING/DISABLING TAMPER

COVER TAMPER (REED) SWITCH

TB1

4204

TB2

4-PIN CONSOLE PLUG

121110987654321

RELAY

RELAY 4

TYPICAL

(SHOWN "OFF")

EITHER OR BOTH

CAN BE USED

DATA IN

FROM CONTROL

(–) GROUND

DATA OUT

TO CONTROL

(+) 12V

YEL

BLK

GRN

RED

4204

Figure 10. 4204 Connections to Control
