– 57 –
Section 11. LONG RANGE RADIO
General Information
If output to long range radio is selected, all messages that are programmed to
go to the primary telephone line receiver will also be sent to the Ademco
7720PLUS or 7820 long range radio. These messages will be in Contact ID
format (not affected by entry in field
46).
The data line is supervised, as well as certain functions in the radio. If
communication is lost or a trouble develops, a message will be attempted to be
sent via both radio and telephone to the central station.
For complete information, see the manual that accompanies the radio.
Connection
Connect the data in/data out terminals and voltage input terminals of the Long
Range Radio to the control's keypad connection points, terminals 4, 5, 6, and 7
as shown below.
7720 PLUS/7820
LONG RANGE RADIO
BLACK
RED
GREEN
YELLOW
4
5
6
7
CONTROL
TERMINALS

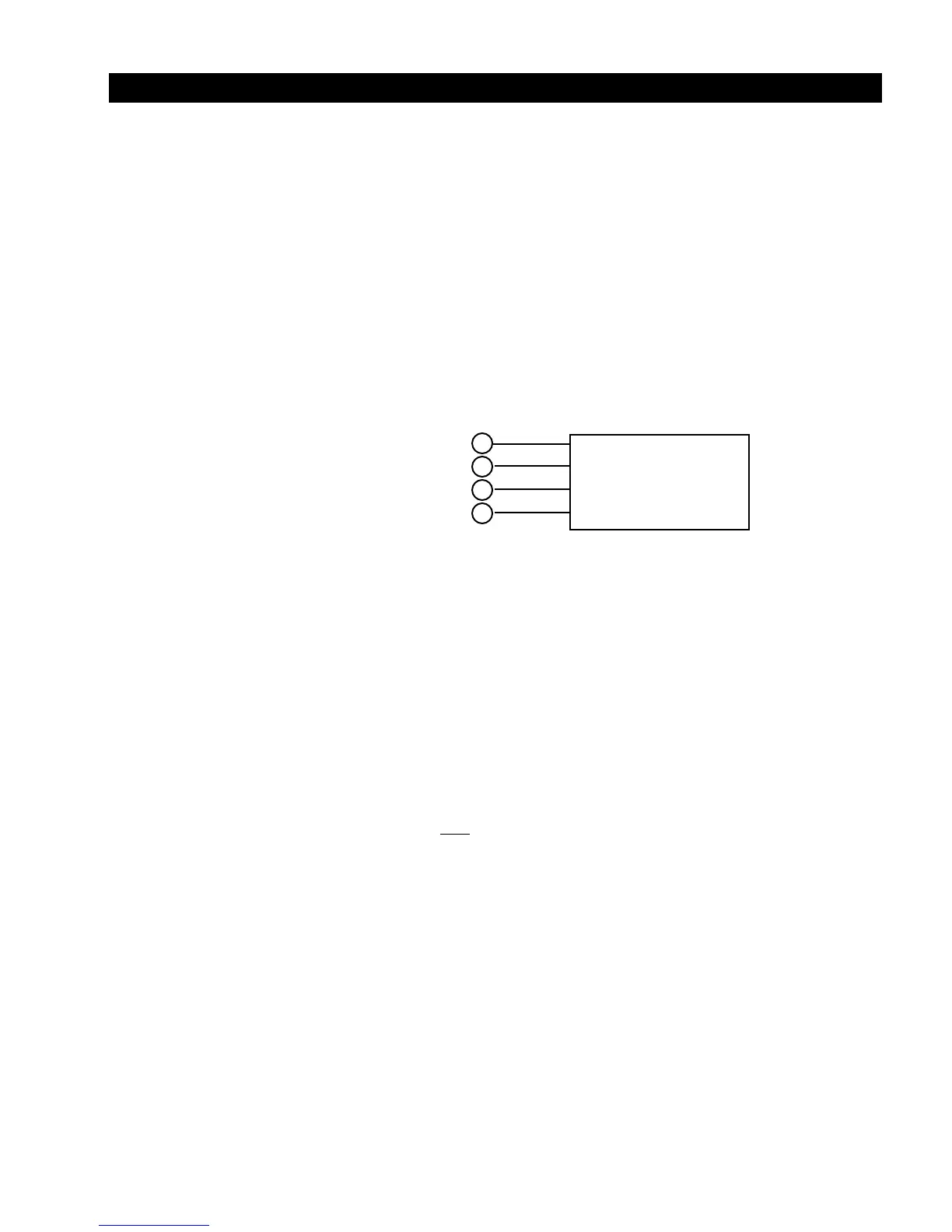

Figure 14. Long Range Radio Connections
Programming for Long Range Radio
1. With at least one keypad connected to the keypad terminals on the control,
power up the system temporarily. If you had previously connected the AC
transformer to the control panel, you need only plug in the transformer (to
120VAC outlet) to power up the system.
2. Enter the programming mode by keying the following on the Alpha keypad:
INSTALLER code (4 1 1 1) + 8 + 0.
3. Press
27. OUTPUT TO LONG RANGE RADIO
Enter 1 when using a Long Range Radio; enter 0 if not (default is 0).
If yes is selected, any dialer report programmed to report to the PRIMARY
phone number (in field
47) will also be sent via long range radio.
All dialer and long range radio reports will be in Contact ID format
(regardless of the selection made in field
46). Full Trouble and Restore
messages are sent.
5. Program the long range radio for device address “3” on the keypad lines.
6. Exit the programming mode by keying
99.
