BRN
12345678
9 101112
1
2
3
4
GRN
DATA OUT
TO CONTROL
BLK
(–) GROUND
RED
(+) 12V
YEL
DATA IN
FROM
CONTROL
4
3
2
1
TERMINATE EACH
PROGRAMMED ZONE
WITH 1000 OHM (1K)
END-OF-LINE RESISTOR
(EACH ZONE'S MAX.
LOOP RESISTANCE:
300 OHMS + E.O.L.)
➞
ZONES:
A B C D E F G H
1K
DIP SWITCH
FOR SETTING ADDRESS
AND ZONE “A” RESPONSE
➞
REED
(TAMPER)
SWITCH
➞
TAMPER JUMPER POSITION
4229 IN CABINET
(NOT TAMPERED)
4229 REMOTE
(TAMPER PROTECTED)
TB1
4229
TB2
4-PIN CONSOLE PLUG
➞
EITHER OR BOTH CAN BE USED
➞
➞
WHT
GRY
VIO
BLK
YEL
ORG
NO
NC
C
GND
NO
NC
C
RLY
2
RLY
1
RELAYS
"OFF"
RELAY
CONNECTOR
NO C NC
▲
▲
{
{
{
➞
RELAY
2
}
}
RELAY
1
TERMINALS ON
CONTROL PANEL
(TERM 6)
(TERM 4)
(TERM 5)
(TERM 7)
4229

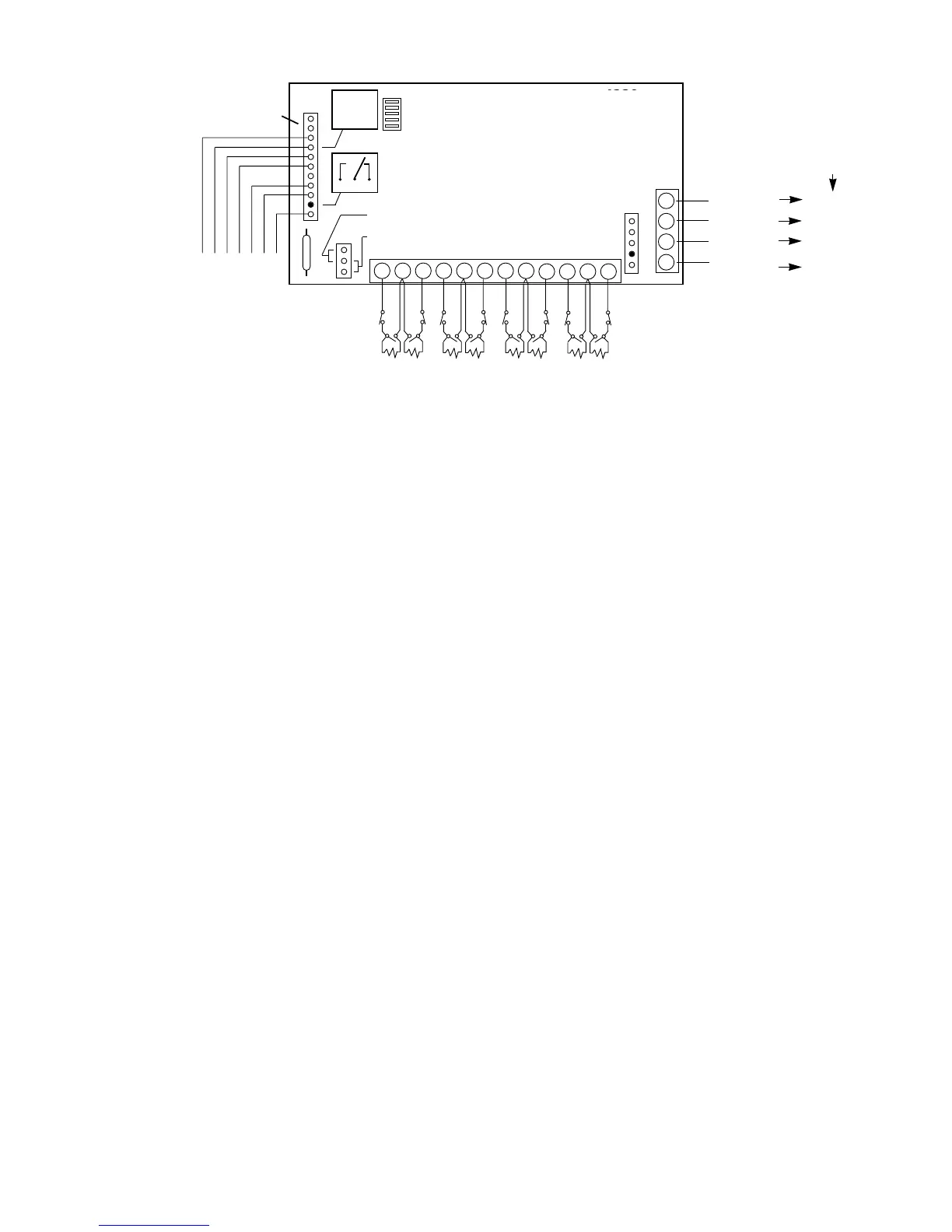

Figure 11. 4229 Connections to Control
Programming Options Defined
The following will help you understand the programming of OUTPUT RELAYS
when using
✱
80 and
✱
81 interactive menu modes. The options used to start
and stop relays are described below, followed by the actual screen prompts
and available entries.
The letter(s) in parentheses after each function described below, such as (A)
after ACTION, are those that appear in the various summary displays of
programmed data during programming.
ACTION (A) The "ACTION" of the relay is how the relay will respond
when it is activated by the "START" programming. You may
want the relay to activate momentarily, to pulse on and off
continuously, or to remain activated until some other event
occurs to stop it. There are four different choices of actions:
• ACTIVATE for 2 SECONDS and then reset.
• ACTIVATE and REMAIN ACTIVATED until stopped by
some other event.
• PULSE ON and OFF until stopped by some other event.
• NOT USED when the relay is not used.
START (STT) The "START" programming determines when and under what
conditions the relay will be activated. The following START
options are available
:
A) 1. EVENT (EV) is the condition (Alarm, Fault, Trouble) that must
occur to a zone or group of zones (zone list) in order to
activate the relay. These conditions apply
only
when a zone
list is used. The different choices for "EVENT" are listed
below and in the “Programming Output Relays” section that
follows.
• ALARM Relay action begins upon any alarm in an
assigned zone in the zone list.
• FAULT Relay action begins upon any opening or
short in an assigned zone in the zone list.
• TROUBLE Relay action begins upon any trouble
condition in an assigned zone in the zone list.
• NOT USED Relay action is not dependent upon one of
the above events.
To Next Page
