– 13 –
4. Insert the top of the control's board into the slot in the clips and position
two
long
(red) clips at the lower edge of the board (see Detail C).
5. Swing this board into place and secure it with two additional screws.
6. Insert grounding lugs (supplied with the receiver) through the top of the
cabinet into the
left-hand
terminals of the antenna blocks (at the upper
edge of the receiver board) and secure them to the cabinet top with the
screws provided, as shown in Detail D.
7. Insert the receiver's antennas through the top of the cabinet, into the
blocks'
right-hand
terminals, and tighten the screws.
8. Setup and wiring of the receiver is contained in the WIRELESS (RF)
ZONE EXPANSION (5800 RF SYSTEMS) section.

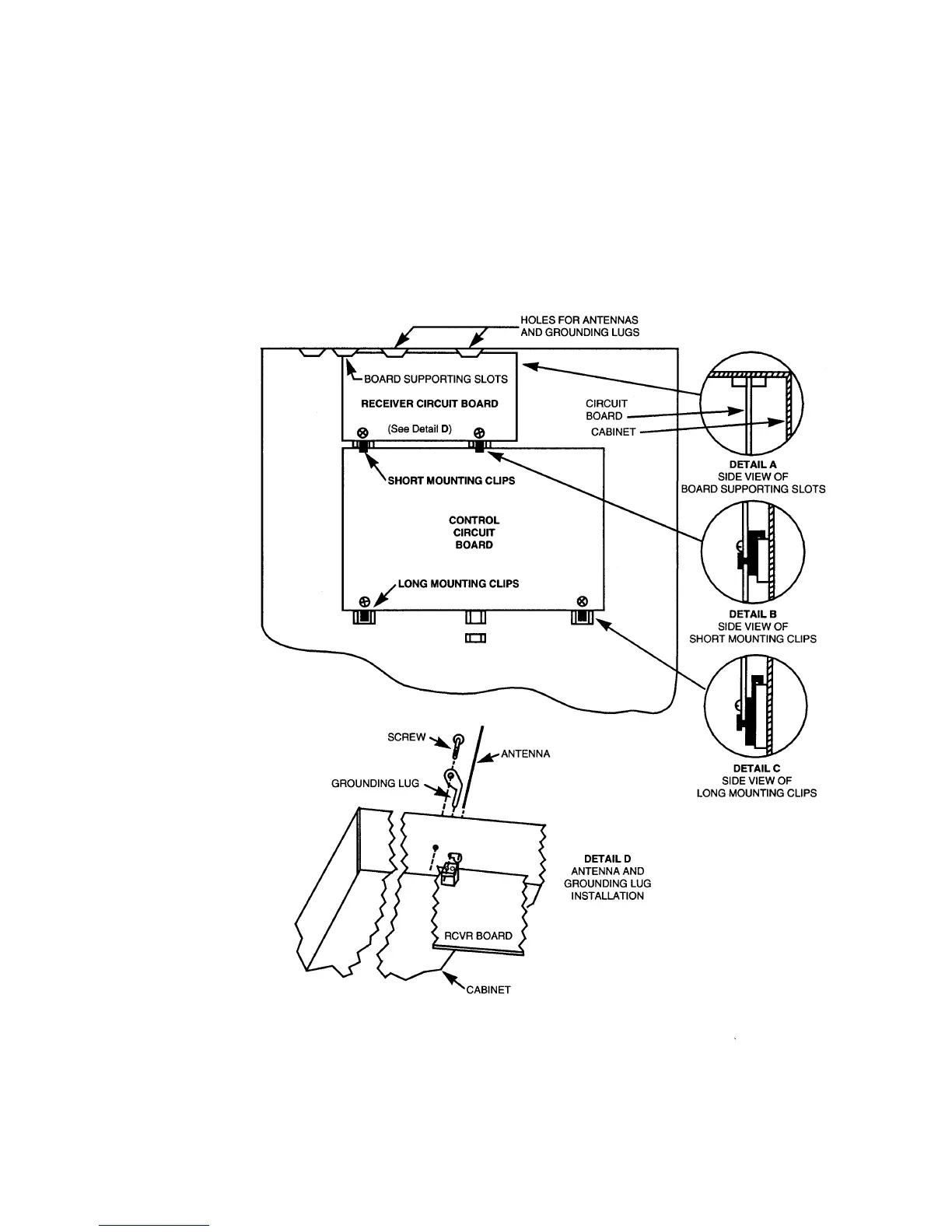

Figure 3. Installing The PC Board And RF Receiver (if used) Together In The Cabinet
