Instruction Manual
D103176X012
Detailed Setup and Calibration
June 2017
22
A6534

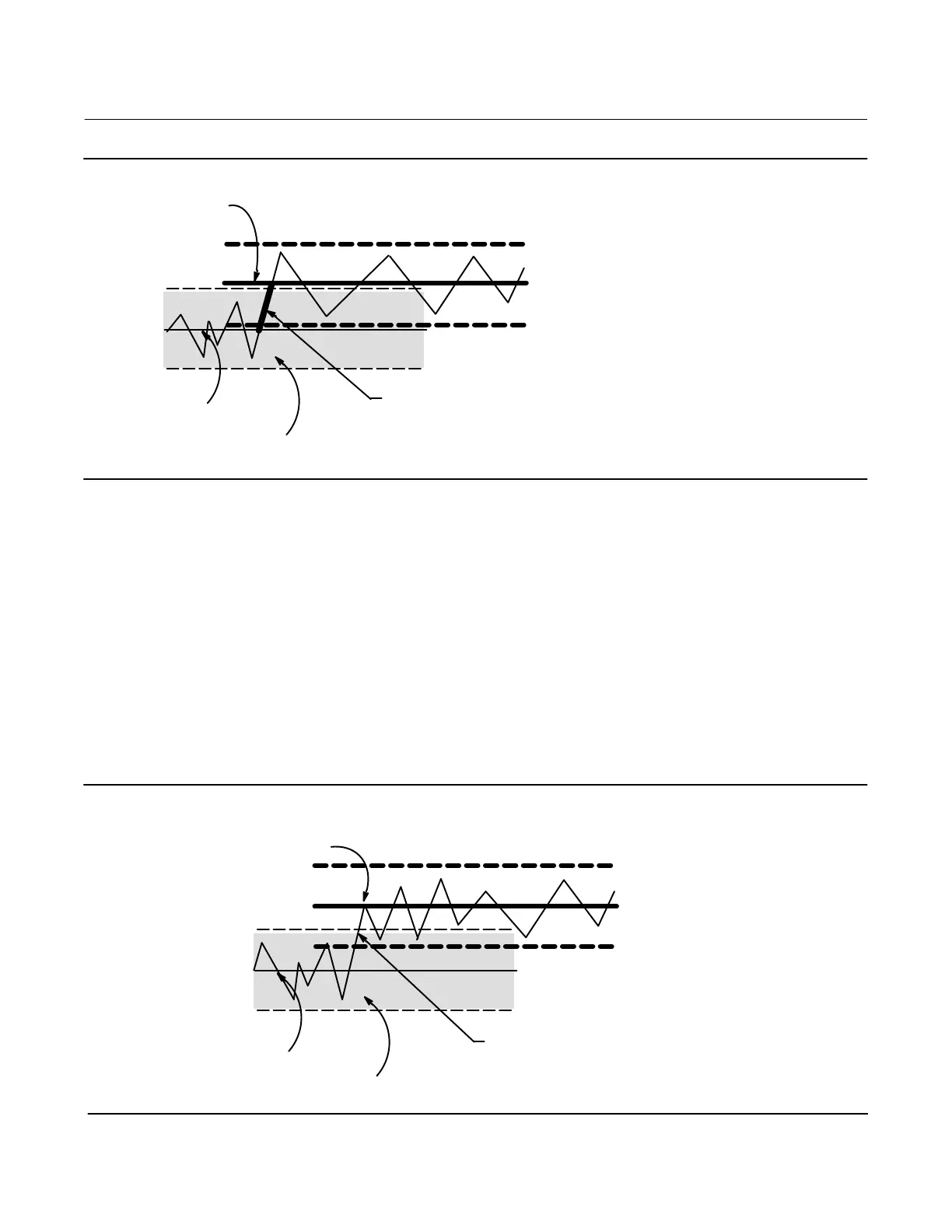

Figure 2‐4. Travel Accumulator Deadband (set at 10%)
DEADBAND (+/- 5%)
DEADBAND EXCEEDED,
NEW REFERENCE POINT
ESTABLISHED
THIS AMOUNT OF CHANGE IS
ADDED TO THE TRAVEL
ACCUMULATOR.
DEADBAND REFERENCE POINT
Cycle Counter Alert
Follow the prompts on the Field Communicator to set the following cycle counter alerts:
D Cycl Cnt Alrt Enab—Yes or No. Cycle Counter Alert Enable activates checking of the difference between the Cycle
Counter and the Cycle Counter Alert point. The Cycle Counter Alert is set when the value exceeds the Cycle Counter
Alert point. It is cleared after you reset the Cycle Counter to a value less than the alert point.
D Cycl Cnt Alrt Pt—Cycle Counter Alert Point is the value of the Cycle Counter, in cycles, which, when exceeded, sets the
Cycle Counter Alert.
D Cycle Count DB—Cycle Counter Deadband is the area around the travel reference point, in percent (%) of ranged
travel, that was established at the last increment of the Cycle Counter. This area must be exceeded before a change
in travel direction can be counted as a cycle. See figure 2‐5.
A6533-1
Figure 2‐5. Cycle Counter Deadband (set at 10%)
DEADBAND (+/- 5%)
DEADBAND EXCEEDED, AND DIRECTION
CHANGED, NEW REFERENCE POINT
ESTABLISHED
POINT AT WHICH
CYCLE IS COUNTED.
DEADBAND REFERENCE POINT
