FT-112(D) Panel Weighing Indicator, Technical Manual, Rev.1.0.0, May 2019 Page 129 of 170
14.1.2 GSD Configuration
Profibus data consist of 2x Input-2 words and 2x Output-2 words.
The GSD file is available in on internet www.flintec.com..

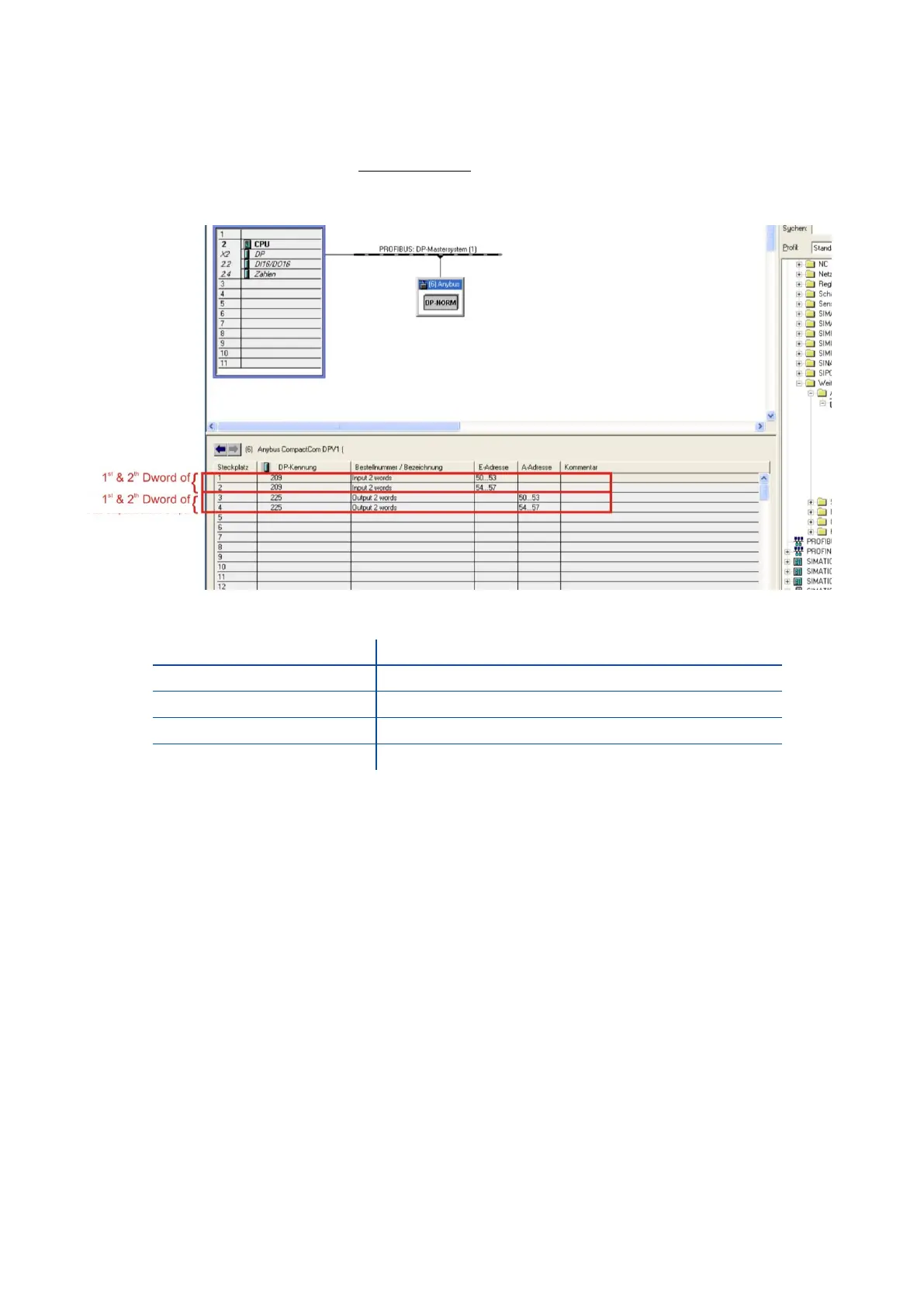

GSD configuration for PLC programmers is shown in Figure 14.1.
Figure 14.1 - GSD Configuration
GSD Configuration
Description
Input 2 words
1
st
Dword (FT-112(D) Panel Output to PLC Input)
Input 2 words
2
nd
Dword (FT-112(D) Panel Output to PLC Input)
Output 2 words
1
st
Dword (PLC Output to FT-112(D) Panel Input)
Output 2 words
2
nd
Dword (PLC Output to FT-112(D) Panel Input)
14.1.3 Profibus DP Data Structure
For the Data Structure for Profibus see Appendix 1, page 146
