EtherNet/IP
EtherNet/IP interface of the weighing instrument can be done via hub switch or serial bus over two EtherNet/IP
port.
1. Serial bus connection of instruments. You may connect instruments serial to your EtherNet/IP bus via
two ports.
2. Star connection. If you connect the instrument to your PLC via hub switch, you can use P1 or P2 port
on the instrument. You may change the port, if there is any malfunction on port in usage.
The EtherNet/IP interface supports 10/100Mbit, full or half duplex operation.
EDS file for two port EtherNet/IP is available on internet www.flintec.com

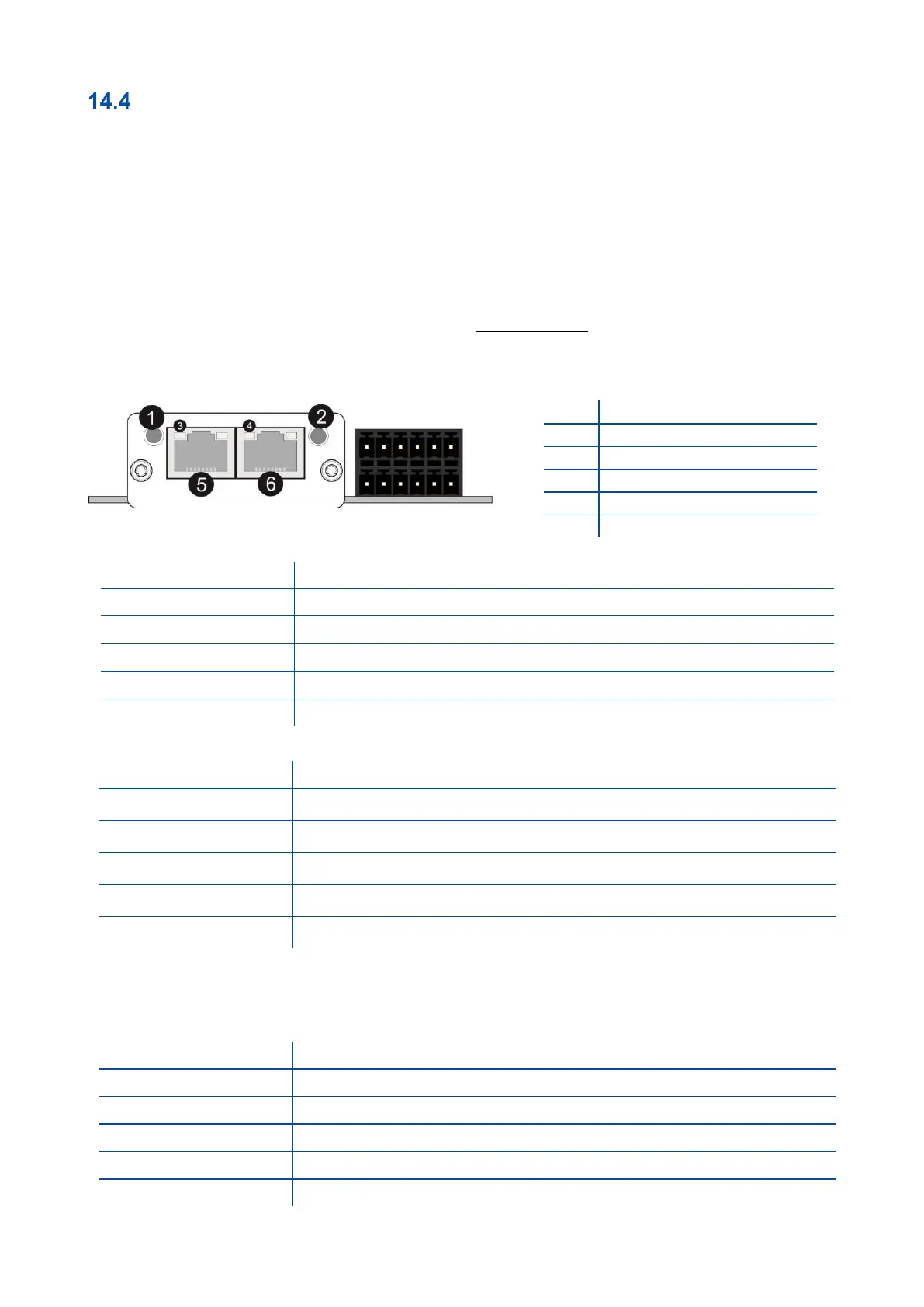

There are 4 announcement LEDs on the instrument to indicate the interface status as shown below.
(A) Network Status LED
LED State
Description
Off
No IP address
Green
Online, one or more connections established (CIP Class 1 or 3)
Green, flashing
Online, no connections established
Red
Duplicate IP address, FATAL error
Red, flashing
One or more connections timed out (CIP Class 1 or 3)
( B ) Module Status LED
LED State
Description
Off
No power
Green
Controlled by a scanner in run state
Green, flashing
Not configured, or scanner in idle state
Red
Major fault (EXCEPTION state, FATAL error etc.)
Red, flashing
Recoverable fault(s)
In the case of red LED warning, check cabling, configuration, IP address and device name. Power off the
instrument and reenergize the instrument 30 seconds later.
LINK/Activity LED
LED State
Description
Off
No link, no activity
Green
Link (100 Mbit/s) established
Green, flickering
Activity (100 Mbit/s)
Yellow
Link (10 Mbit/s) established
Yellow, flickering
Activity (10 Mbit/s)
1
(A) Network Status LED
2
(B) Module Status LED
3
Link/Activity LED (port 1)
4
Link/Activity LED (port 2)
5
P1 interface (port 1)
6
P2 interface (port 2)
