14.4.1 Data Format
Data format of weight value can be programmable for Floating point (IEEE 754) or Integer. Refer to parameter
[ 191 ].
14.4.2 EtherNet/IP Parameters
Ethernet parameters can be adjusted by keys in programming mode. Refer to parameter block [19-].
Additionally, Ethernet parameters can be set up by Indface2x PC software over Local Network Area or by
Flintec´s set up PC software. Both software are available on www.flintec.com .
14.4.3 EDS Configuration
EtherNet/IP data structures consist of 2 pcs Input-2 words and 2 pcs Output-2 words. EDS configuration for
PLC programmers is shown in Figure 14.5 and Figure 14.6.

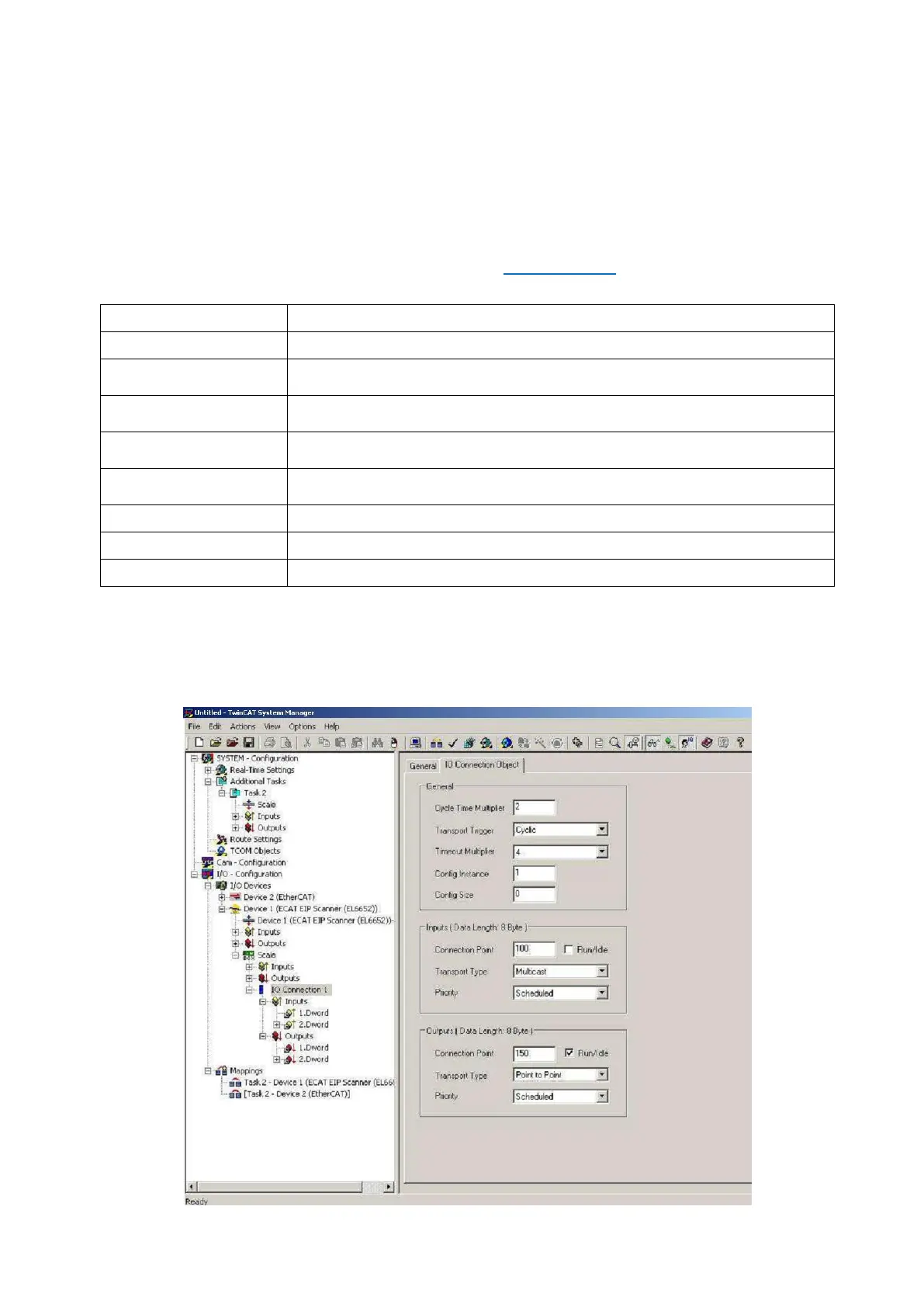

Figure 14.5 – Configuration of module properties without EDS file
Parameters
Descriptions
Host Name
Device name of the instrument.
DHCP
Dynamic Host Configuration Protocol automates network parameters if it is
enabled.
IP Address
If DHCP is disabled, obtain IP address manually.
Refer to parameter 192.
Gateway
If DHCP is disabled, obtain default gateway manually.
Refer to parameter 195.
Subnet Mask
If DHCP is disabled, obtain subnet mask manually.
Refer to parameter 194.
Primary DNS
If DHCP is disabled, obtain primary DNS manually.
Secondary DNS
If DHCP is disabled, obtain secondary DNS manually.
Password
Default password is 123456.
