27.3.8.3 Commented infrared images

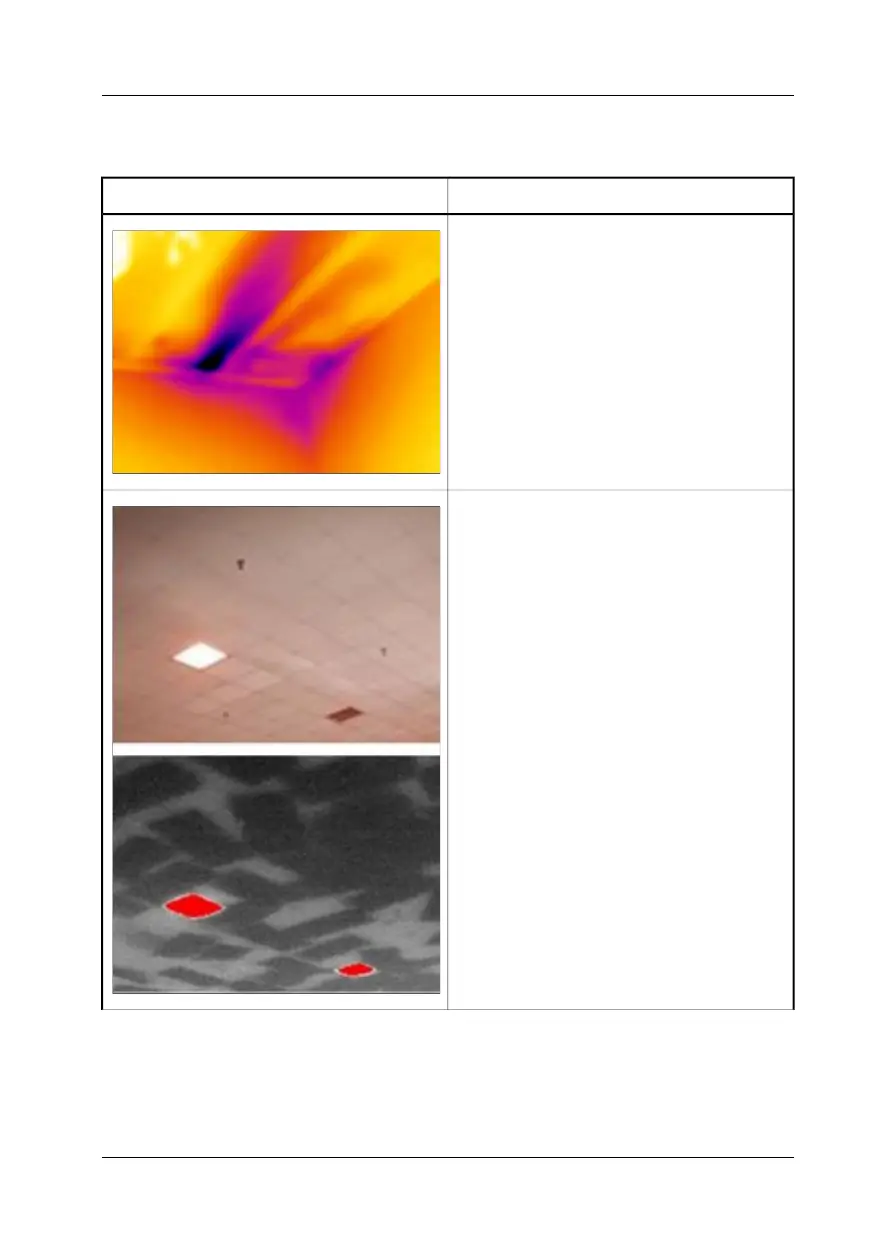

This section includes a few typical infrared images of insulation deficiencies.
CommentInfrared image
Insulation deficiencies in an intermediate floor
structure. The deficiency may be due to either
missing insulation batts or improperly installed in-
sulations batts (air pockets).
10553303;a1
Improperly installed fiberglass batts in a suspend-
ed ceiling.
10553403;a1
Publ. No. T559597 Rev. a554 – ENGLISH (EN) – September 27, 2011 105
27 – Introduction to building thermography
